Parking Assist Distance Sensor: Service and Repair

PARKING AID SENSOR







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTE: The rear bumper cover removal is only necessary for access to the outer parking aid sensors. The inner parking aid sensors do not require rear bumper cover removal for access.

Remove the rear bumper cover.

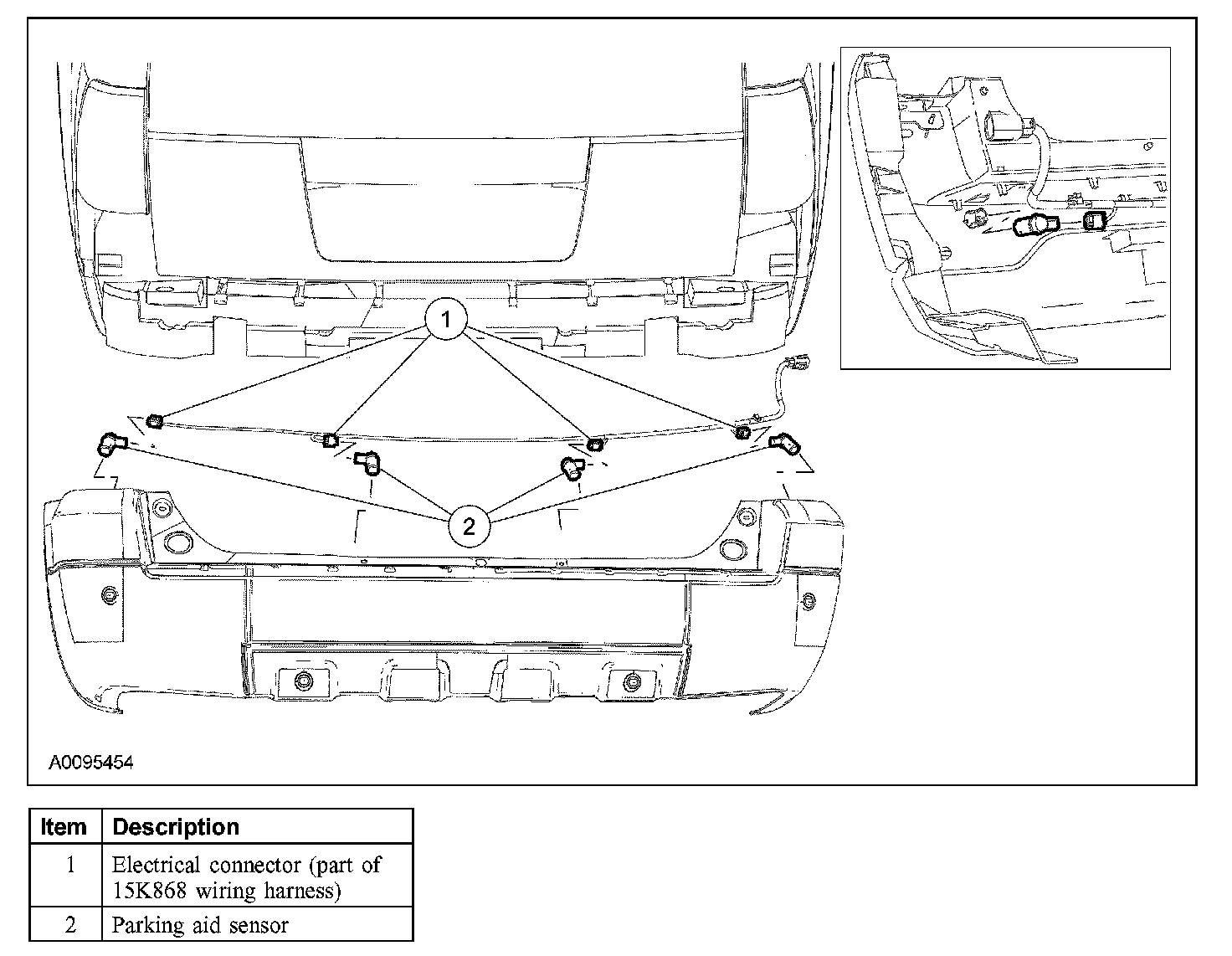

3. Press the retaining tabs and remove the parking aid sensor.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
