Antenna, Navigation: Service and Repair

GLOBAL POSITIONING SYSTEM (GPS) ANTENNA







Removal and Installation
1. Disconnect the battery.
2. Remove the audio unit.

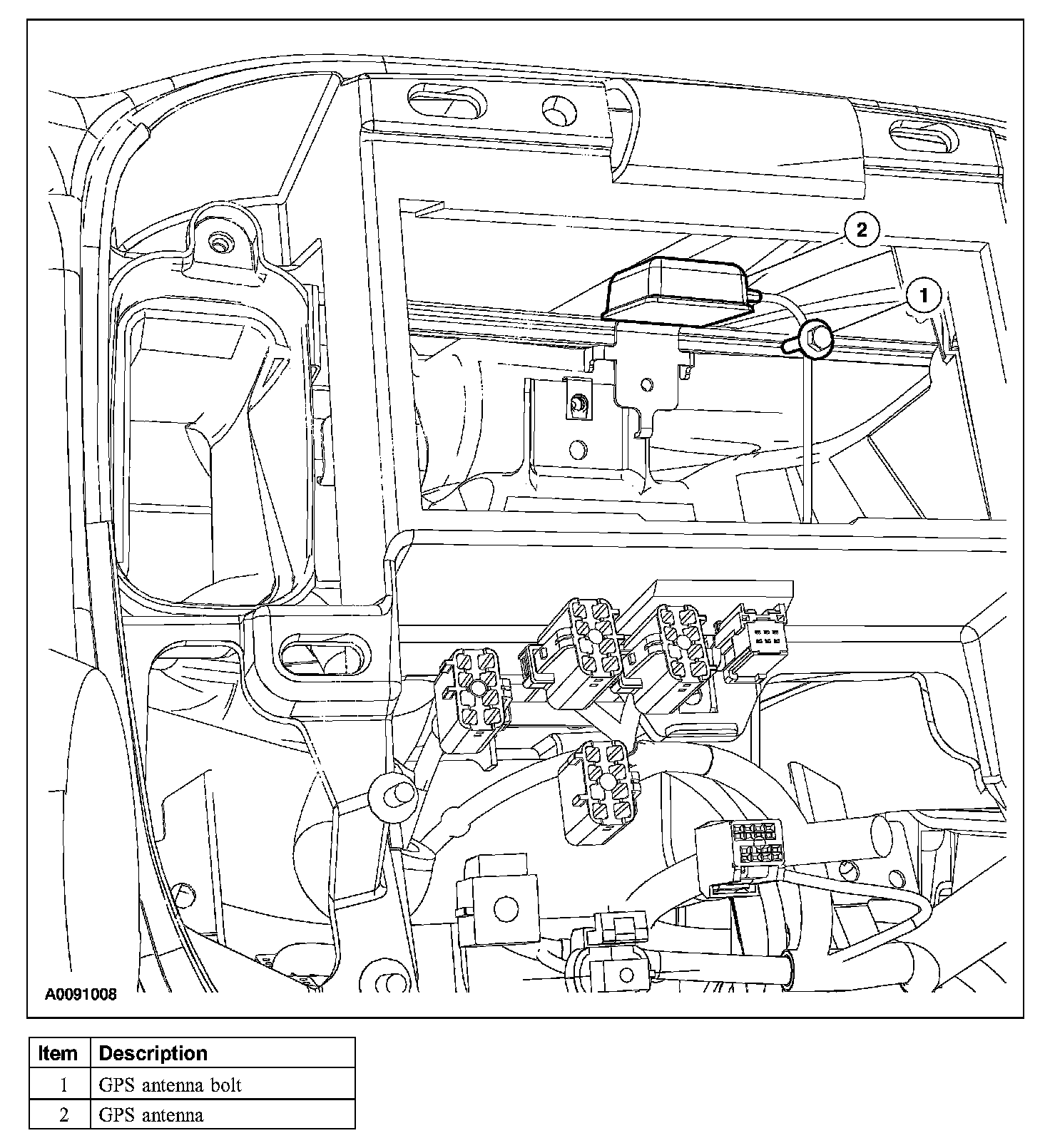

3. Remove the GPS antenna bolt and the GPS antenna.
4. To install, reverse the removal procedure.
