N0ZYC Attic (V1AT):

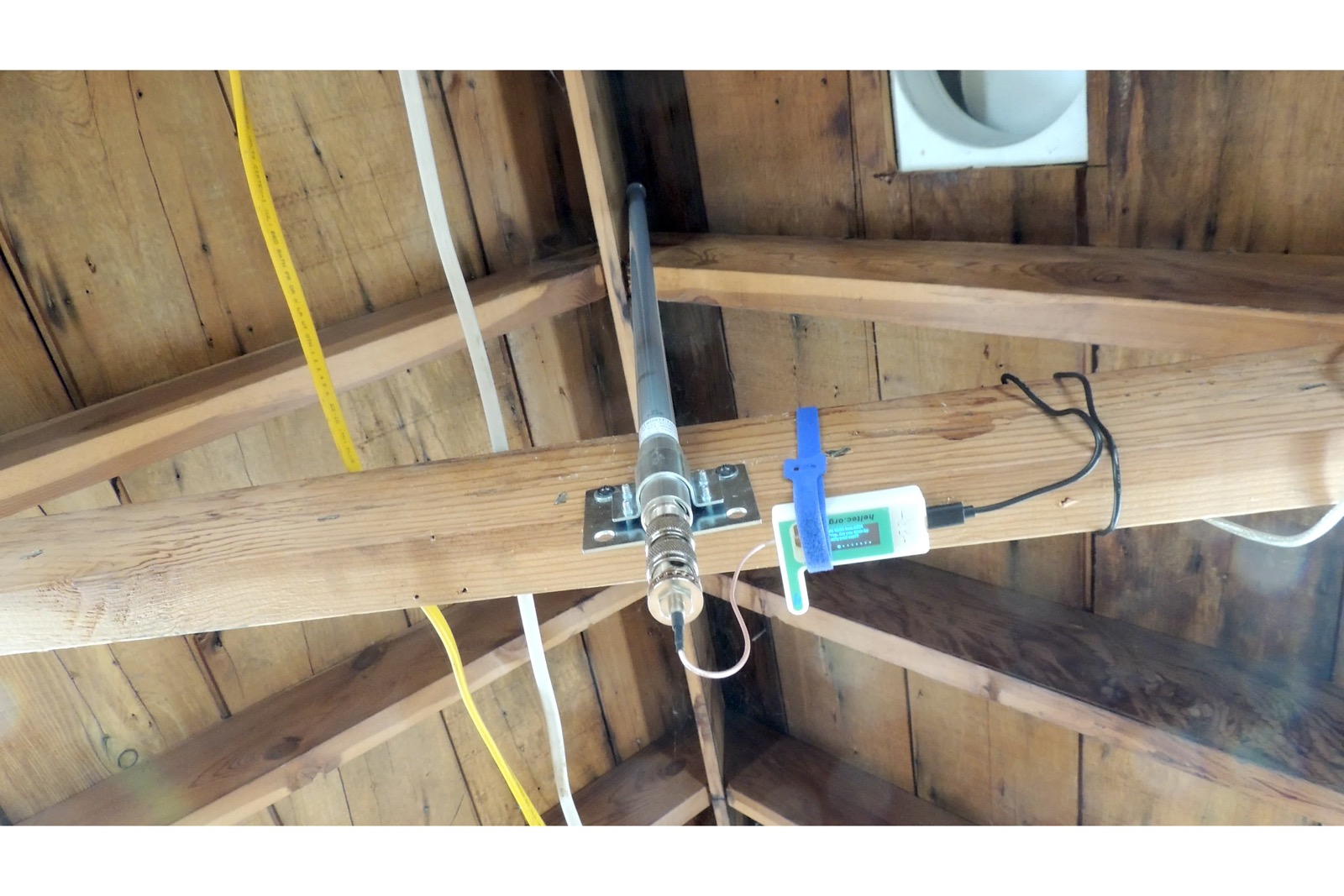

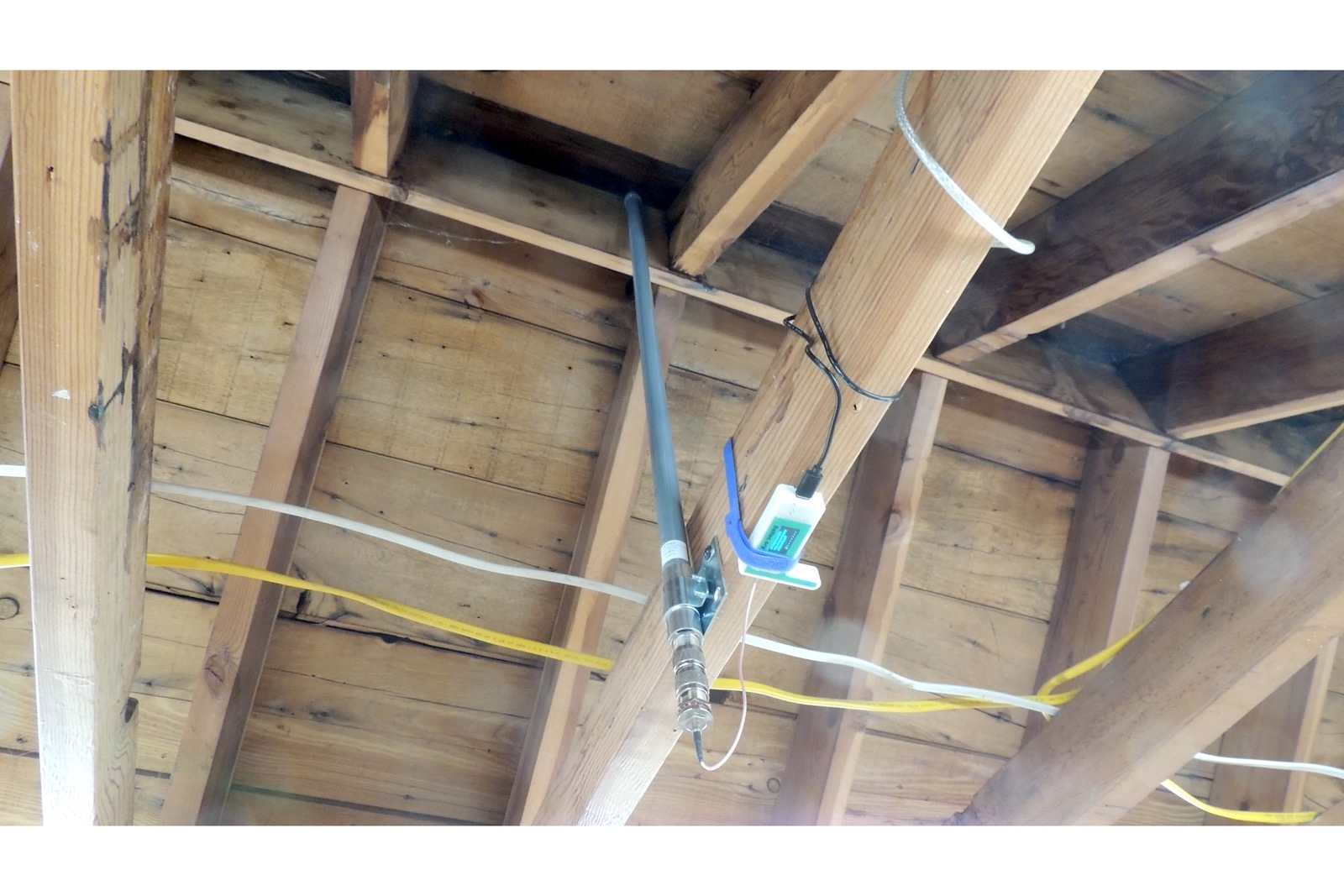

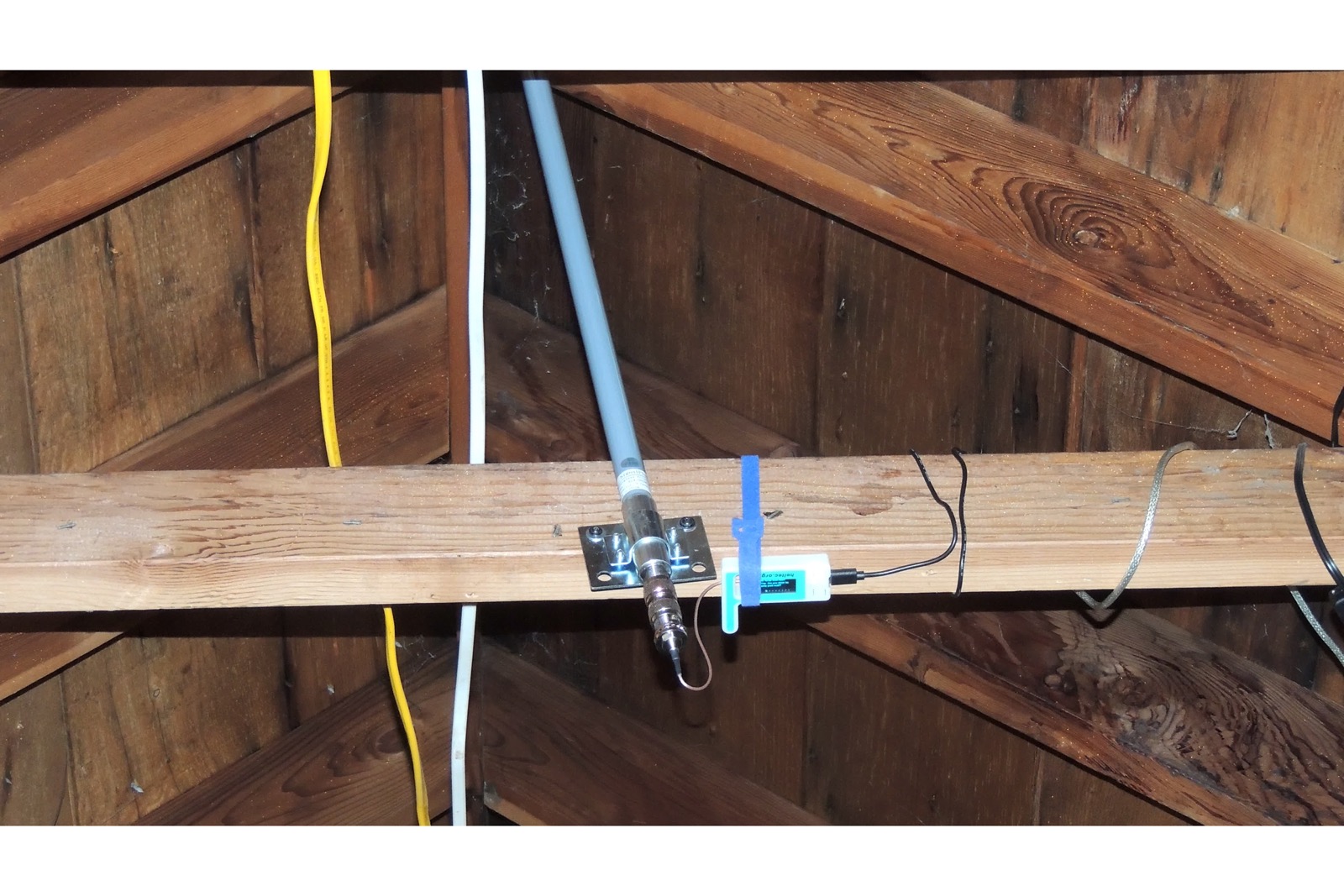

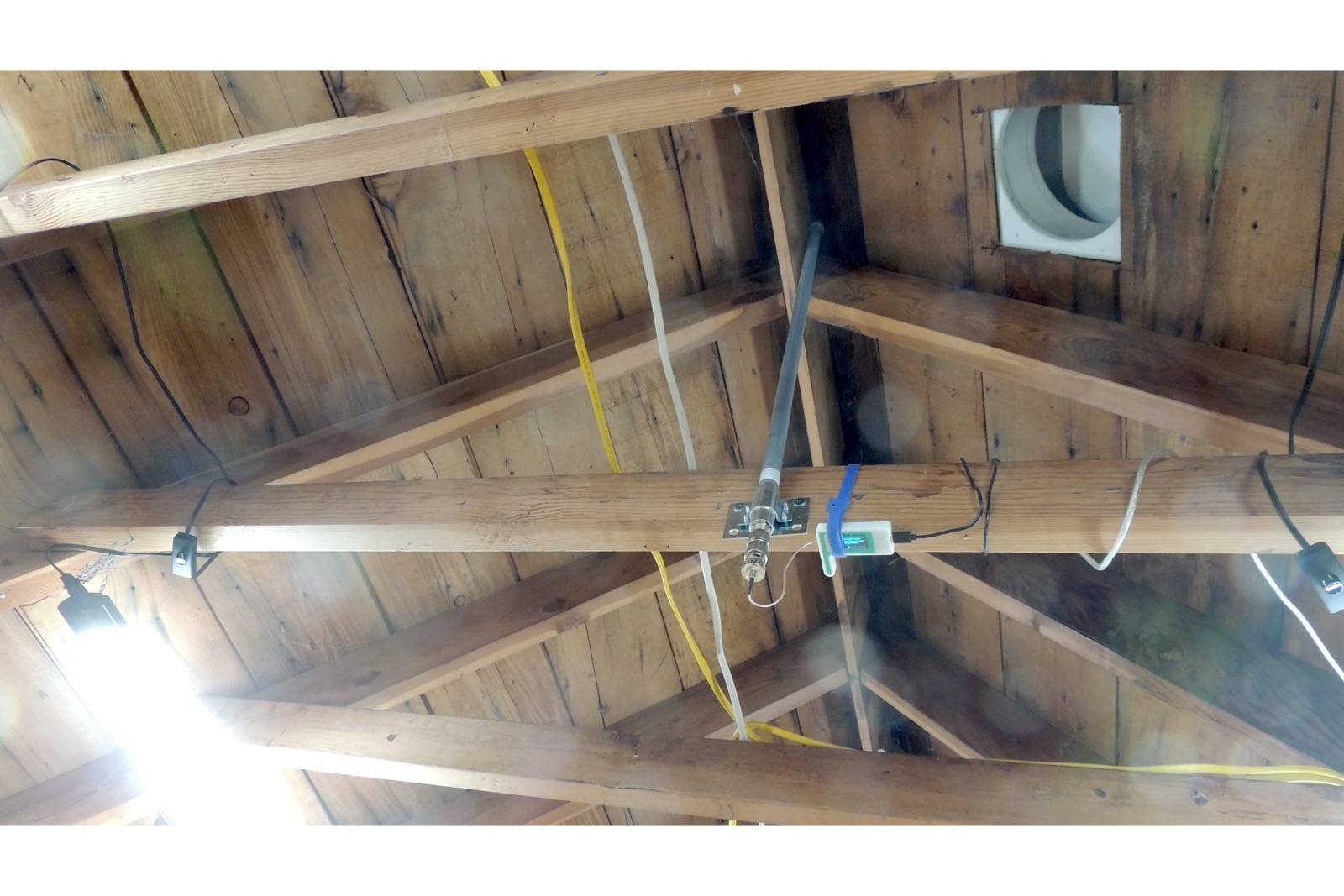

I installed this radio up in my open attic, with a high-gain outdoor antenna pushed up to the top of the peak
under the rafters. It's configured as a Client-Base, with MQTT linked to IowaMesh. Although it's not in quite
an ideal location, it's still got some okay elevation and a good antenna, so it's picked up a number of other
radios in the area in addition to mine here at home.

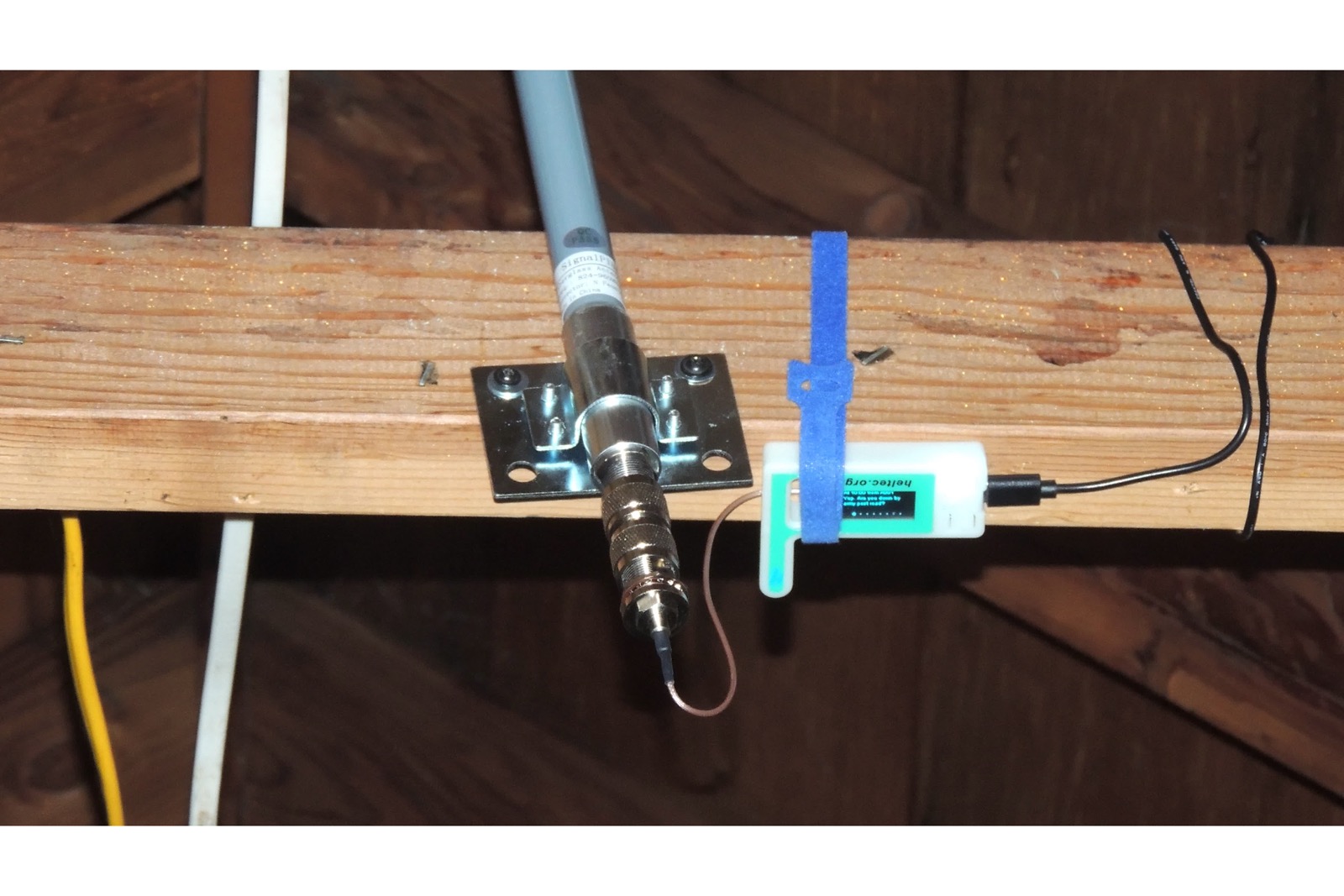

I had to drill a hole in the right side of the cheap case to be able to connect the pigtail to the external
antenna.



10dBi base omni (in outdoor antennas)


Iowa Mesh MQTT (in MQTT internet routing)

DSCN6558	DSCN6560	DSCN6563	DSCN6566	DSCN6568
