Heltec Wireless Tracker Heltec Wireless Tracker:




AKA "Heltec HTIT Tracker"

It's an ESP-32 with bluetooth and onboard GPS. Comes with a stubby little LoRa whip. Includes two IPEX 1.0
connections, one for the LoRa whip and another for external GNSS (GPS) if you want to use an external antenna.

It had some other firmware on it (probably for use as a tracker) so it'l need flashing with Meshtastic firmware
when you get it.

It's surprising that it only costs another $4 or so to upgrade from a Heltec V3 to this one with a GPS, but
that's basically the only difference between the two. (it's also physically longer, so won't fit in a V3 case)

I tested the Heltec Tracker for battery current draw with display and bluetooth on/off

It looks like with the display off, ESP-32 power draw DOUBLES when bluetooth is left turned on, so
if you want to run it off batteries, set the display to turn off after 15 seconds and turn off bluetooth.
There are also some optimizations you can make with the GPS to limit how often it powers it up to get a
new position, and how frequently it transmits (or REtransmits) its location.



3D printed case


Heltec HTIT Tracker ($25 at Ali Express)


Heltec HTIT Tracker data (at Heltec)

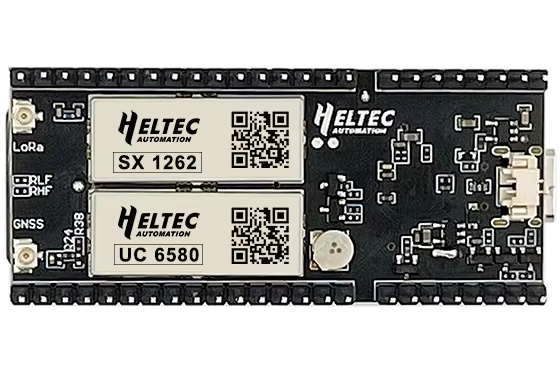

  Heltec HTIT Tracker bottom

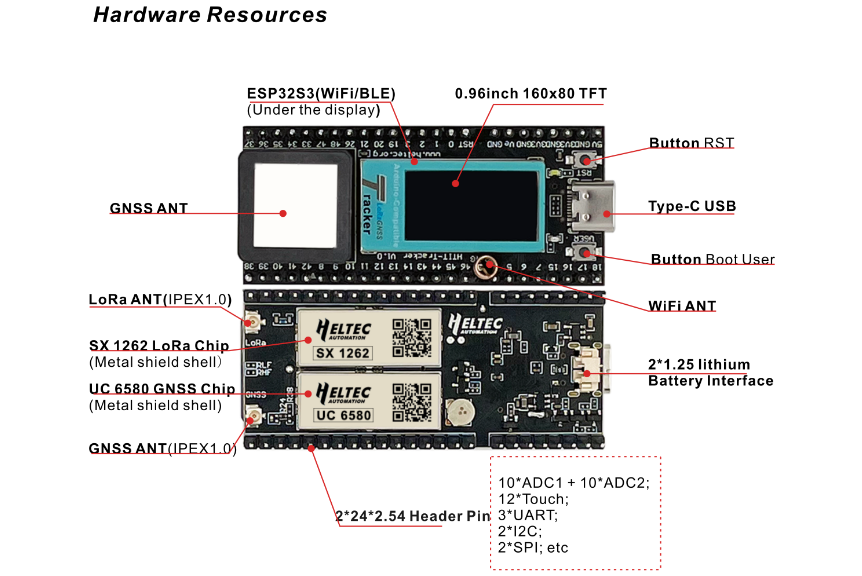

  Heltec HTIT Tracker components

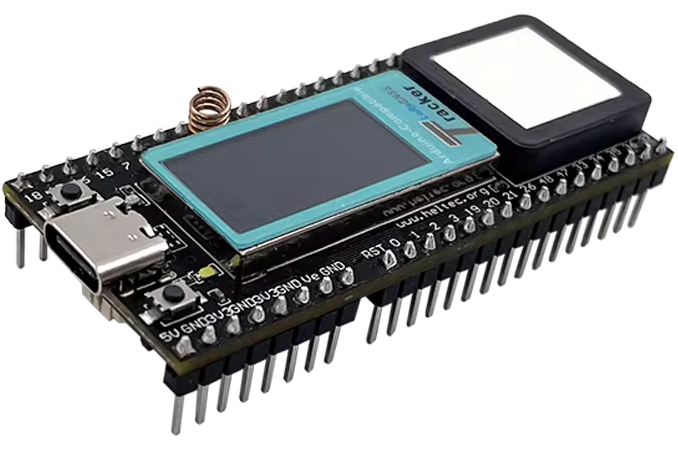

  Heltec HTIT Tracker oblique

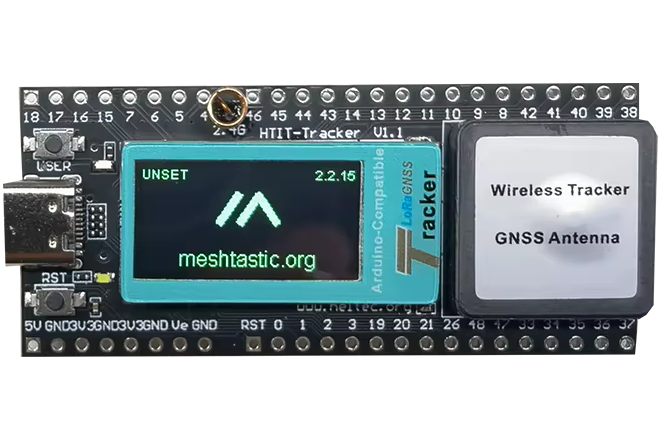

  Heltec HTIT Tracker top

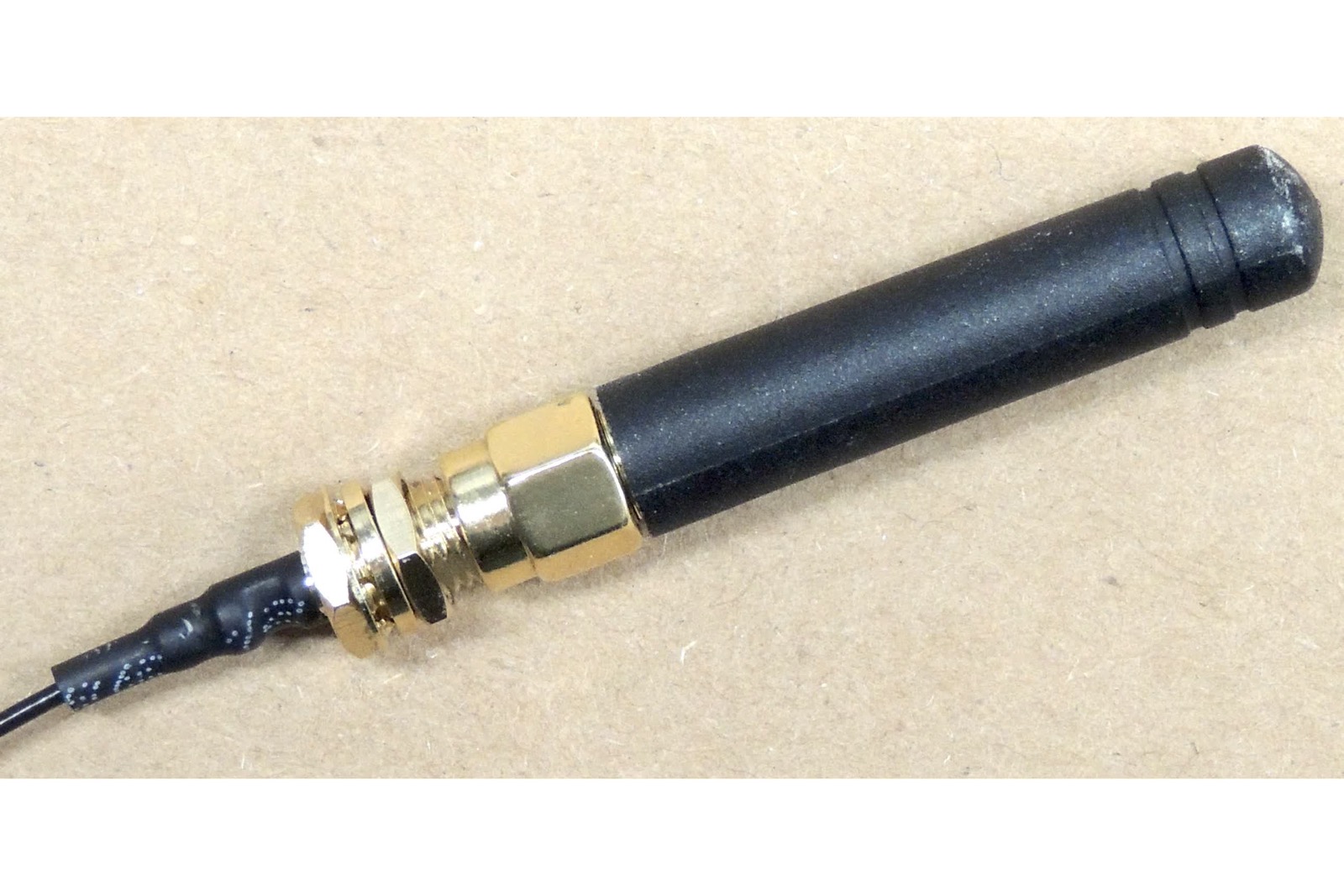

  my tracker ant

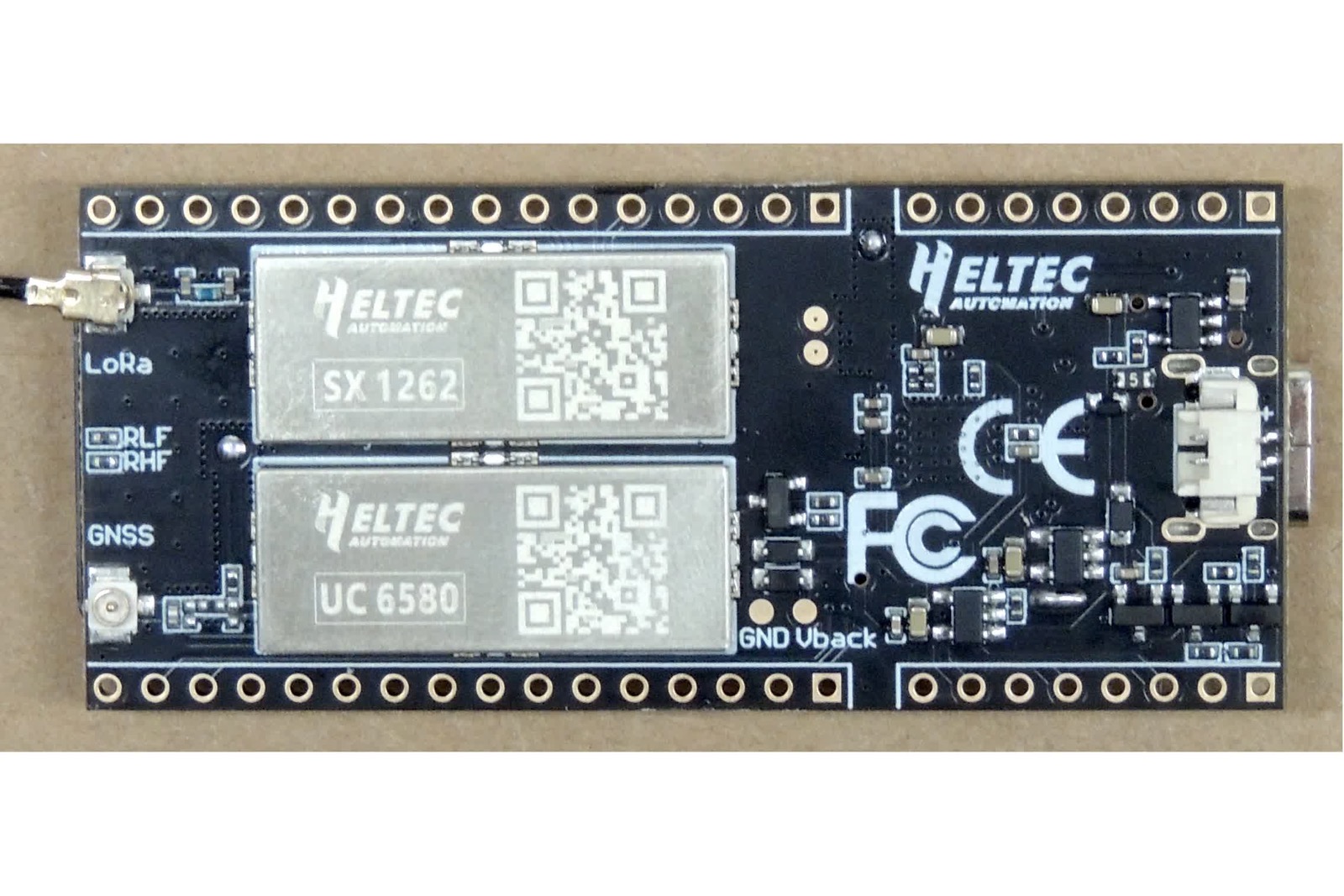

  my tracker bottom
  Heltec HTIT Tracker bottom     Heltec HTIT Tracker components     Heltec HTIT Tracker oblique     Heltec HTIT Tracker top     my tracker ant     my tracker bottom

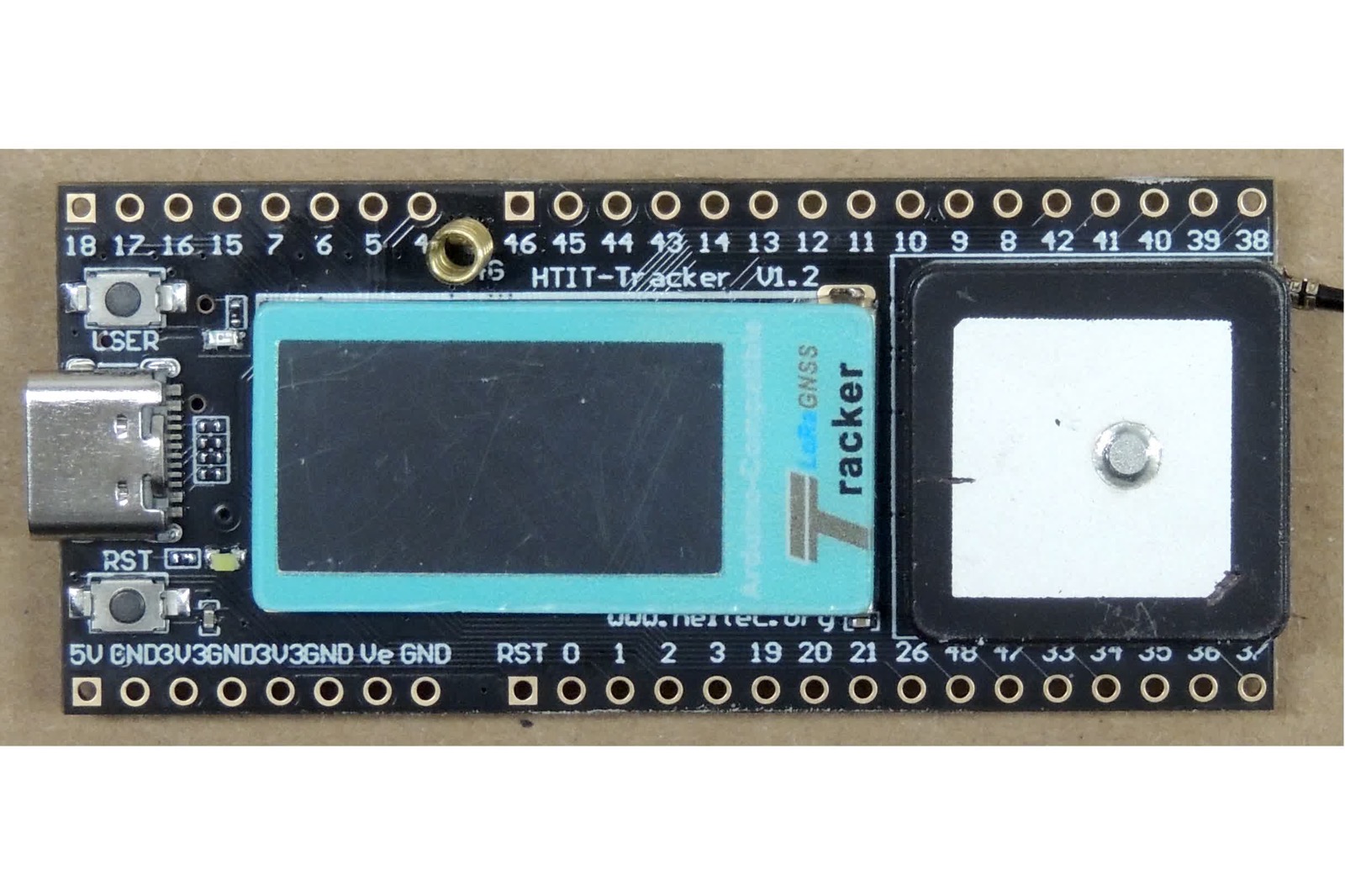

  my tracker top

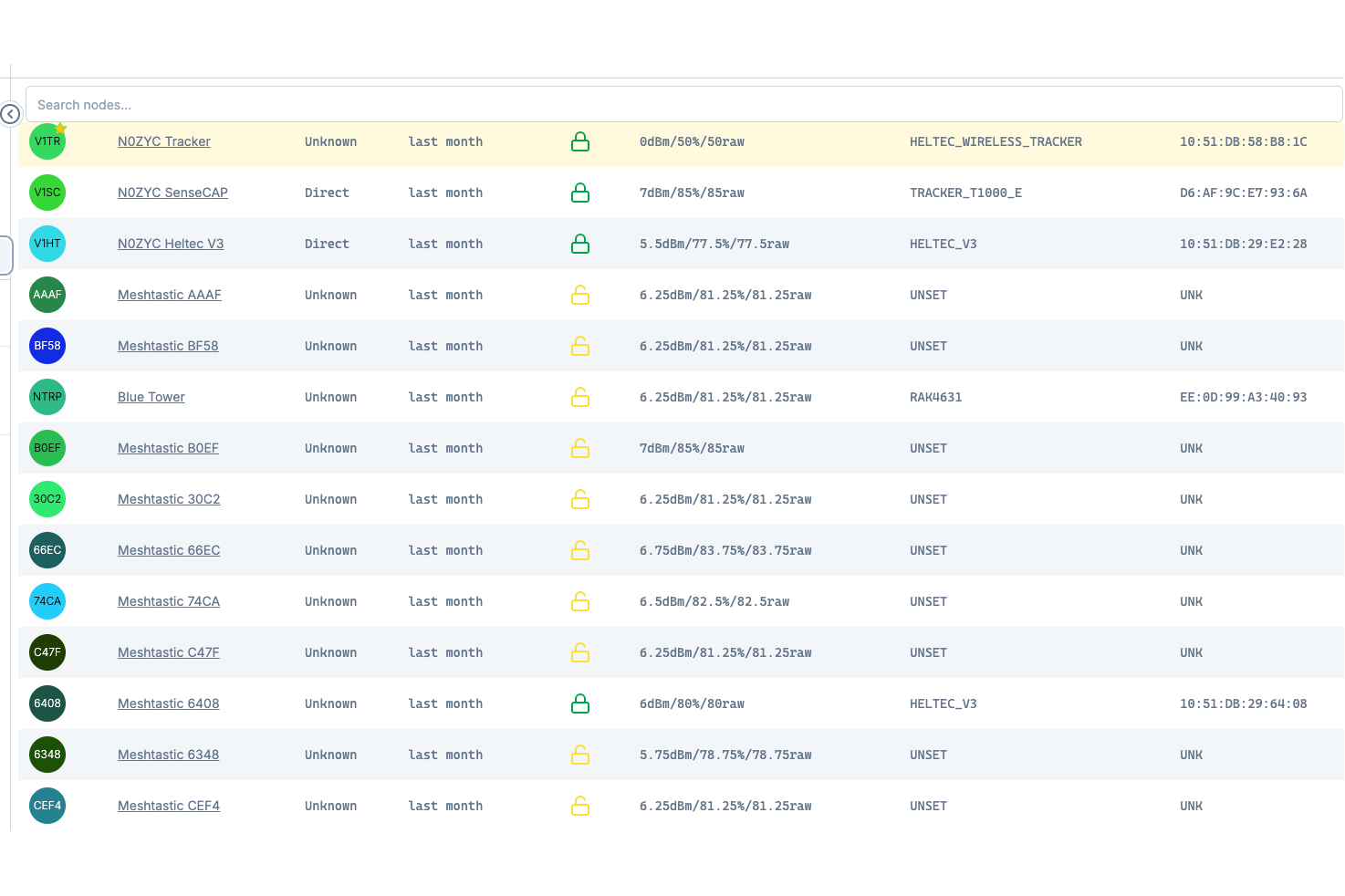

  node list 2025.11.23
  my tracker top     node list 2025.11.23
