K6BMG RF sniffer with tone K6BMG RF sniffer with tone:



  contact K6BMG

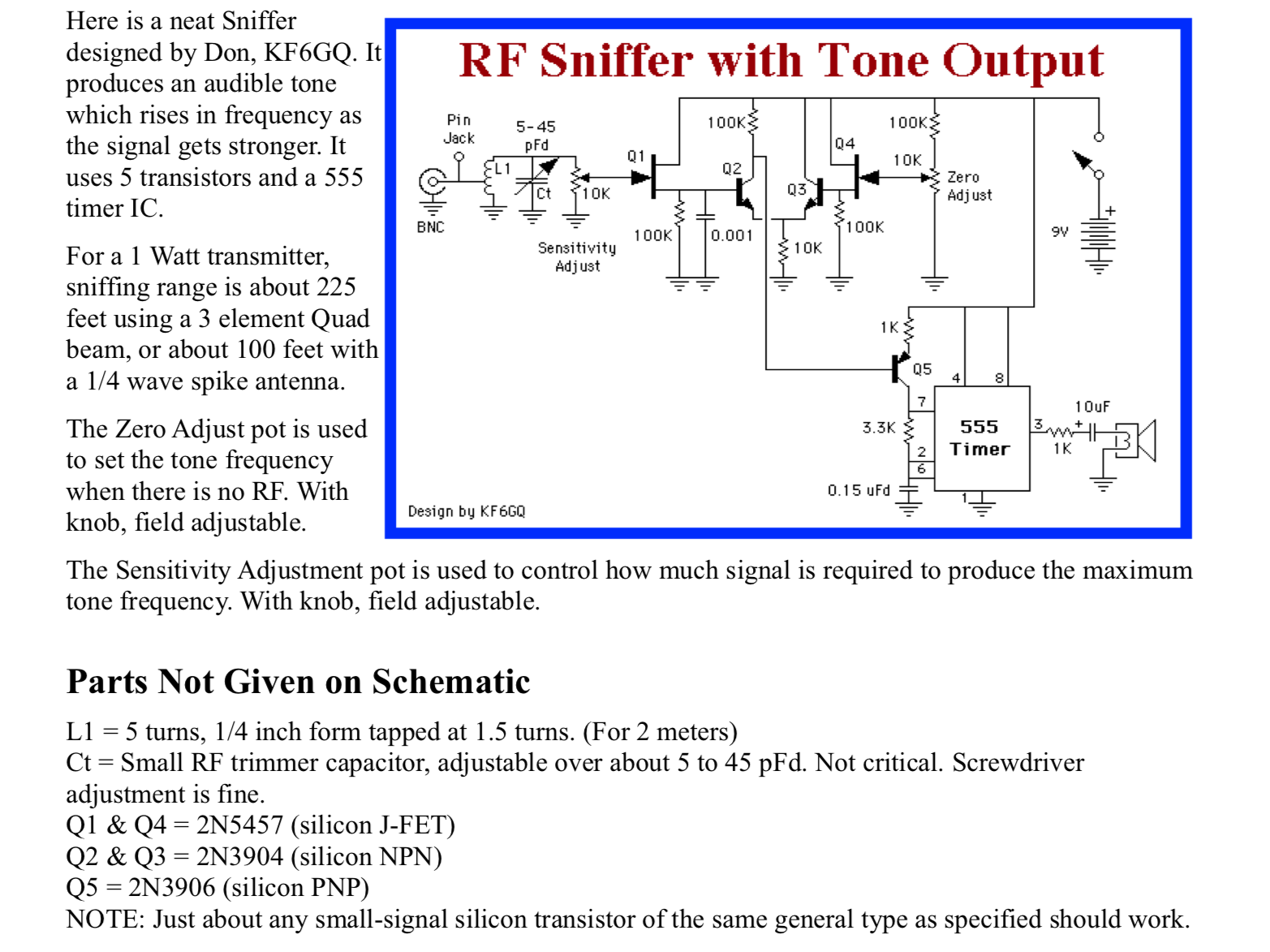

   RF sniffer with tone output

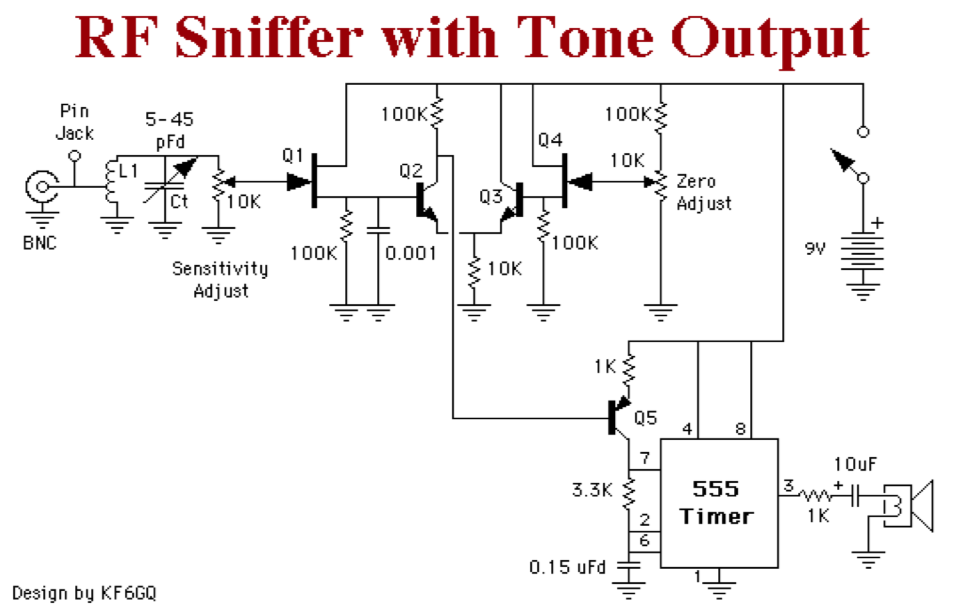

   schematic
  contact K6BMG     RF sniffer with tone output     schematic


highest resolution images
