4 port PVC array rev 2 (tape measure dipoles) 4 port PVC array rev 2 (tape measure dipoles):


This is a hand-held portable doppler antenna, using a similar design to the classic tape-measure beam.

The combiner board is mounted on the boom. It's not really designed to be waterproof though.

It may be the only example of a truly portable, hand-held doppler.


  1 boom feed
   11 antenna feed
   11b antenna feed schematic
   12a ready

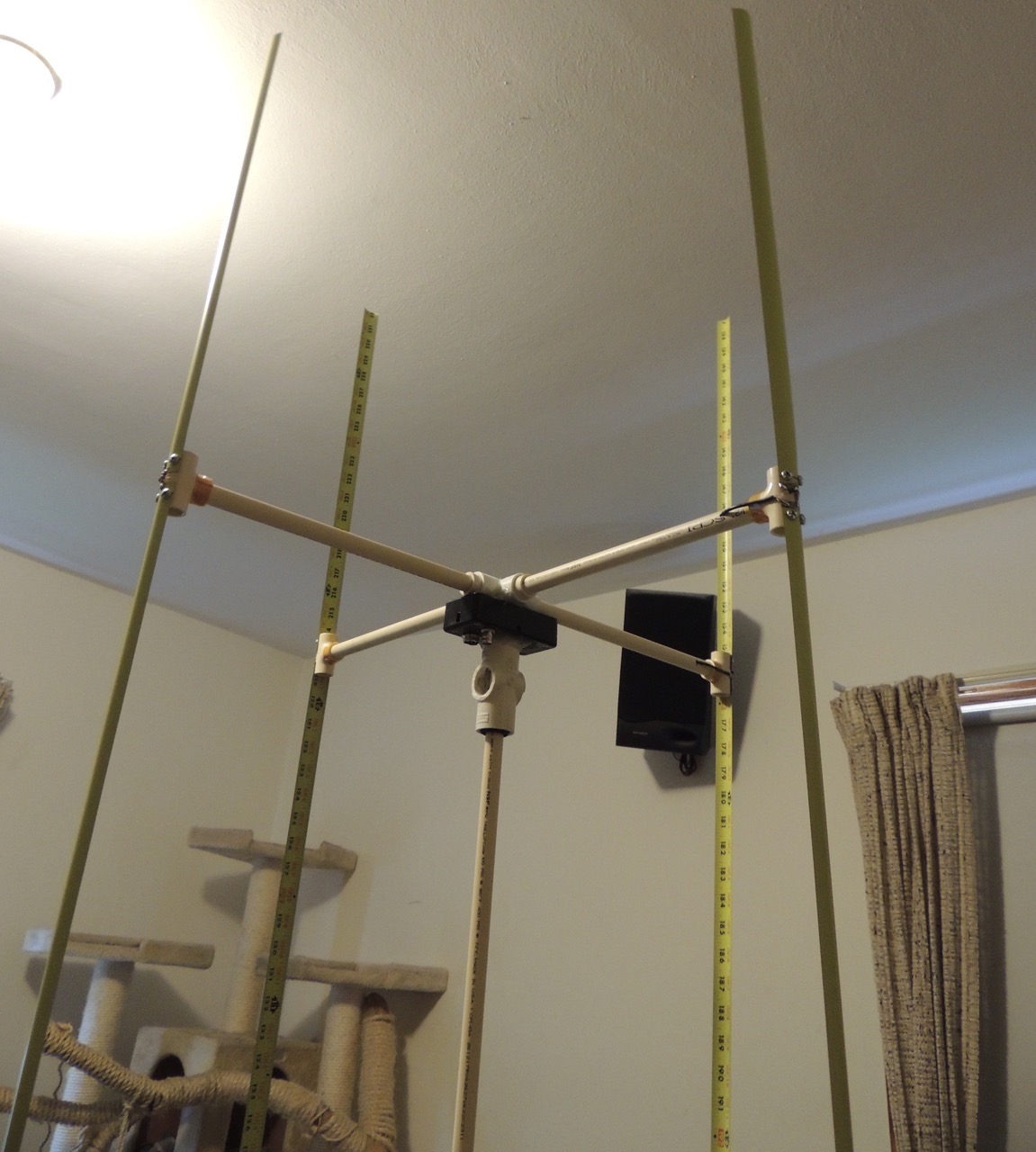

   12b ready
   13a folded
  1 boom feed     11 antenna feed     11b antenna feed schematic     12a ready     12b ready     13a folded
  13b folded
   13c folded closeup
   13d folded closeup

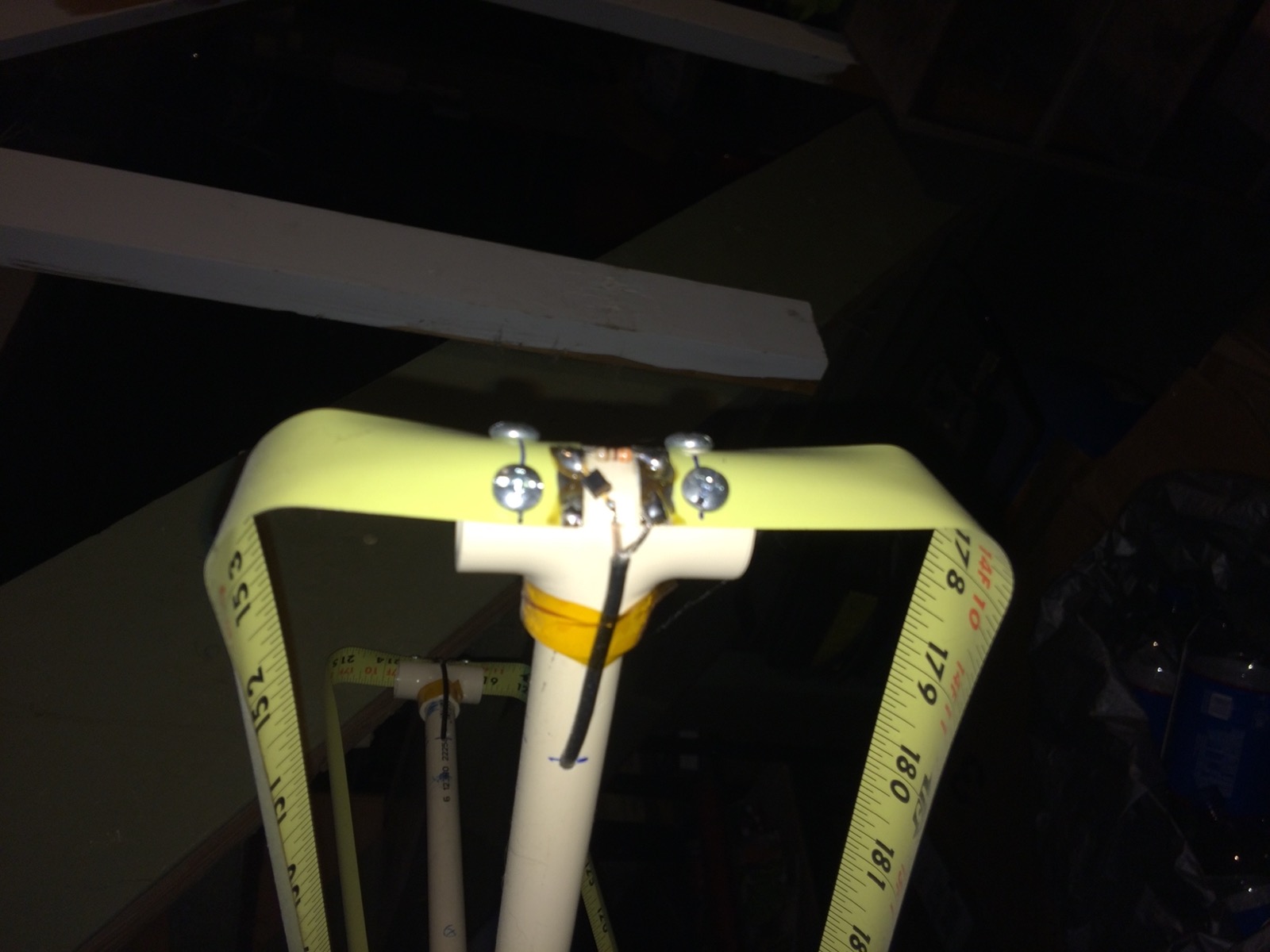

   13e folded closeep
