2021 N0ZYC FoxBox:




The 2021 update to the fox boxes included adding an additional battery pack to double runtime
(now over 8 hours) as well as the installation of chokes on power, mic, and voltmeter lines.

I may end up replacing the batteries with something like a LIPO pack, which will require installing
a LIPO management board, but for now this is working okay.

2023.11 update: the pigtails on TWO of my fox boxes got their center pins pressed in on the female SMA
connectors on the outside of the box, pressing the RG-174 mini coax 2mm out the crimp on the inside,
disconnecting the antenna. I shoved the coax back in, and used hot-melt glue to strain-relief all four
fox boxes to help prevent that from happening again. If it continues to be a problem, I will add an SMA
coupler on the outside to protect the pigtail from wear and tear.

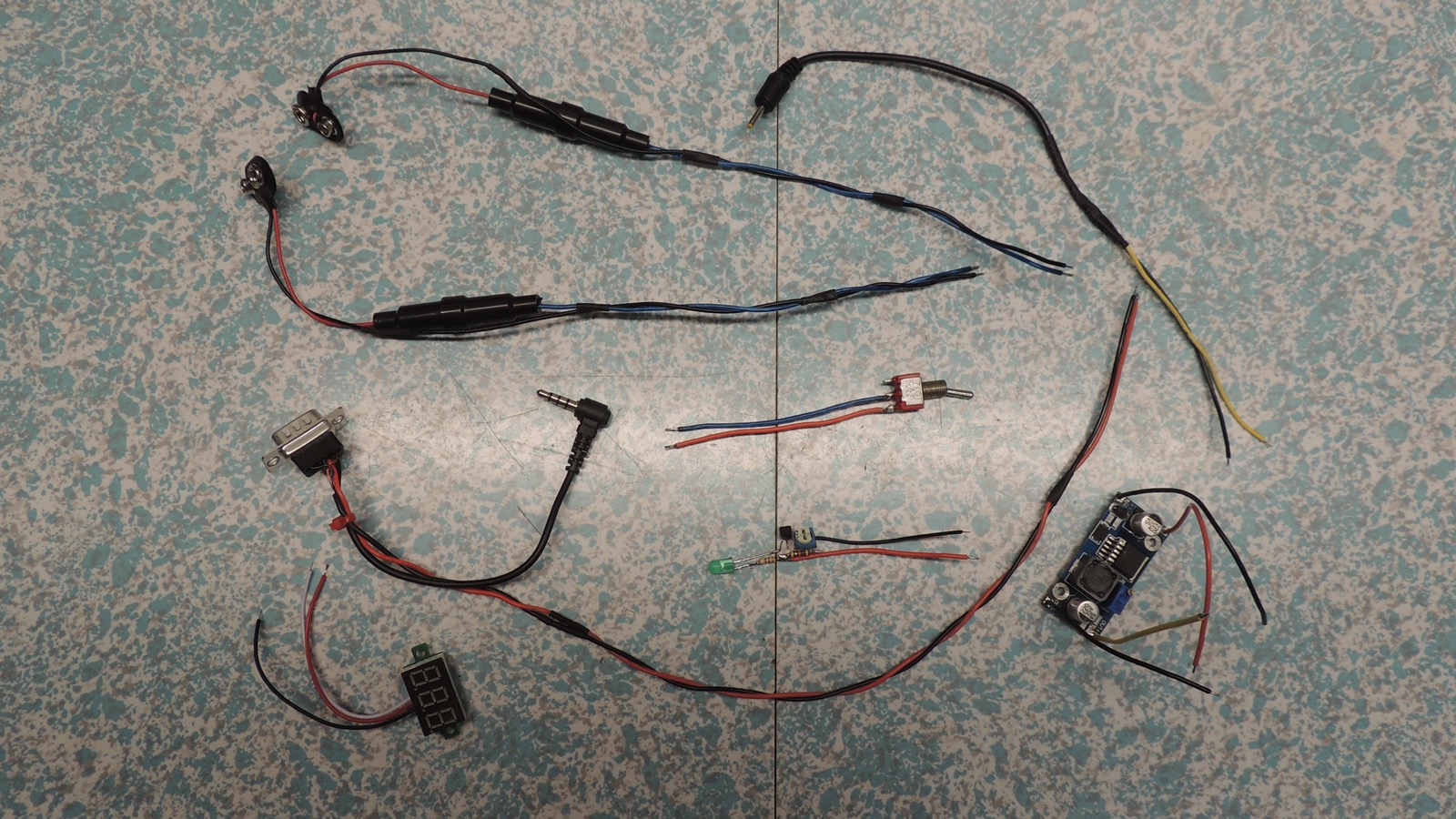

00 schematic	01 gather materials	02 pluck foam	03 drill LED hole	04 drill SMA hole	05 place foam 1 and 2
06 attach wires	07 splice harness	08 harness ready	09 install regulator under foam 1	10 place harness over foam 2	11 dress and place foam 3
12 glue down voltmeter and switch, test	13 ready for hunt	14 strain-relief on pigtail
