back to 2025.05.16 test five Powkey s60 medium wallets

4 CPY FLA 24 amp load test:

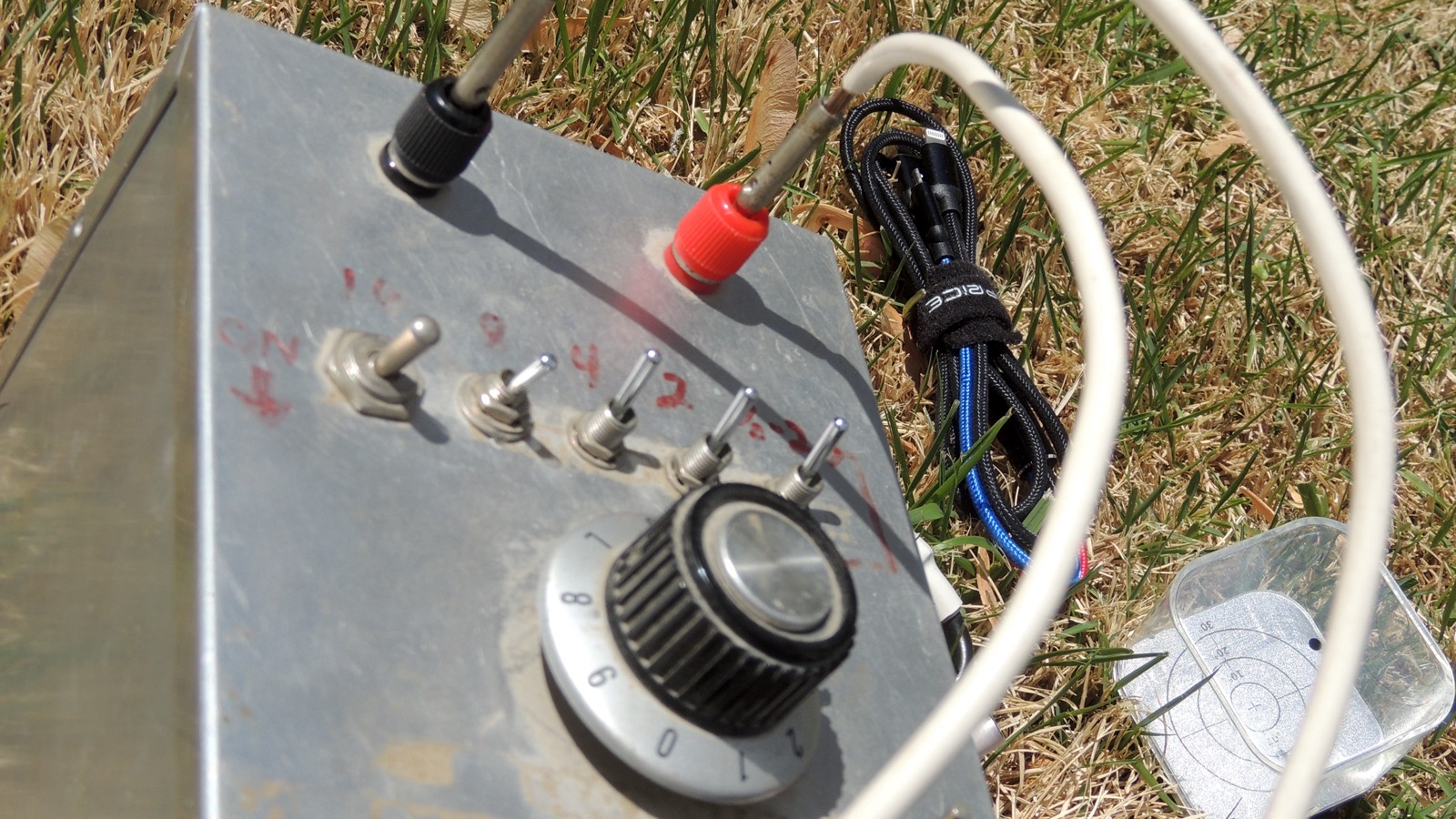

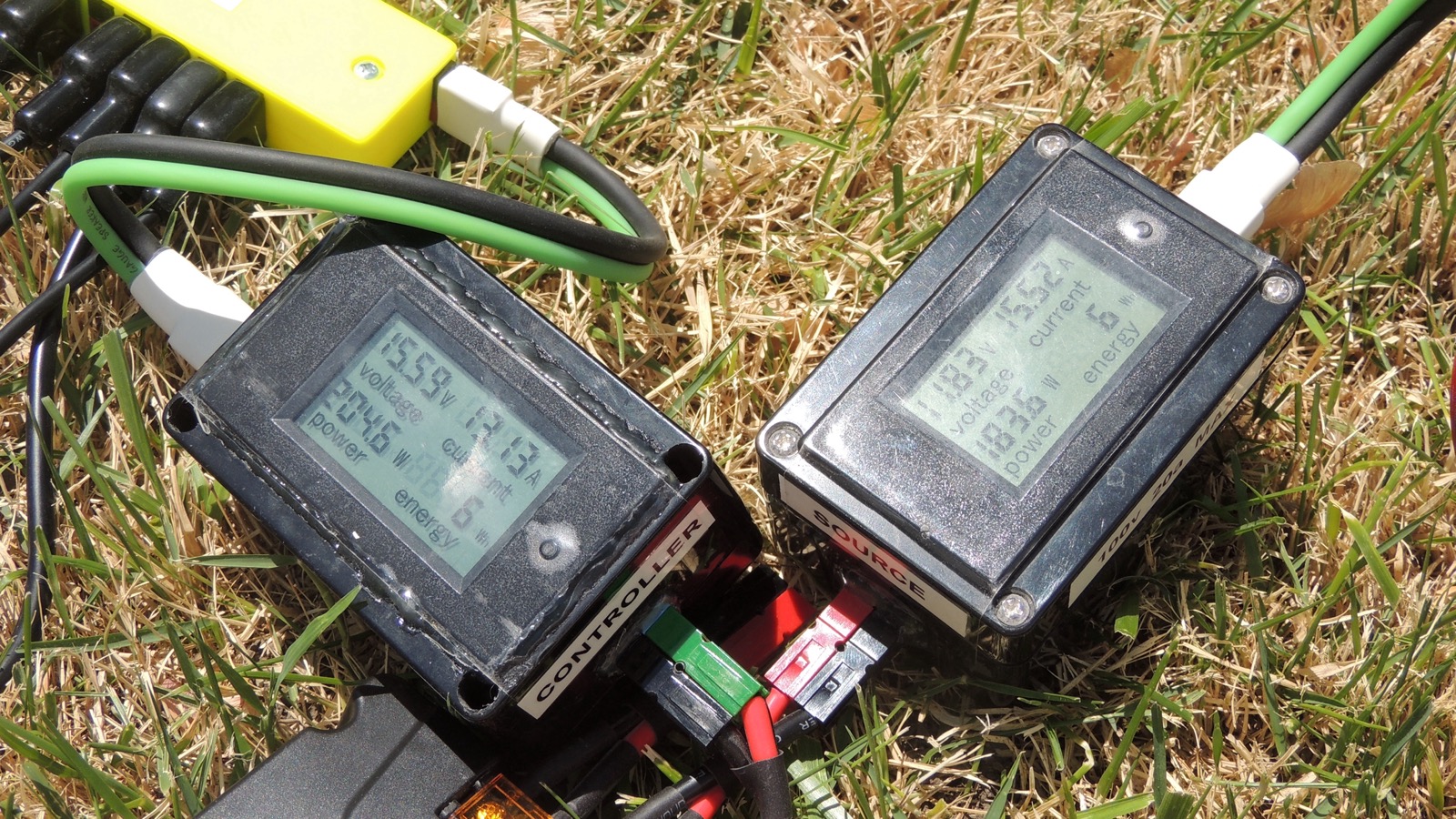

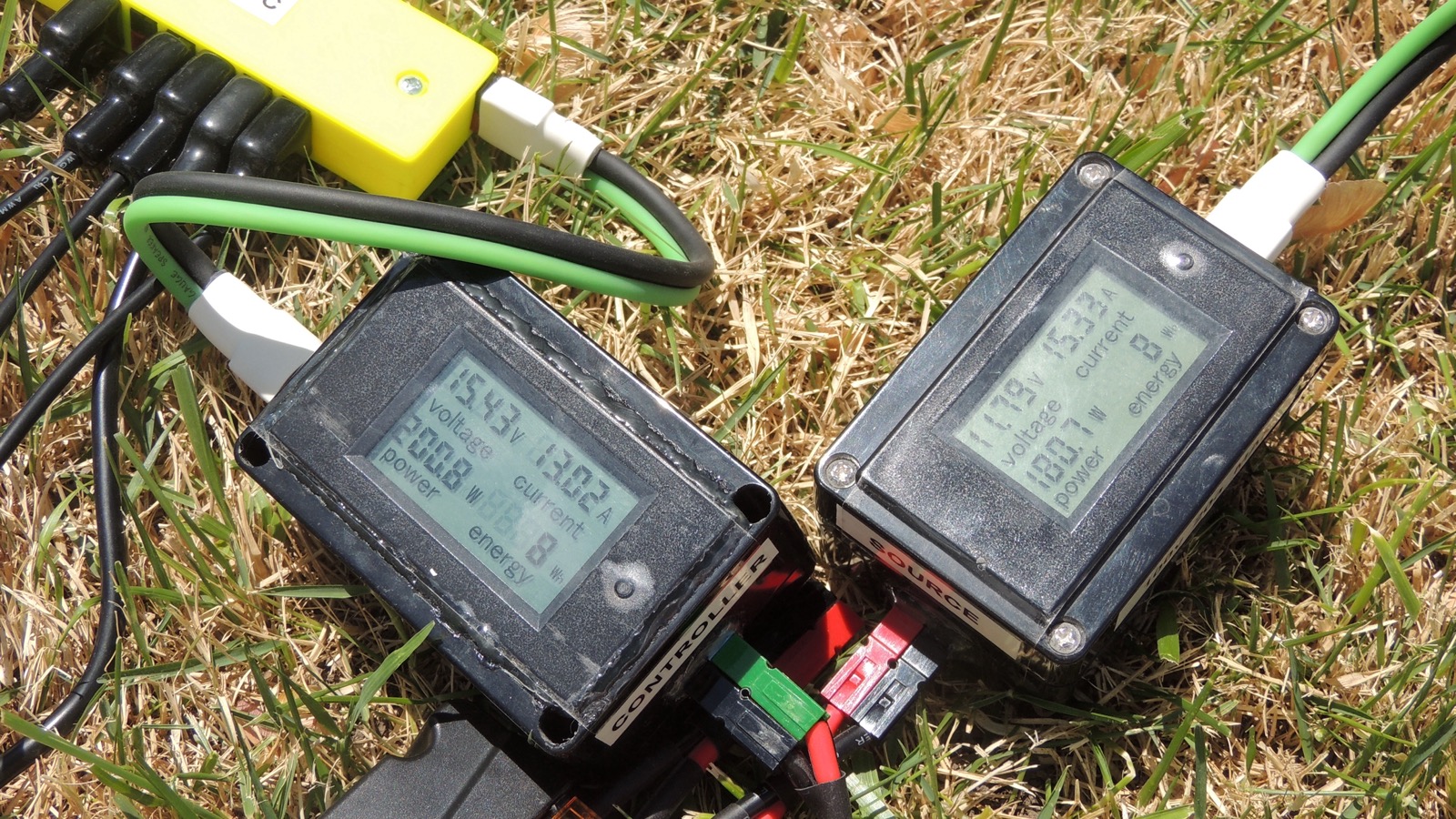

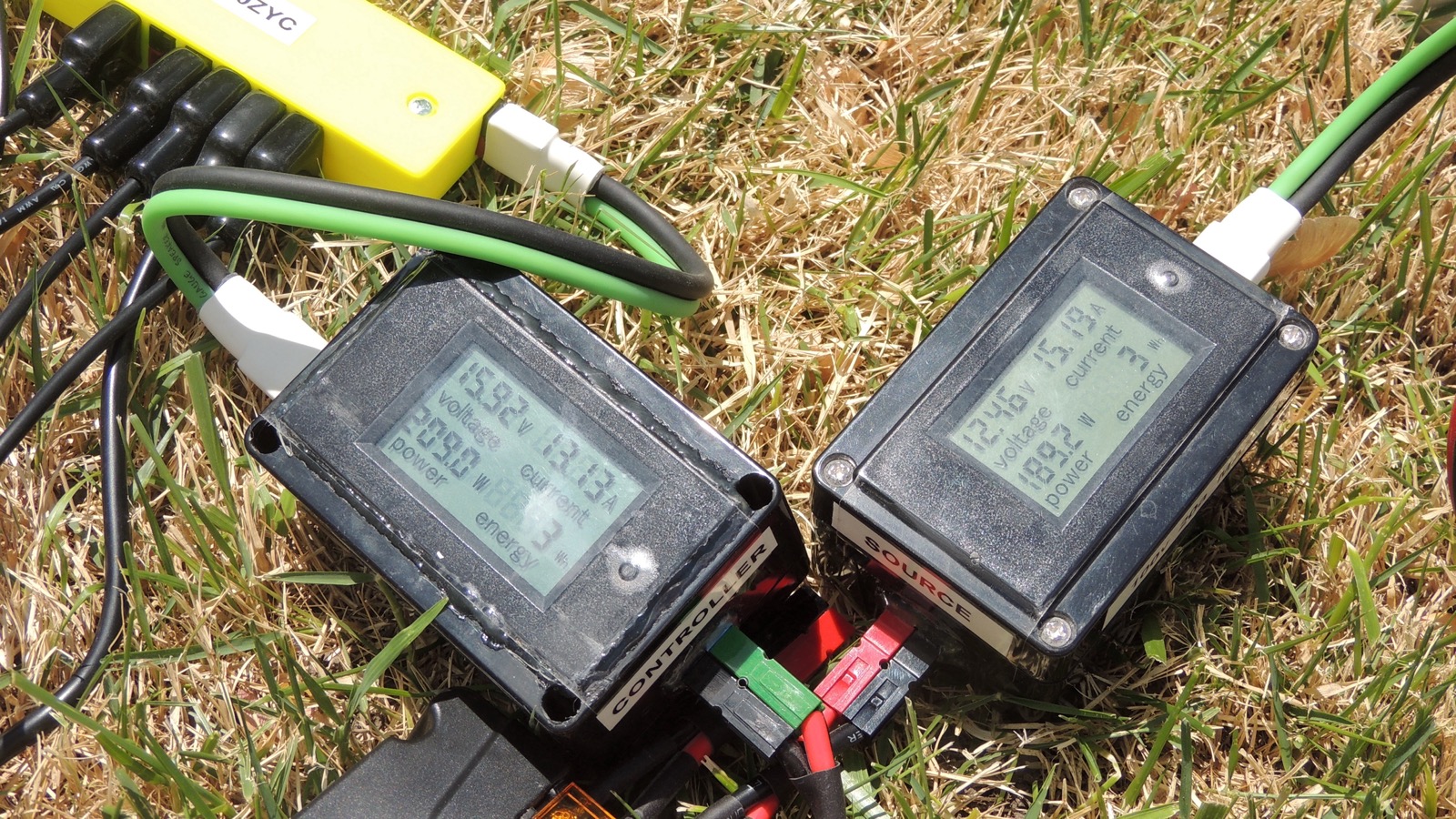

Next I flipped the 16 amp switch, and the load should have been drawing around 15 amps from the battery. The
battery initially dropped to about 11.5 volts but quickly recovered as the controller put the pedal down. Charge
current was only 15 amps, so the battery was probably contributing around 8 amps to the load at this point.
Solar power was over 200 watts, I think I saw as high as 217 watts, pretty close to the Elejoy 224 watt test.

2025.05.16 13.40.46	2025.05.16 13.41.36	2025.05.16 13.41.42	2025.05.16 13.42.06

highest resolution images
