back to 2025.05.16 test five Powkey s60 medium wallets

2 panels connected in parallel 2 panels connected in parallel:

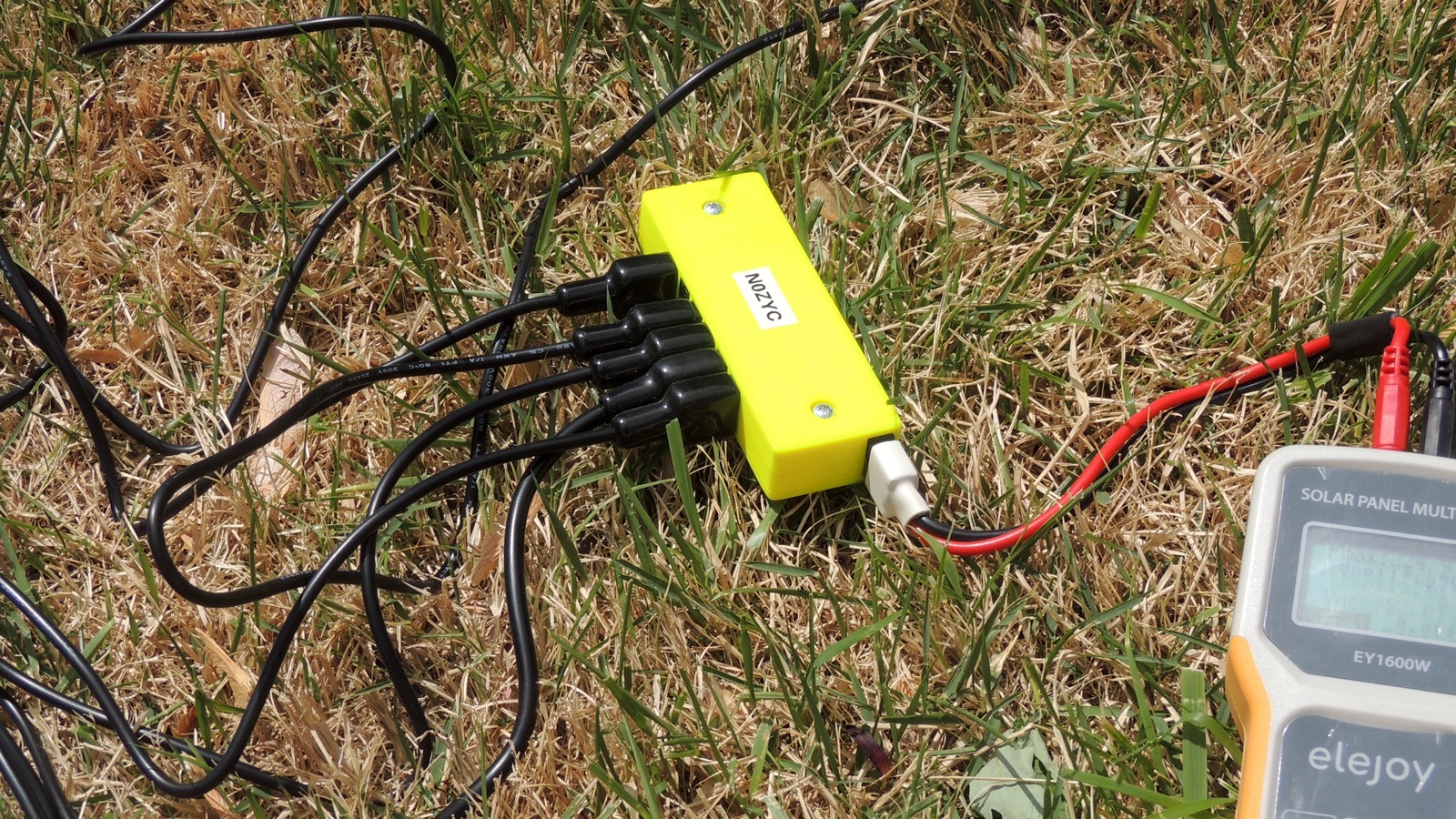

Next I connected all five wallets to a powerpole block so they were in parallel, and gave that a test. (Elejoy
will test up to 1,600 watts, though its voltage is limited) During this test, all five wallets would experience
the exact same amount of sun.

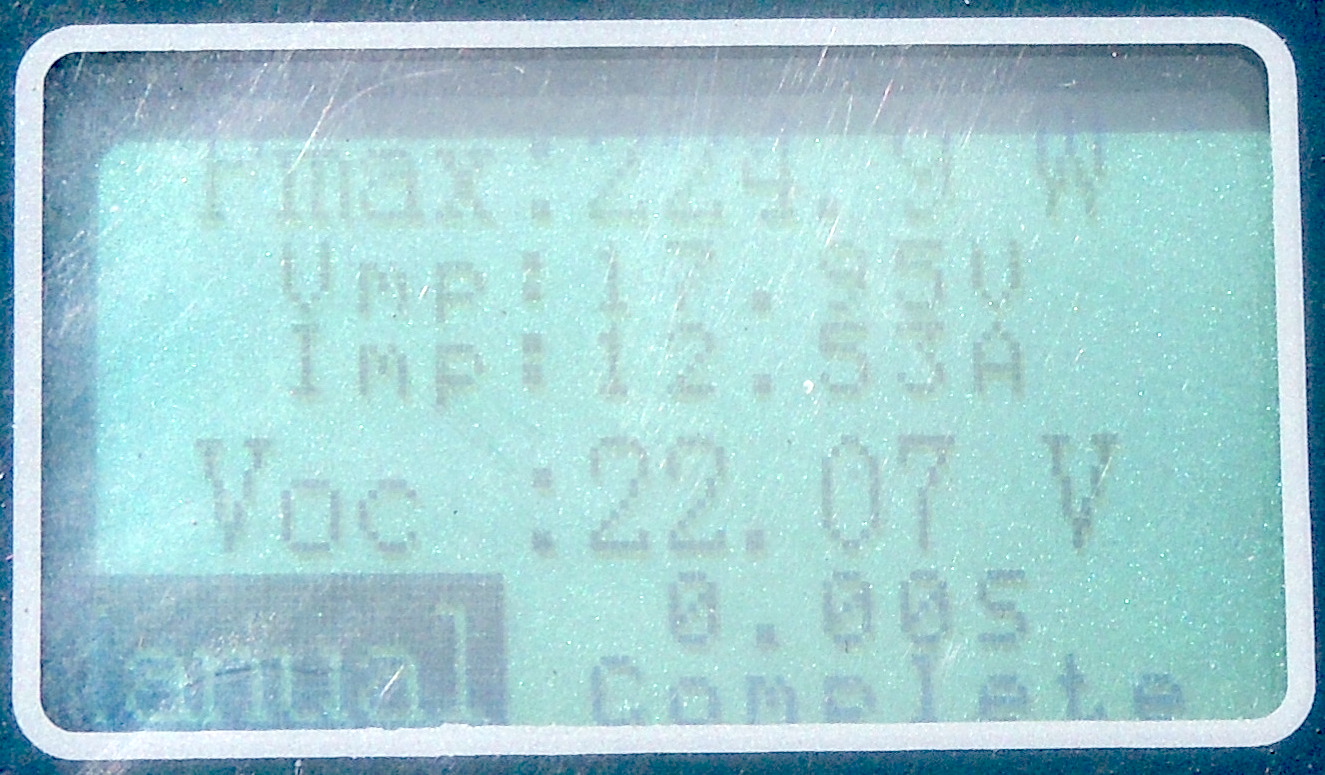

measured values     individual averages
-----------------   -------------------
Pmax: 224.9 watts   Pmax: 44.98 watts
Vmpp: 17.95 volts
Impp: 12.53 amps    Impp: 3.13 amps
 Voc: 22.07 volts

Pmax was lower than I was expecting.


2025.05.16 13.34.02:


2025.05.16 13.34.10:



highest resolution images
