3 combiner closeups:




The green led displays in two of the four panel combiners are SO much easier to read, I regret using red
displays for the other two. (I may yet suffer the pain of replacing the meters, or just make two more panel
combiners) But the smoked plexi glare-shields worked incredibly well, even on the red displays. Having an
output port on both sides of the combiners simplified setup and allowed me to run wires cleanly without having
to wrap them around boxes so as to keep the displays all facing the same direction. I'm very satisfied with
my decision to go to the extra work of adding the dual output ports.

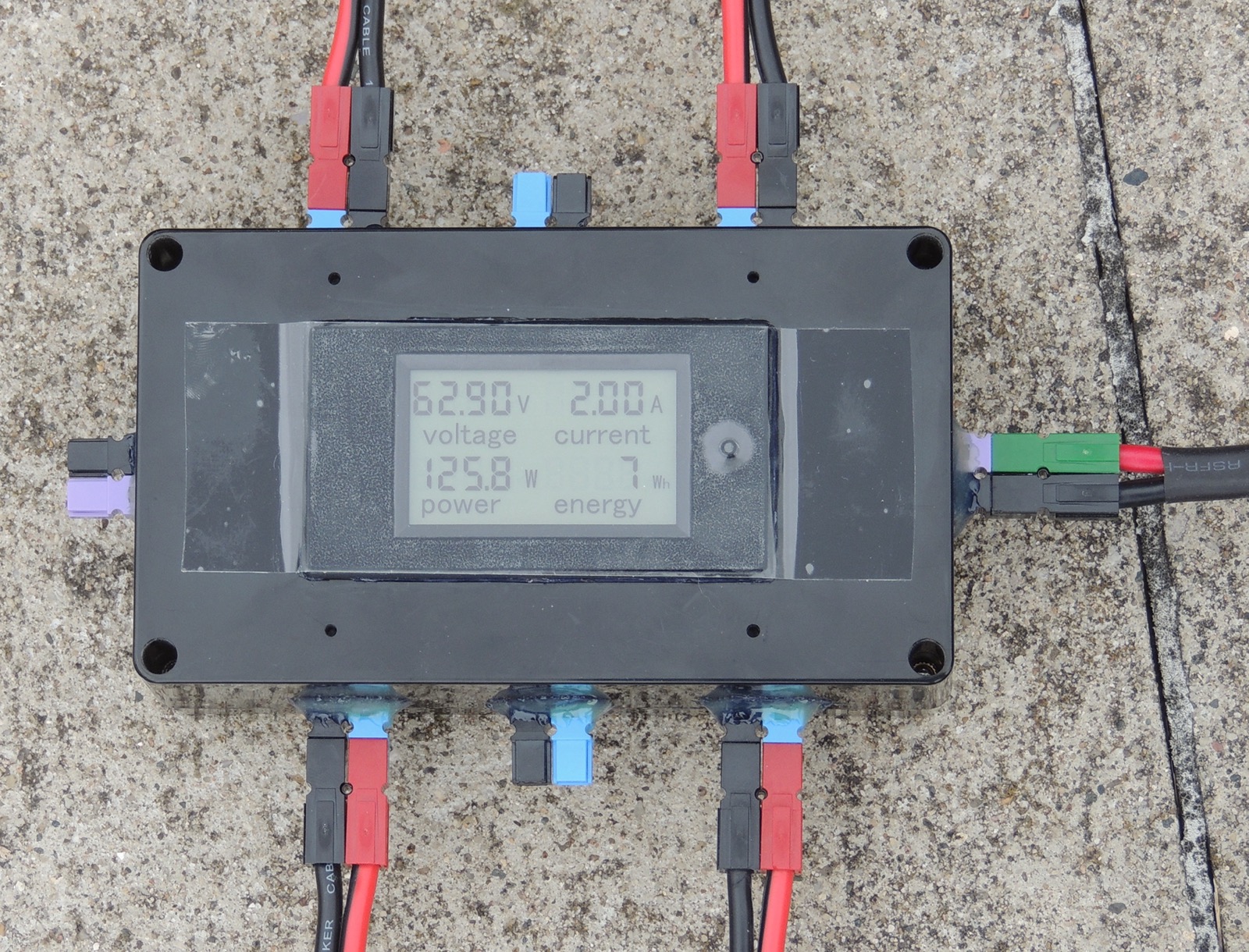

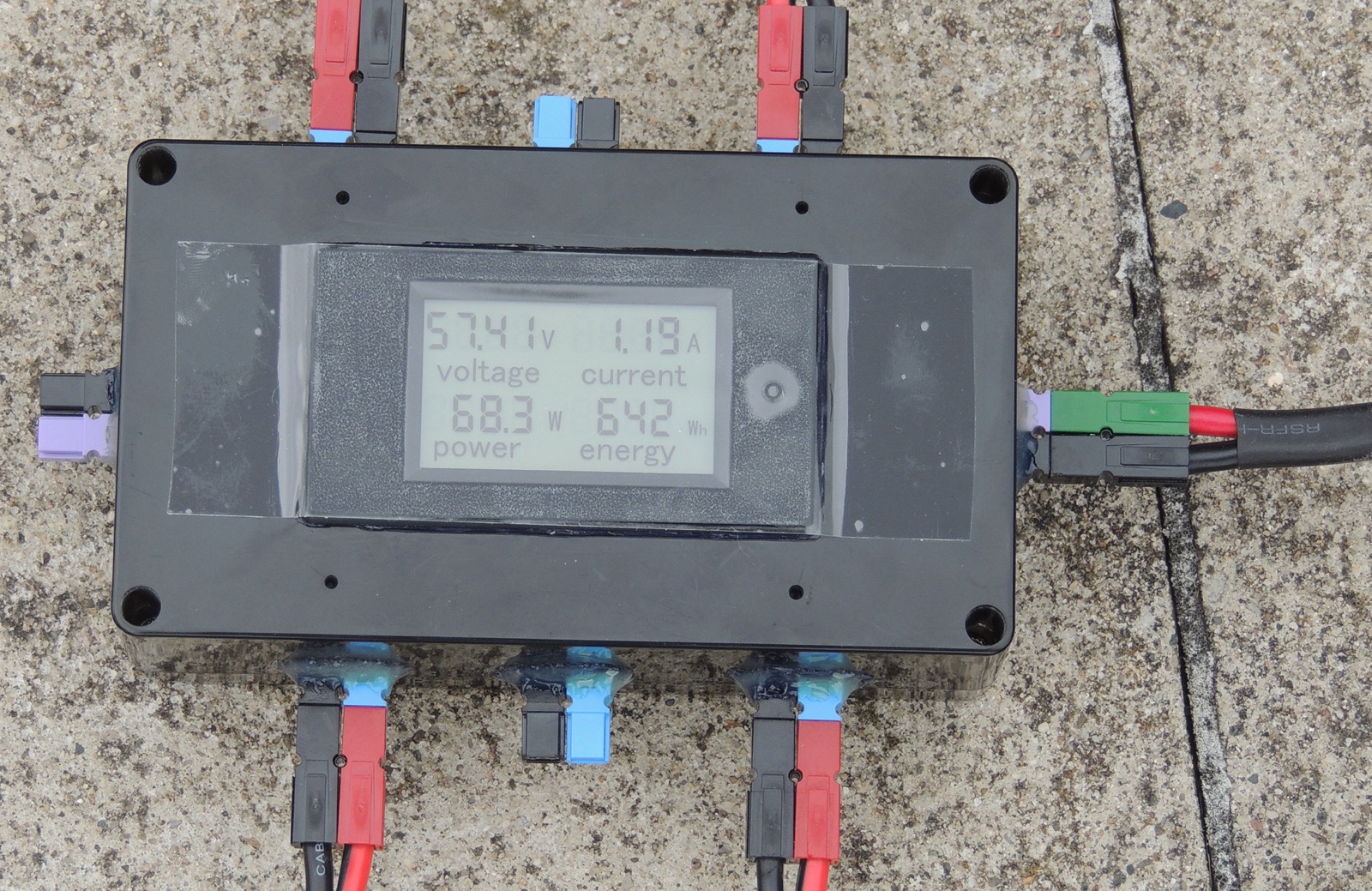

panel combiner green	panel combiner red	string combiner begin	string combiner end
