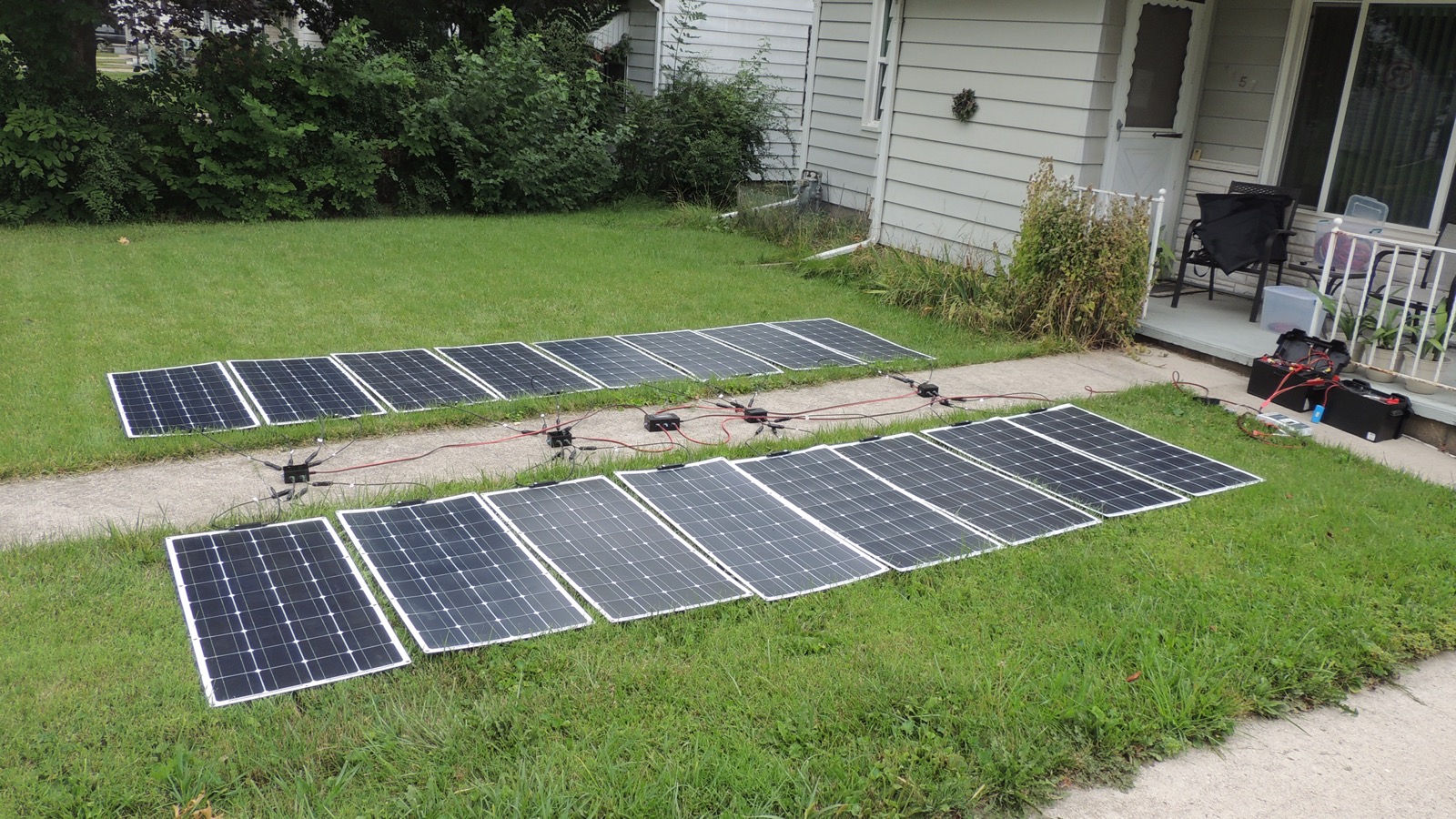

With more panels comes a different ground layout. I set down two rows of 8 panels, (total of 15ft long) with
the strip between them used to place the string and panel combiners. (total of 12ft wide)
I used a pair of 2ft and 6ft jumpers to connect the panel combiners to the string combiner.
This arrangement appears to be very compact, without restricting my access to the combiners. Since all the
combiners have an output port on both sides, it allows me to feed them from either side, while keeping all
the displays in the same orientation.
panel layout and jumper sizes
wide north
wide west
