rev2 schottky:


My next idea was to install a separate battery fot the dashcam, and use a schottky to prevent the truck from
drawing power to the dashcam battery, while the truck kept the dashcam battery charged. Unfortunately this
meant the dashcam could deep discharge the car battery, which it did more than once.

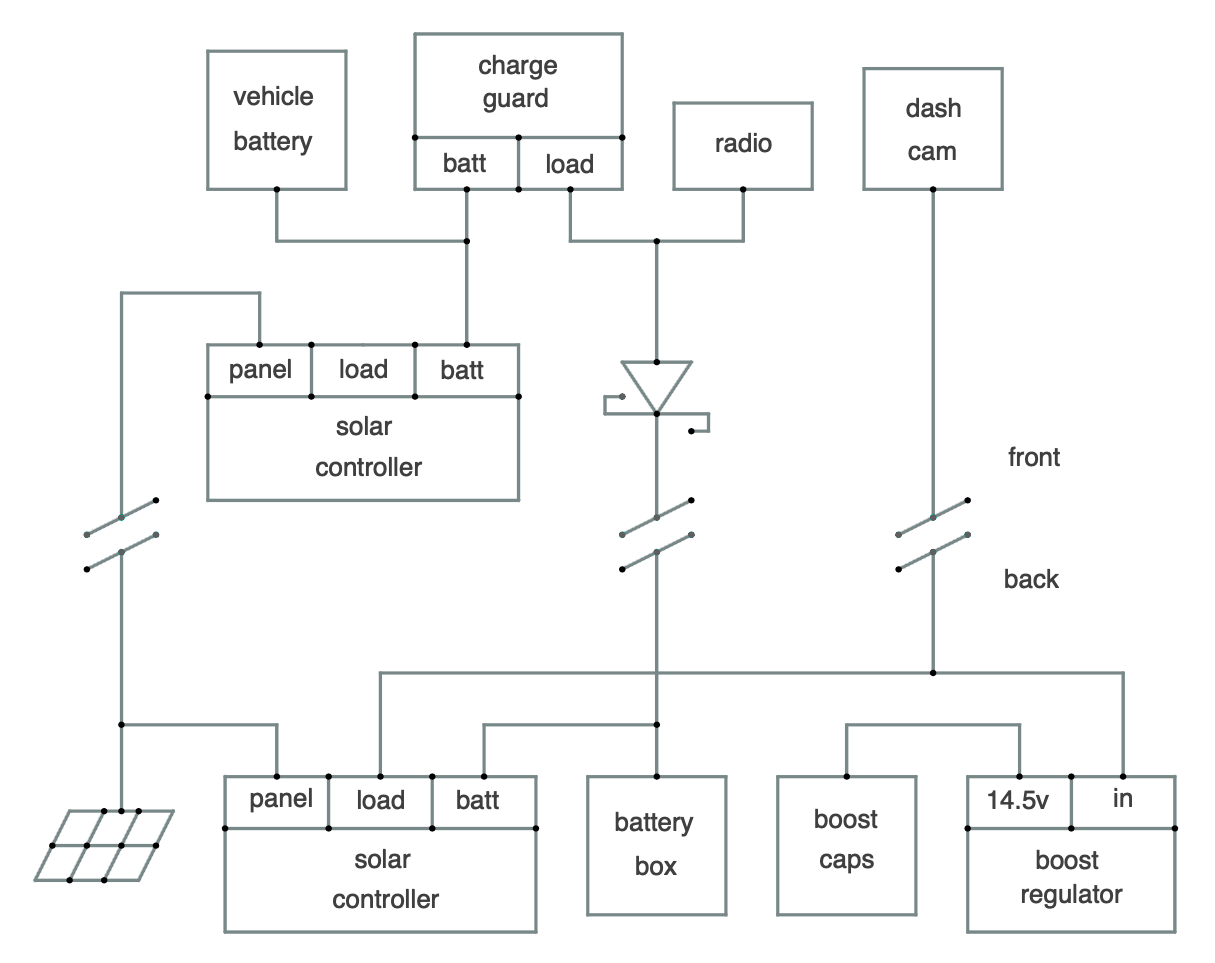

solar dashcam batt schottky:
