2025.06.02 HW-845 controller testing:

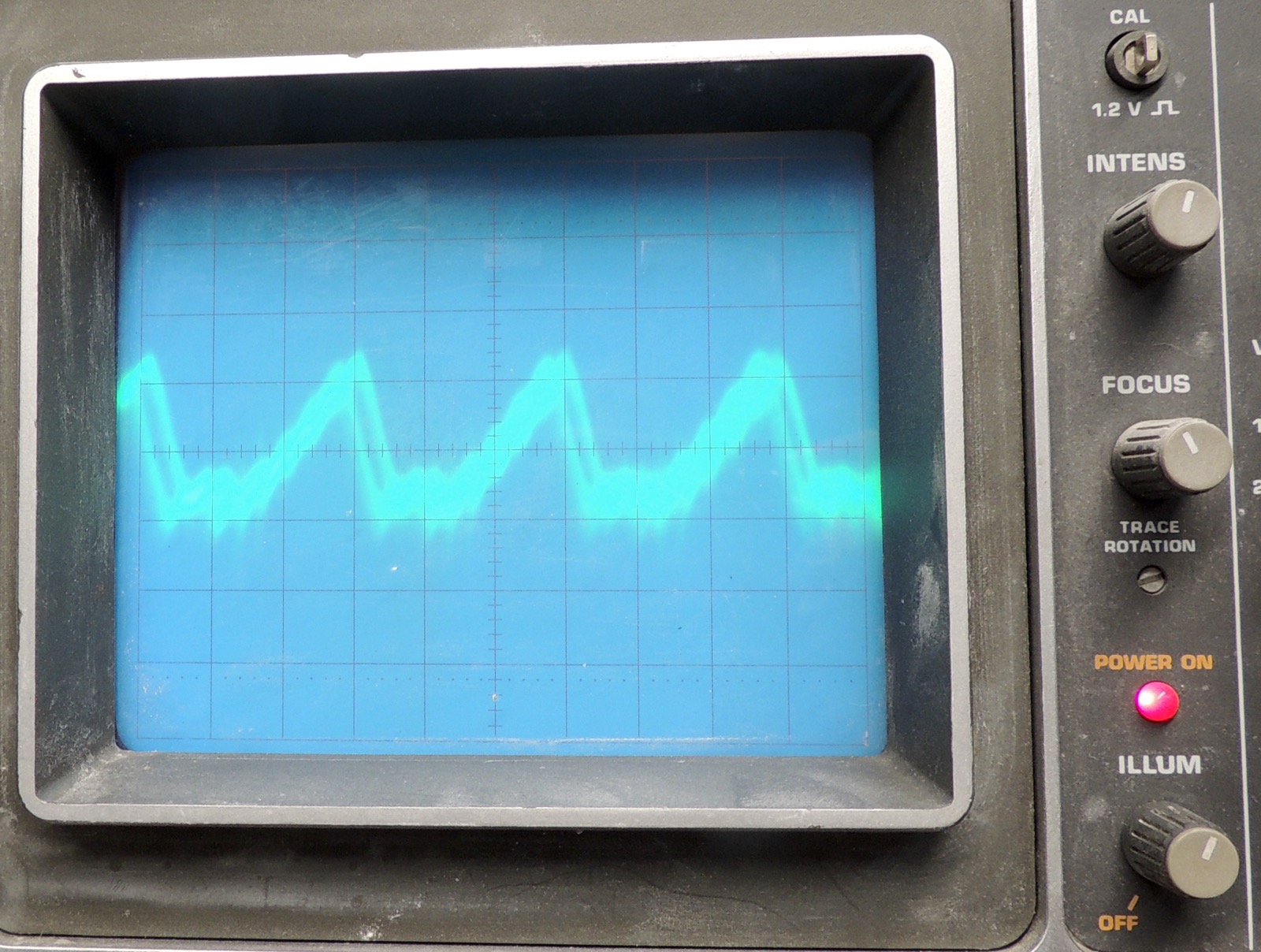

Quick test to see how much noise this regulator generates. It looks like at 25mV at 330khz.
(the vertical thickness of the signal is due to a powerful radio station in my area - AM 1650)

Solar input was supplied with 18v, which is what the MPP configuration resistors were set to. It drew 3.3 amps
(which was a bit more than the expected 3.0 amps) and the board did start to warm up. Efficiency was decent,
converting 44 of 47 watts. (93%) A load of 4 amps was placed on the battery during the test.

I did some additional tests a little later with a static load (10 ohm 110 watt power resistor) and some filters
to both see what sort of interference the controller was generation and how well the filters removed it.

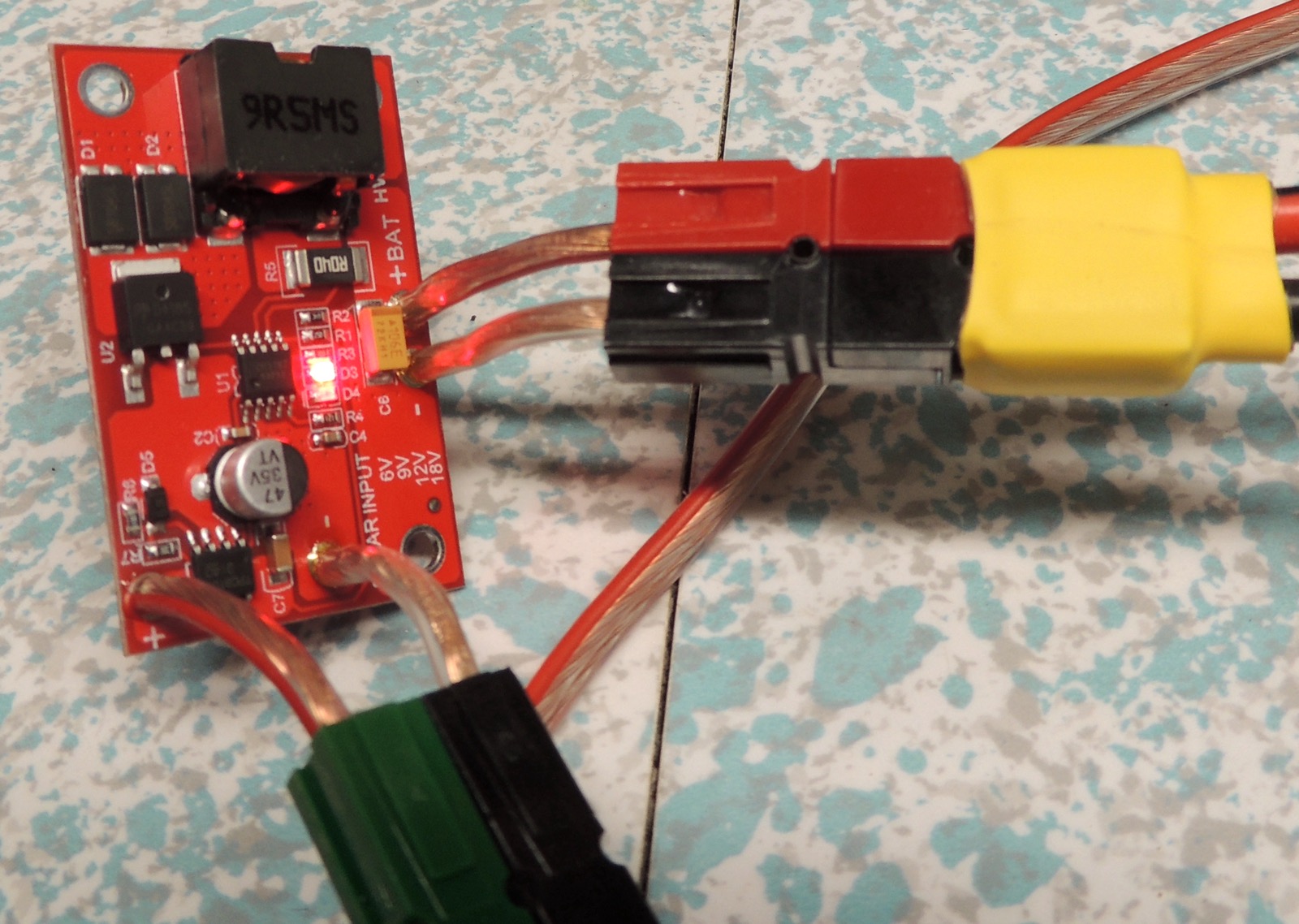

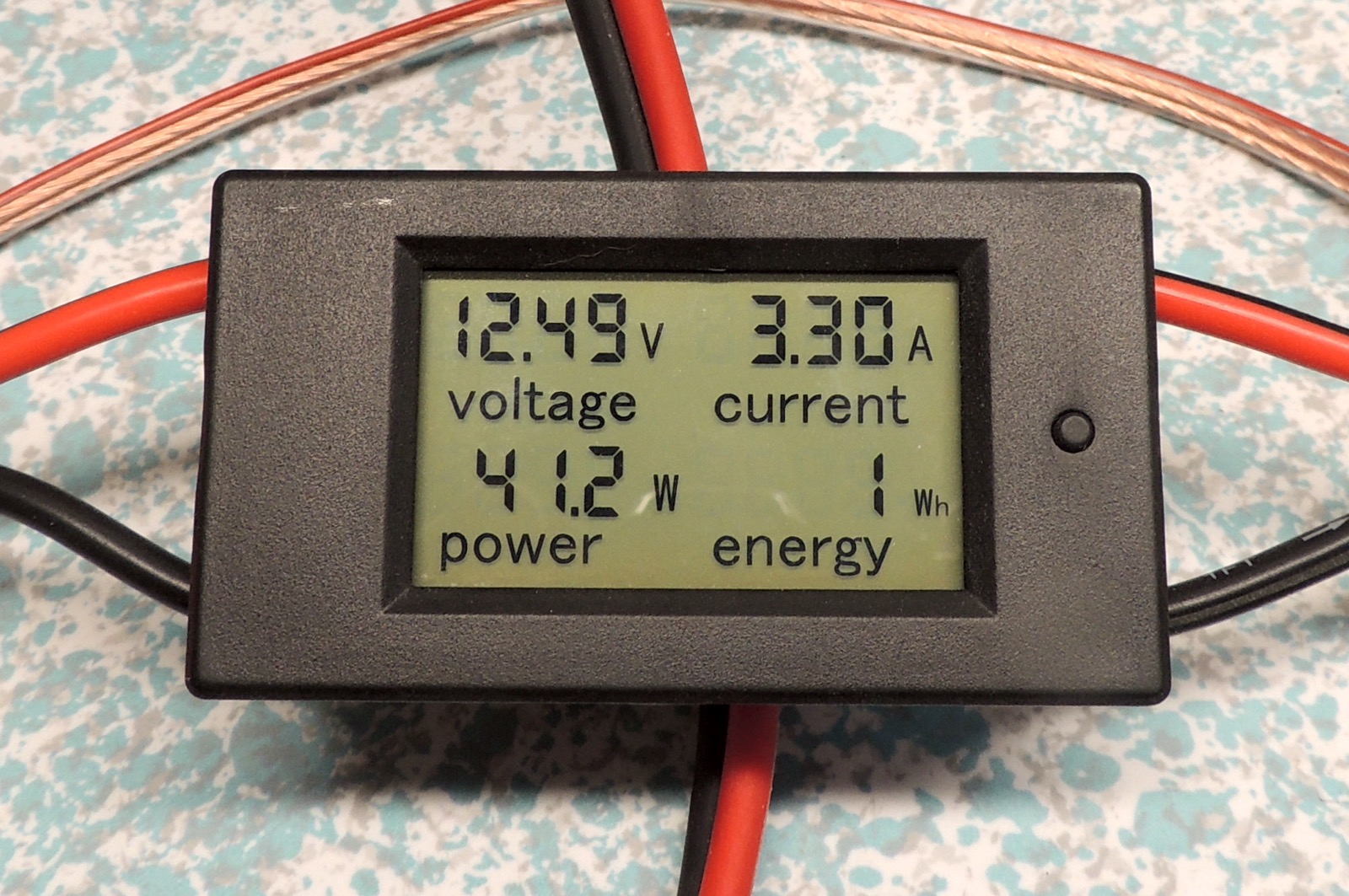

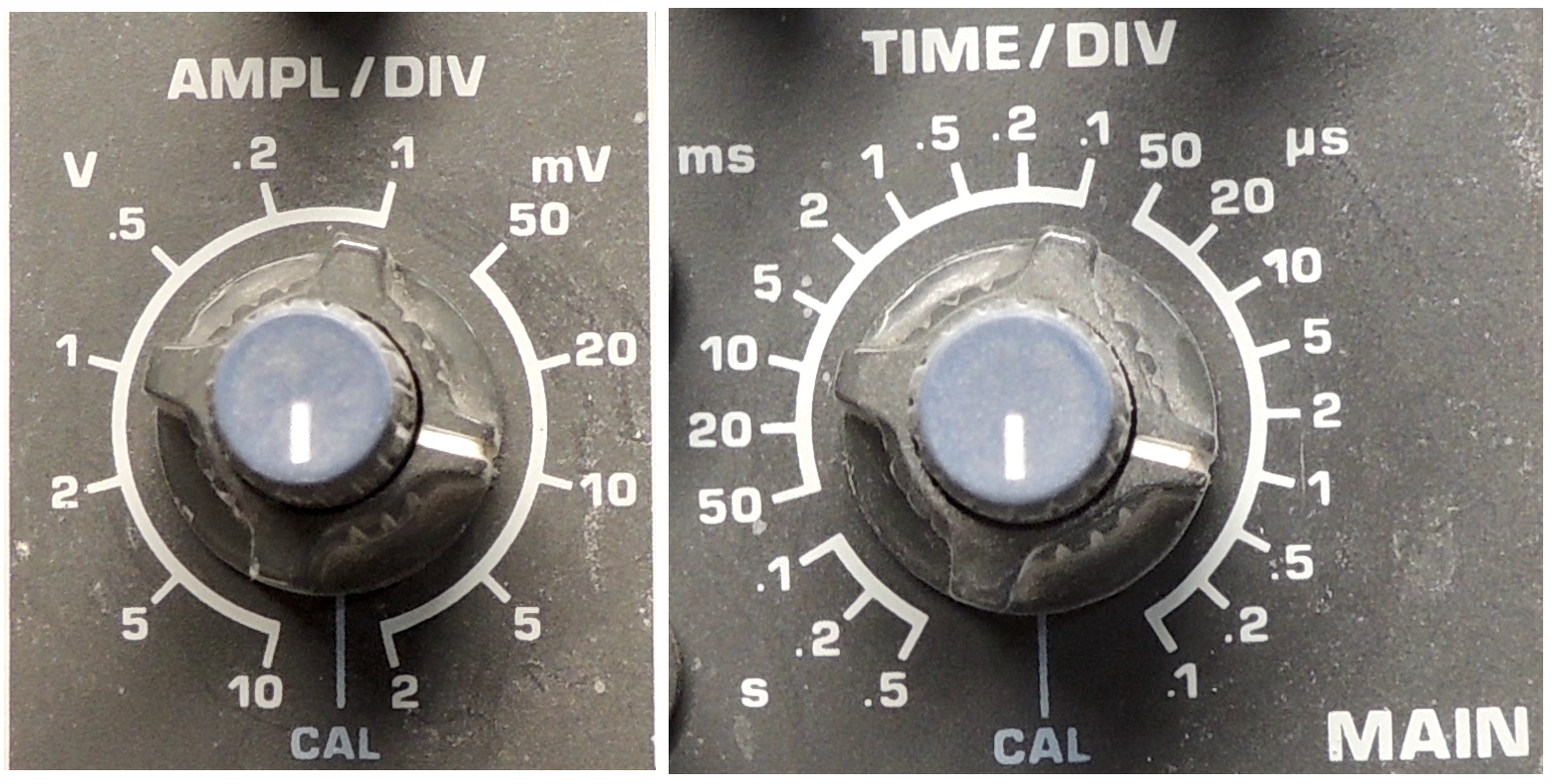

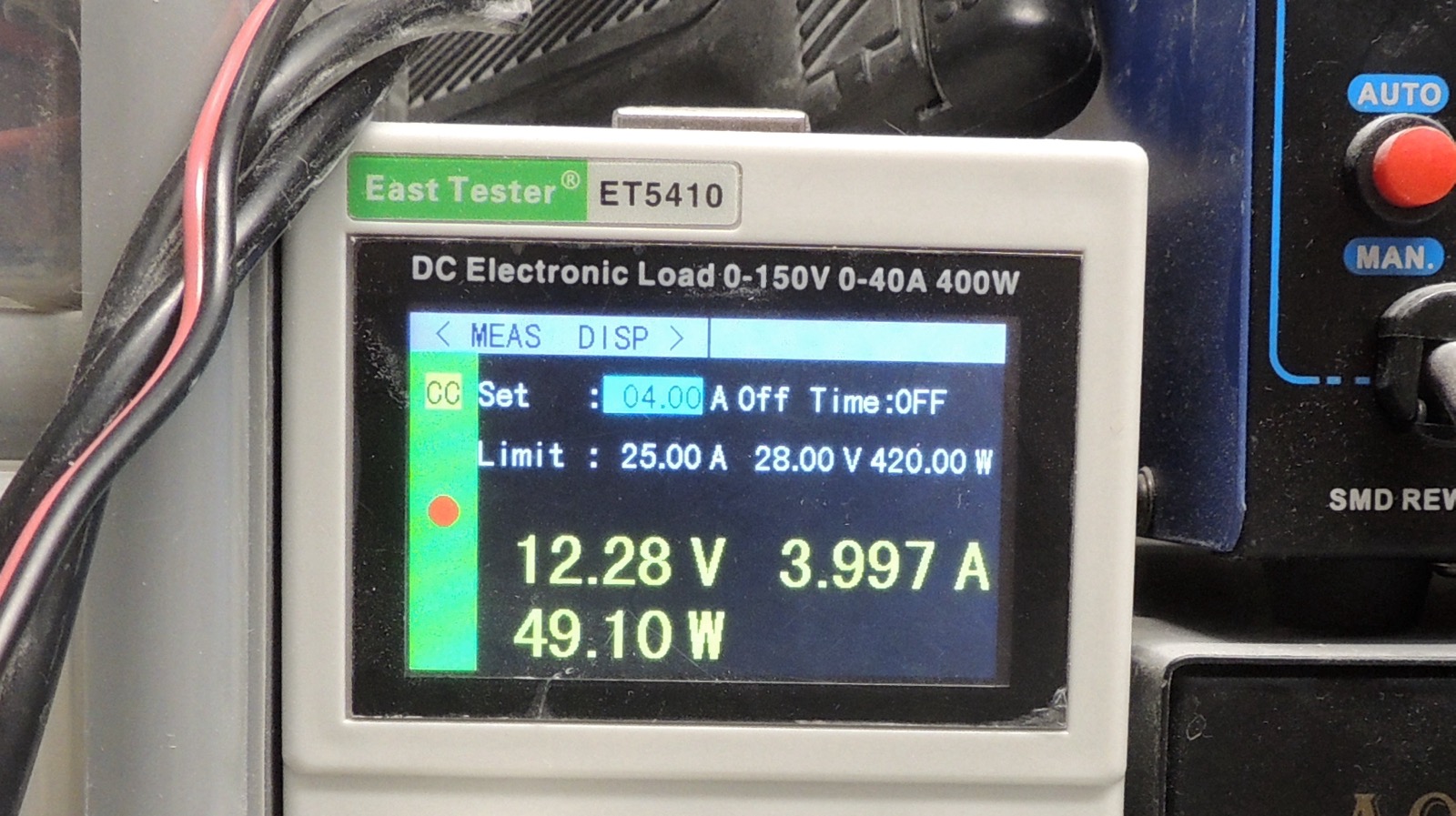

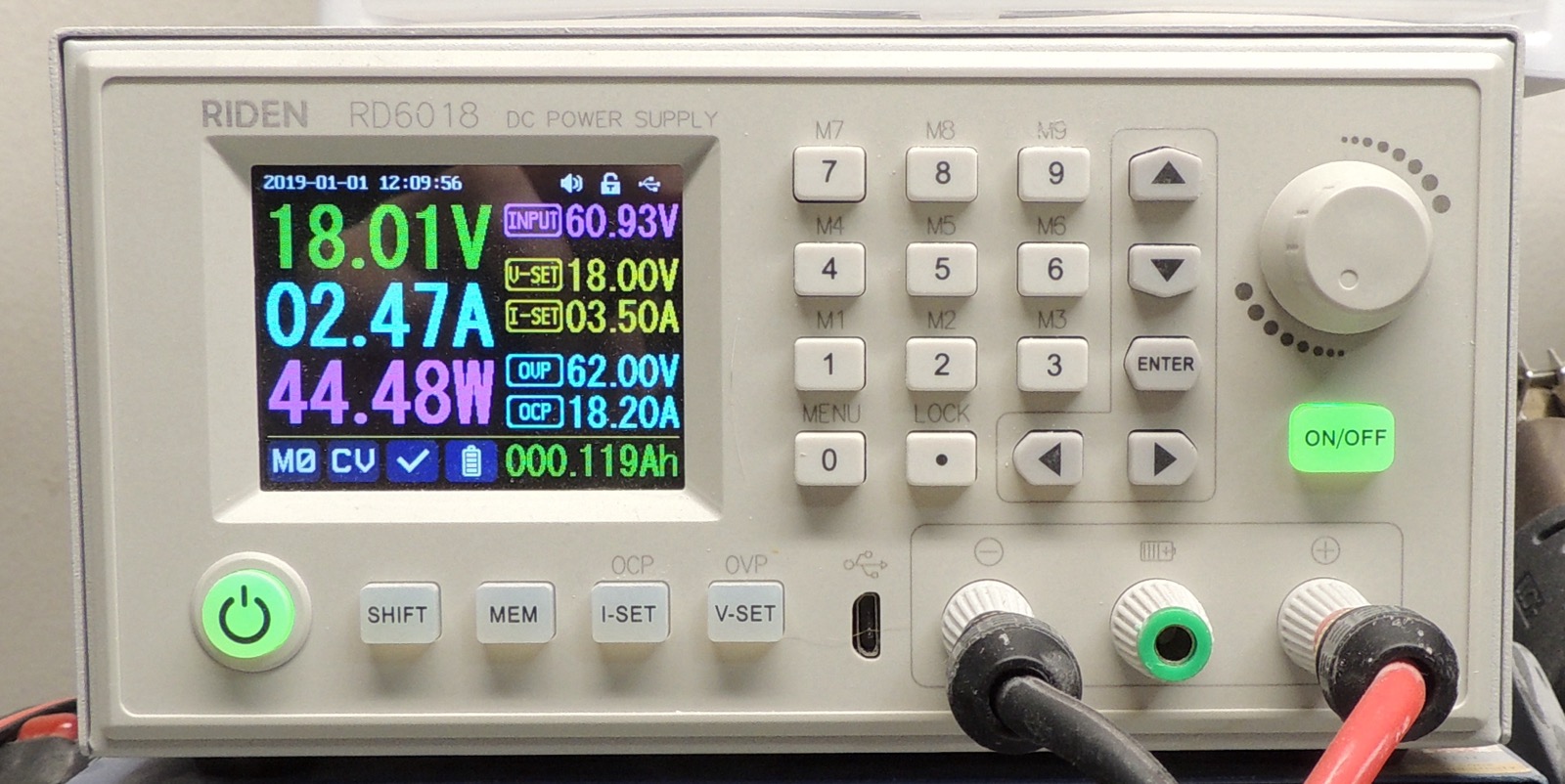

A. 2.47a 47w solar input	B. 3.3a 44w to battery	C. test load 4 amps	D. charge LED lit	E. buck regulator noise	F. 10mV 1uS per div
