100a LCD power meter:




This is the same meter as the 20 amp LCD meter, but uses an external (75mV at 100A) shunt for higher current.



100v 100a power meter ($17 at eBay)

used in

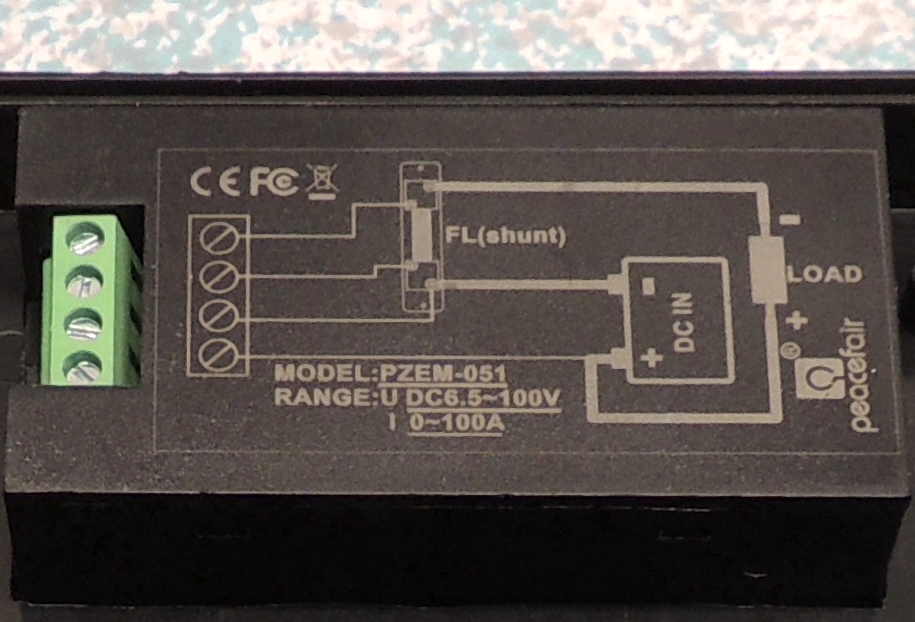

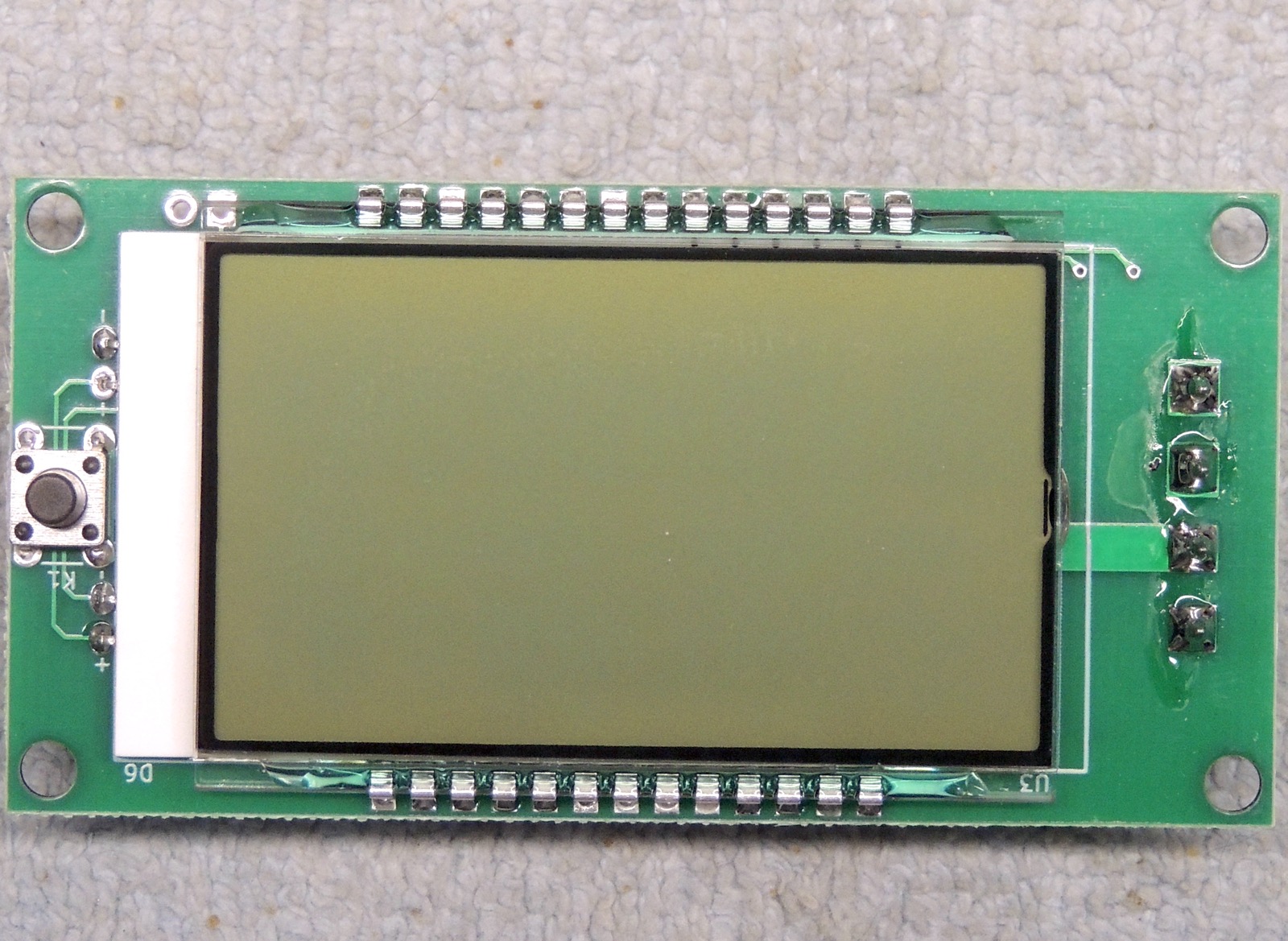

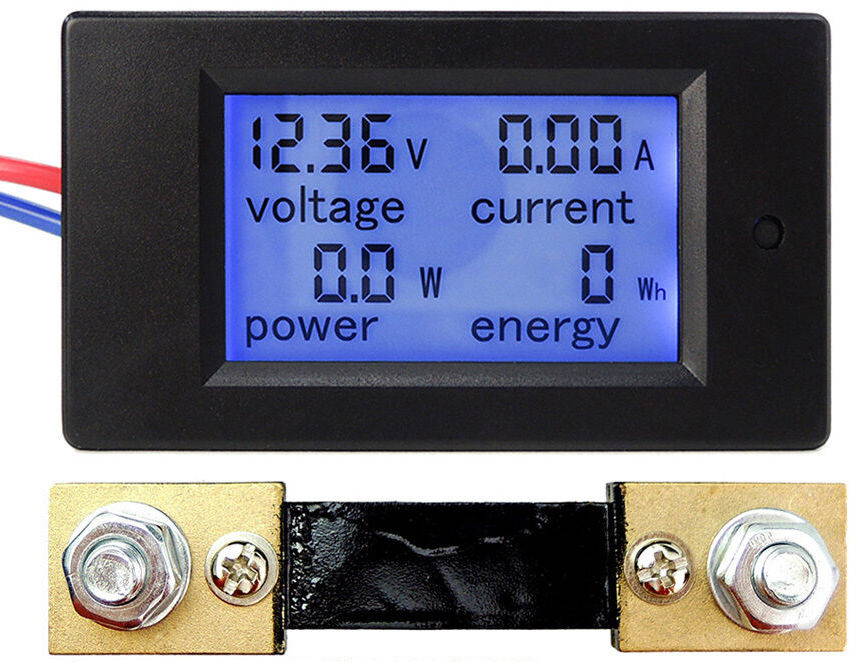

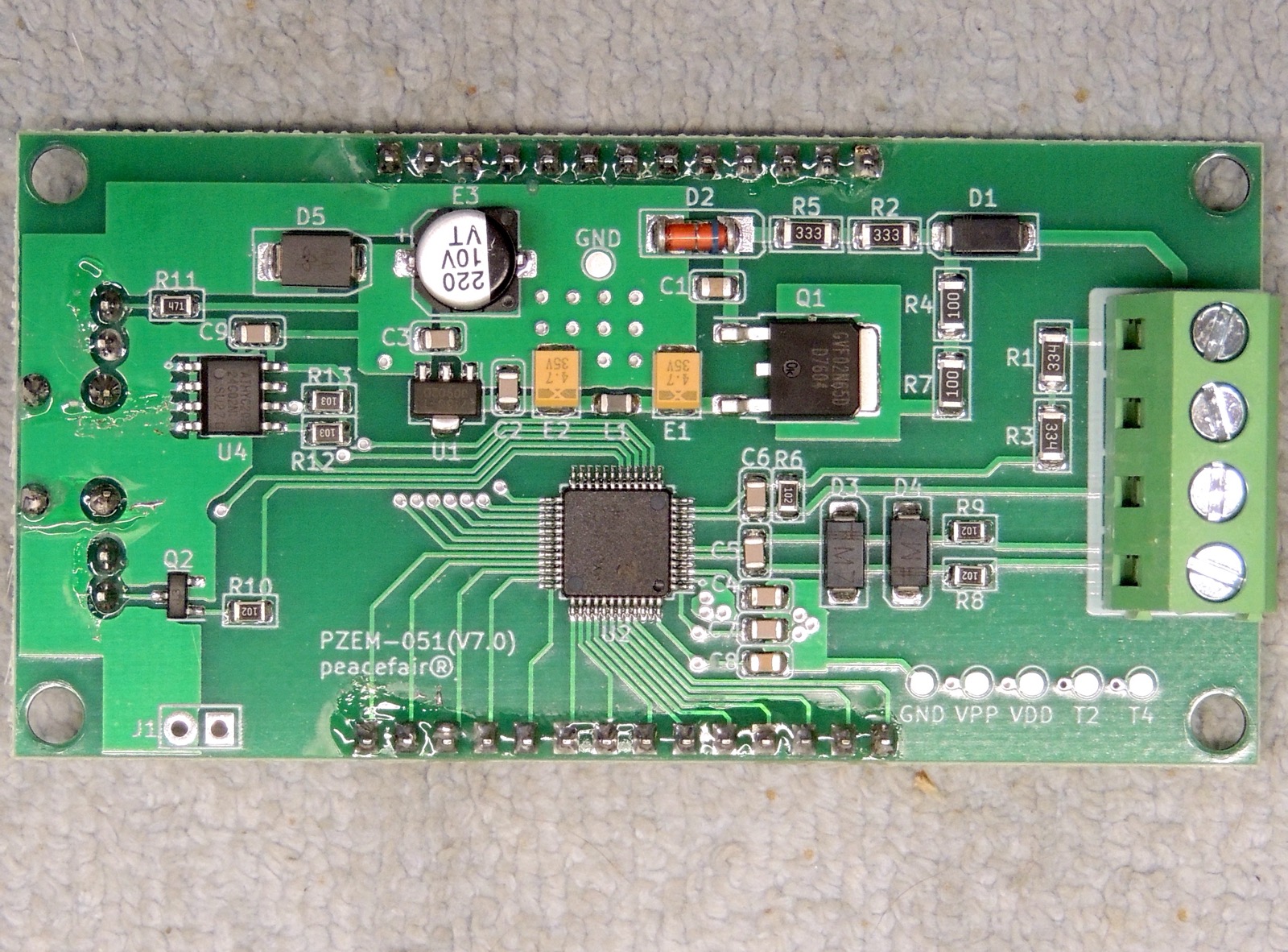

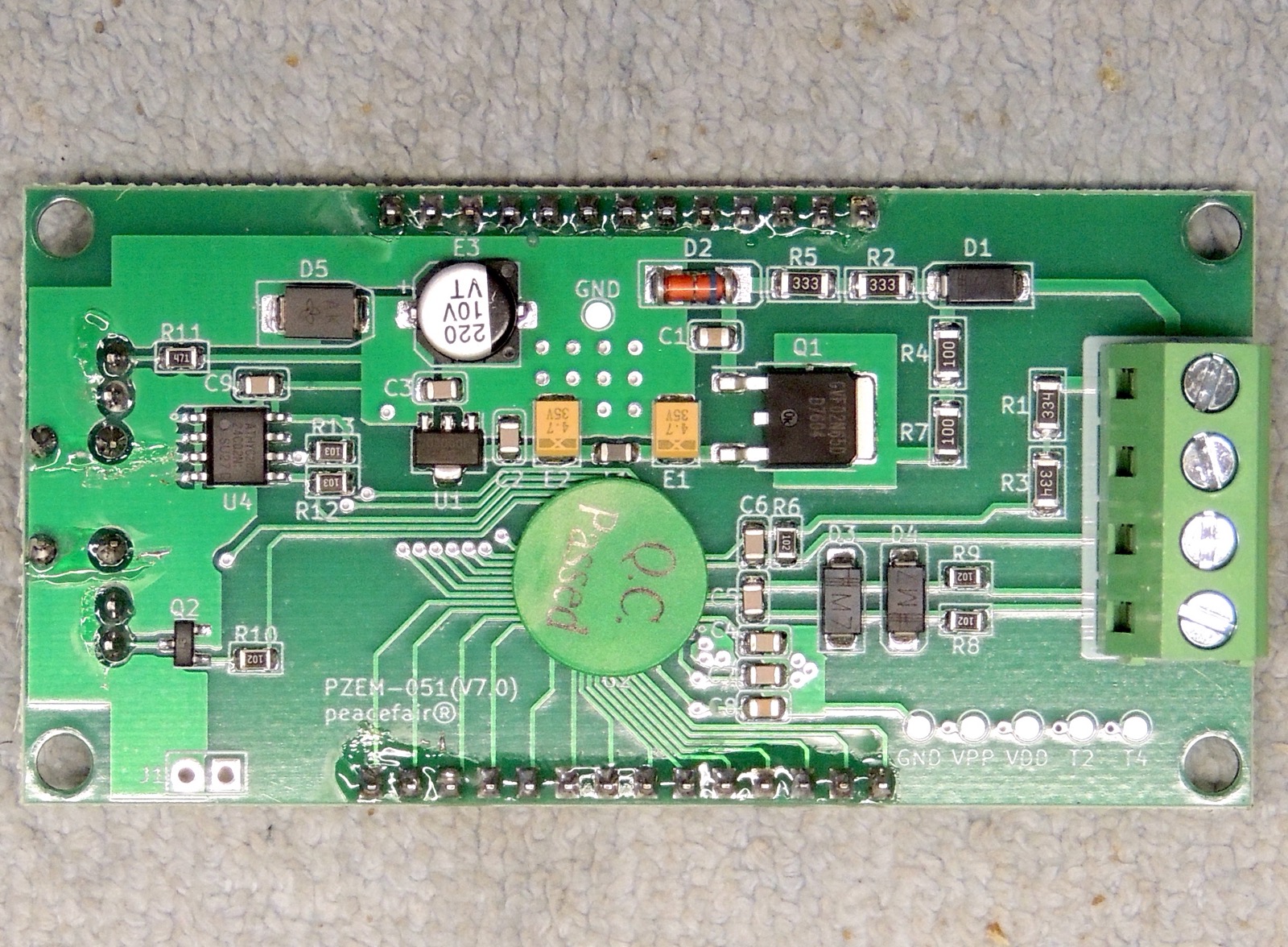

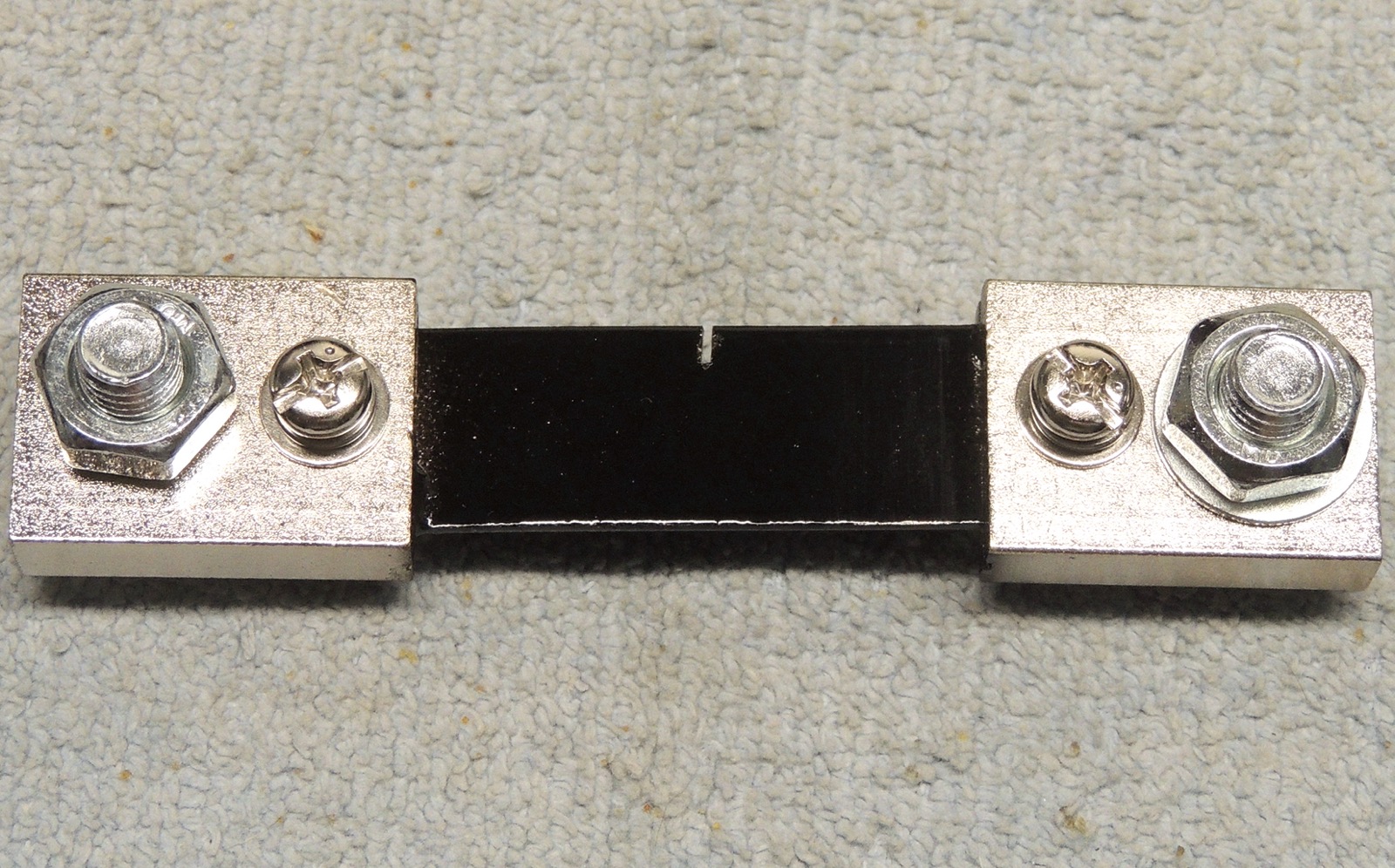

listing	PZEM-051 100A 75mV shunt	PZEM-051 board bottom1	PZEM-051 board bottom2	PZEM-051 board top	PZEM-051 use diagram

highest resolution images
