fuses

The outdoor unit runs on 240vac, fed from the "range" fuse block that holds a pair of 20 amp fuses.
They're marked "HAC-R-20", which is 250v 20 amp time-delay.

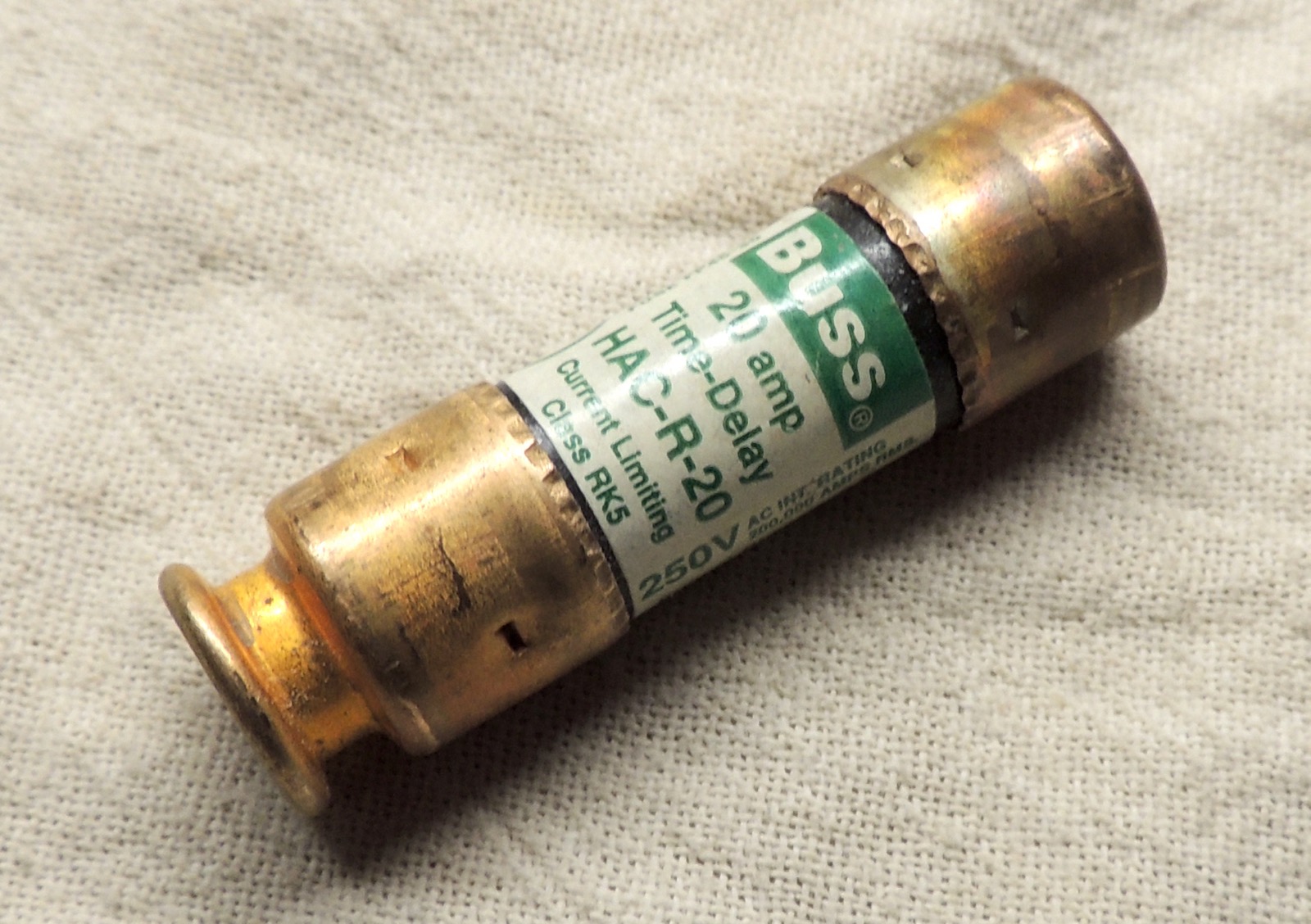

DSCN5921:

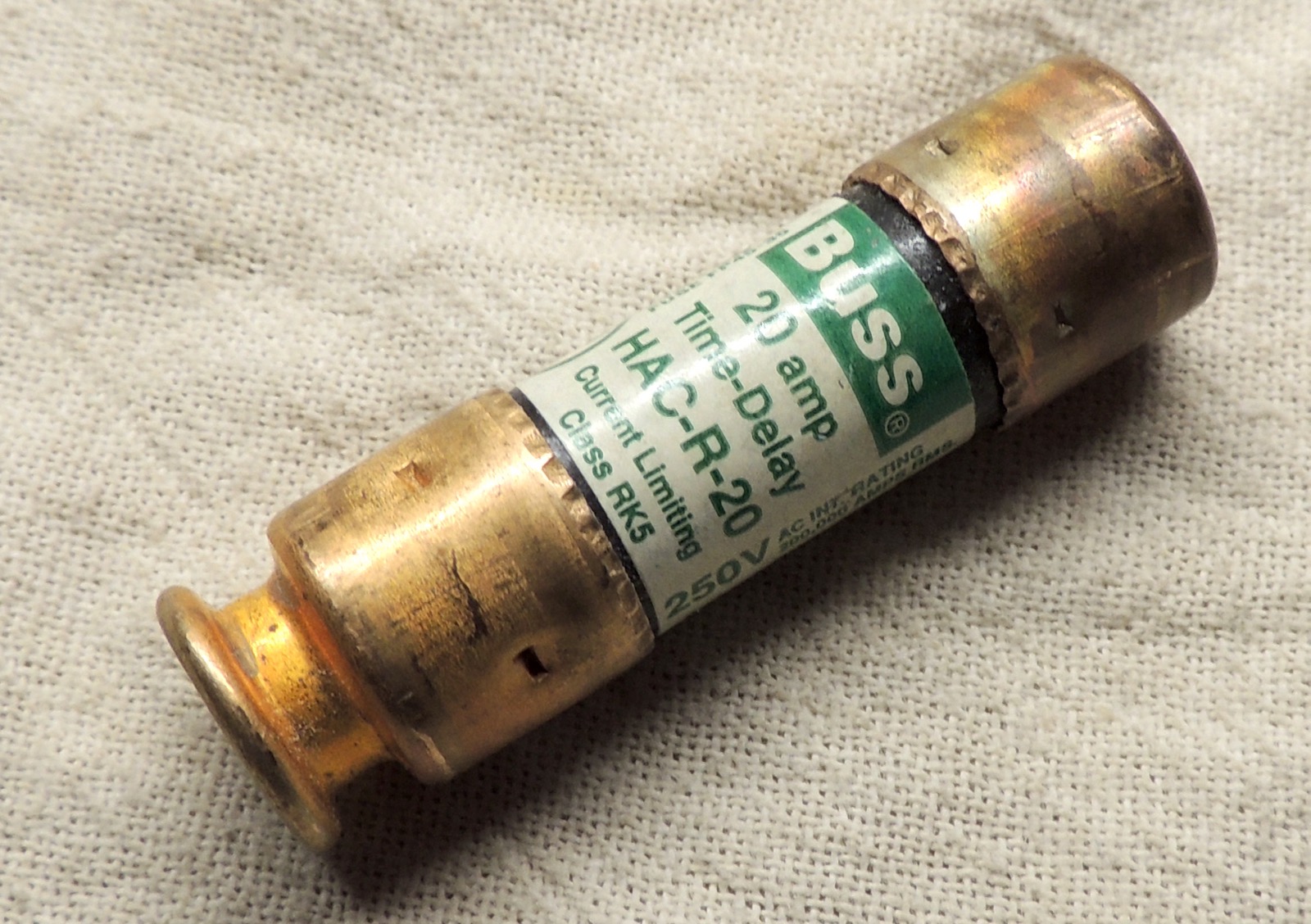

DSCN5922:
