BH distribution:

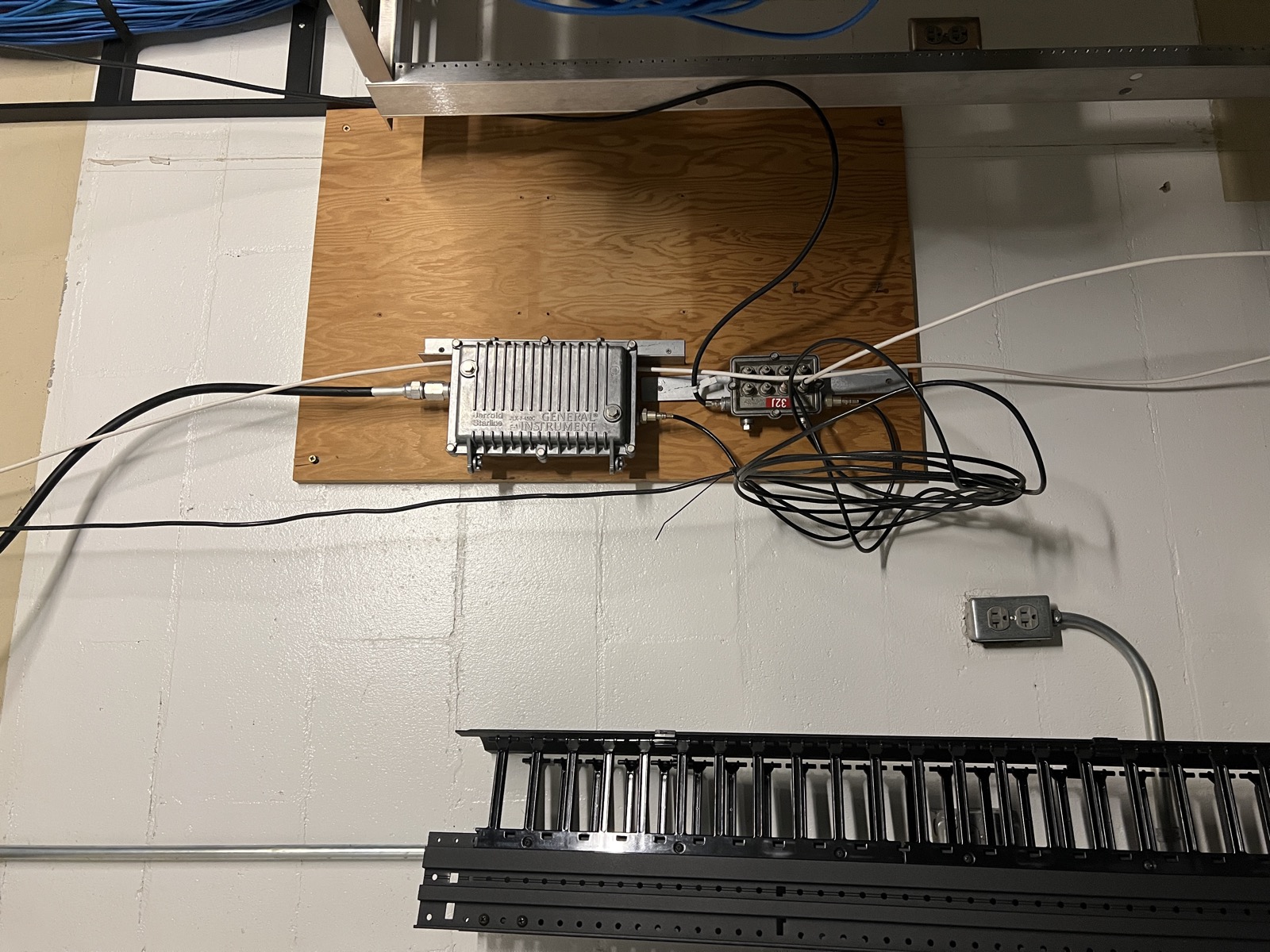

This is an example of a typical building video distribution system (in old Black Hawk), showing the incoming
hardline, distribution amplifier (powered from 56VAC on the trunk from Tama) and the output splitter.



IMG_2221:
