12dB Yagi antenna:




I found this yagi on Ali Express, going to see how well it works. It claims to cover 868, 915, and 923 MHz,
which seems pretty wide-banded for an 8-element yagi. (which may be why the gain isn't higher)

I 'd like to try linking from home to work, though it probably won't work without a better antenna at work
since our office is on the opposite side of the building and is basically underground.

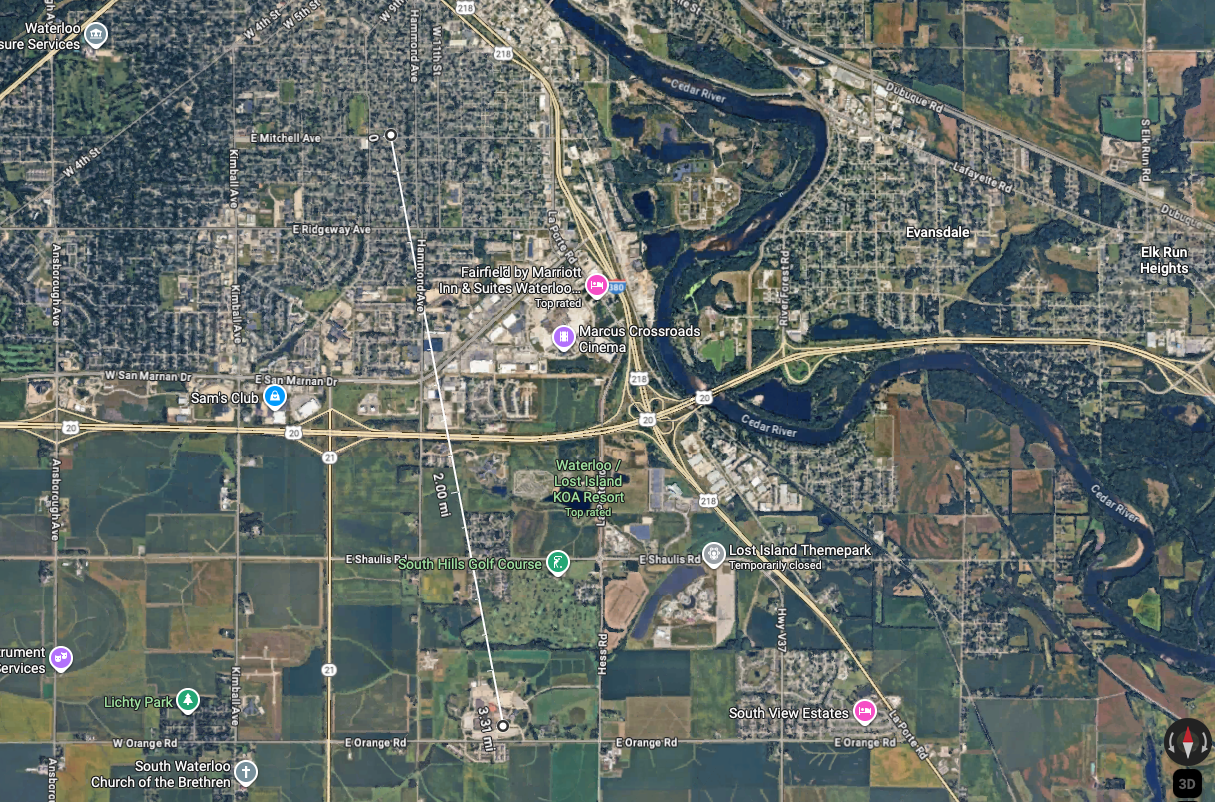

I'll try setting it up in the attic, aimed at work. It's 3.3 miles, about 20 degrees East of South.

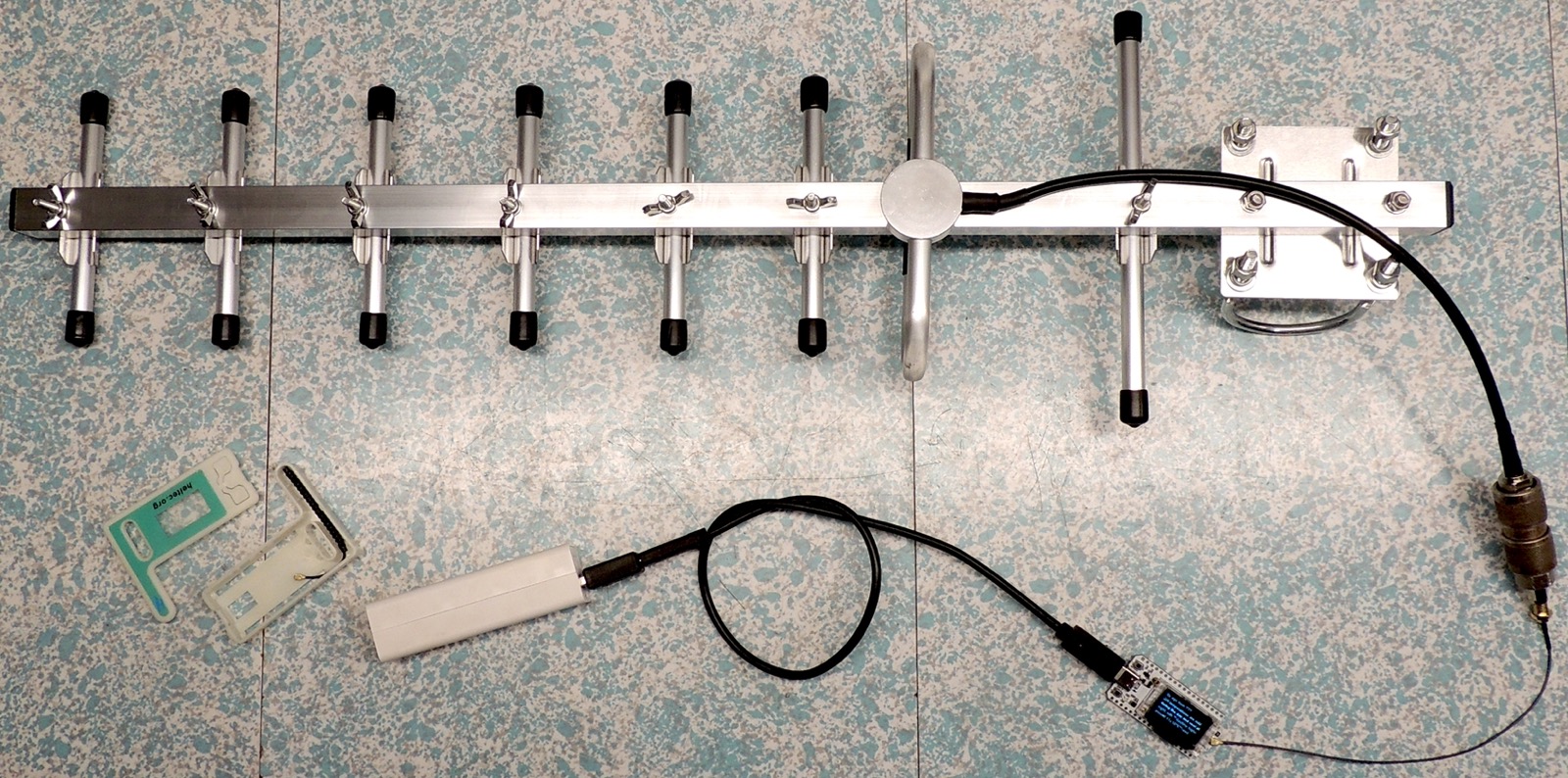

The coax on the antenna is N-F, so I'll need to pick up an N-to-U.FL pigtail or use a bunch of adapters.



12dBi LoRa Yagi ($41 at Ali Express)

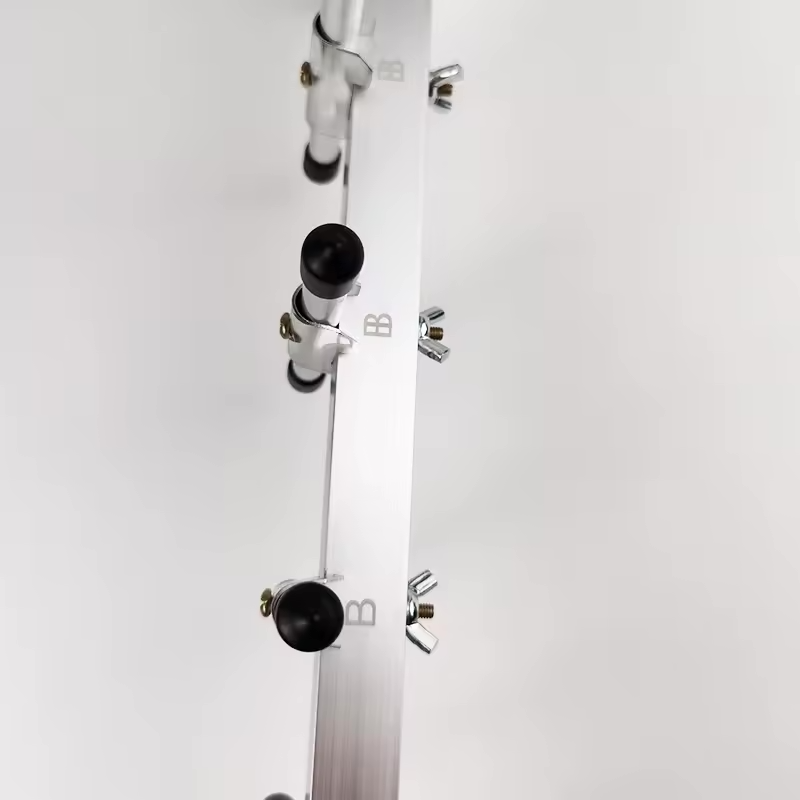

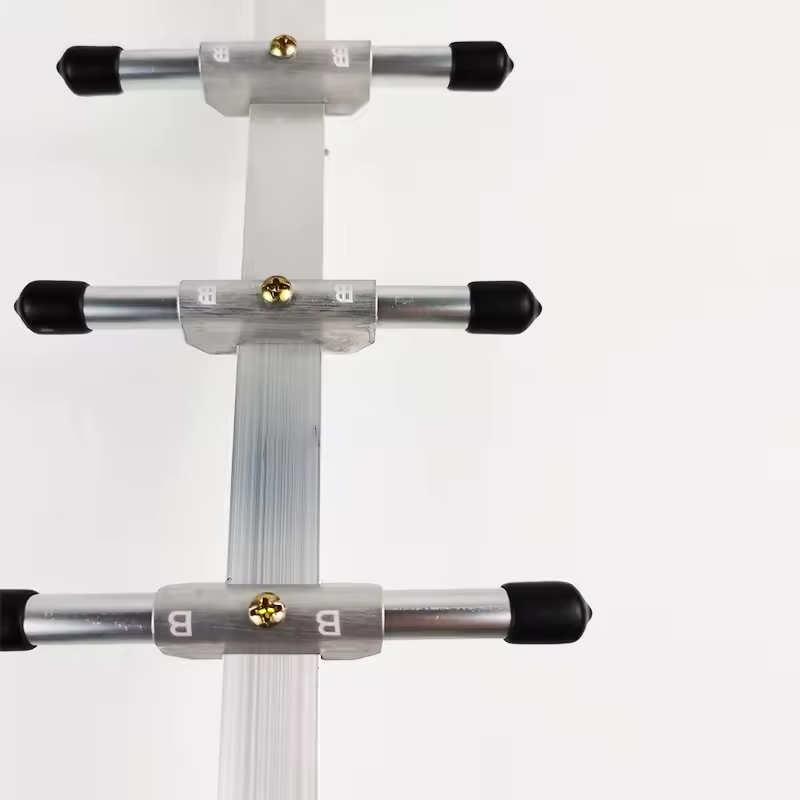

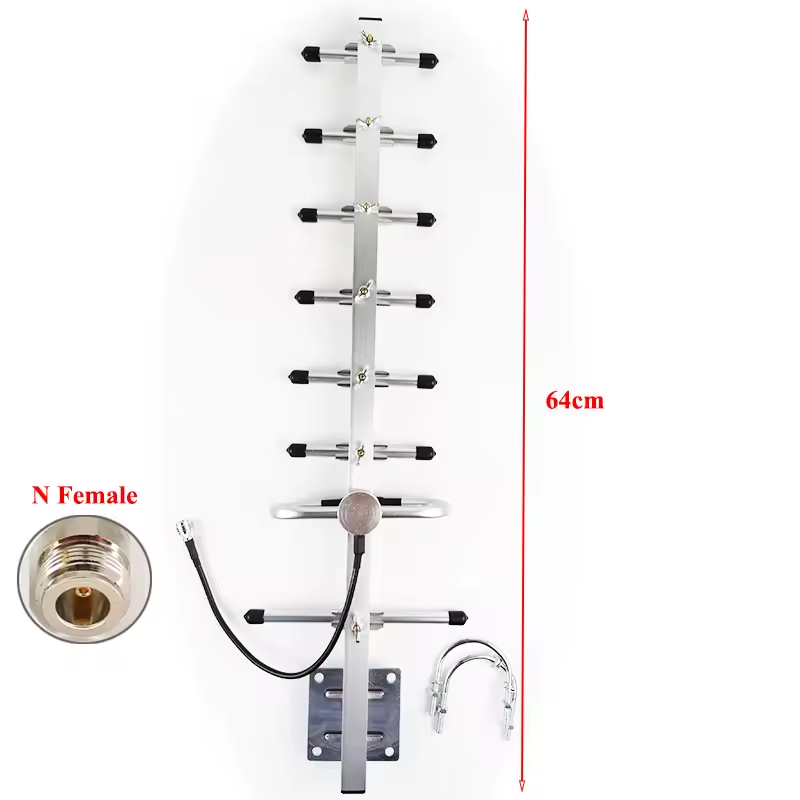

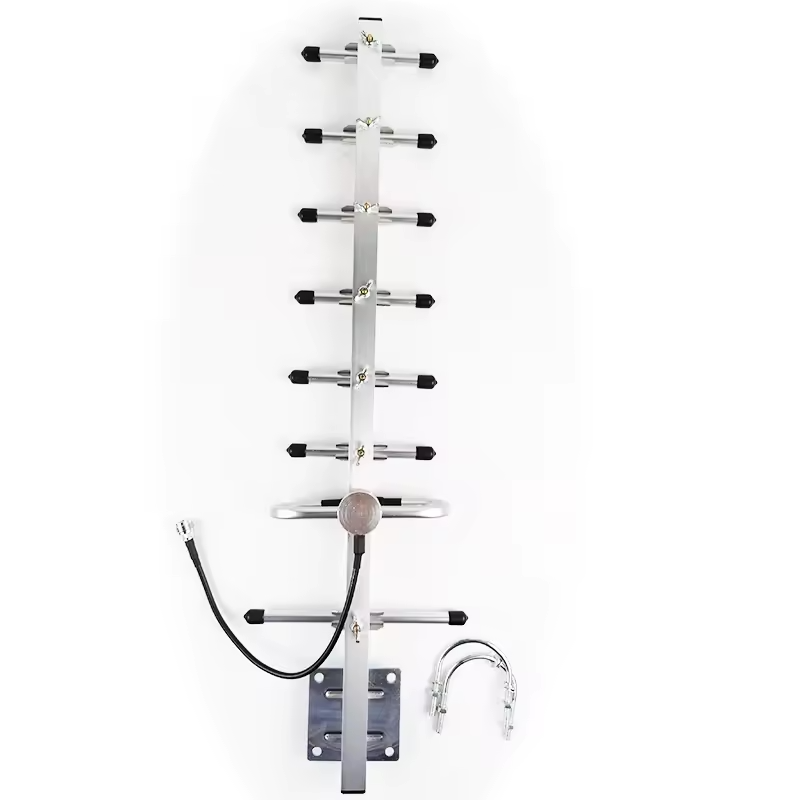

2025.11.20 18.55.59	3.3 mile shot	yagi close 1	yagi close 2	yagi dimensions	yagi full
