PCB and schematics:

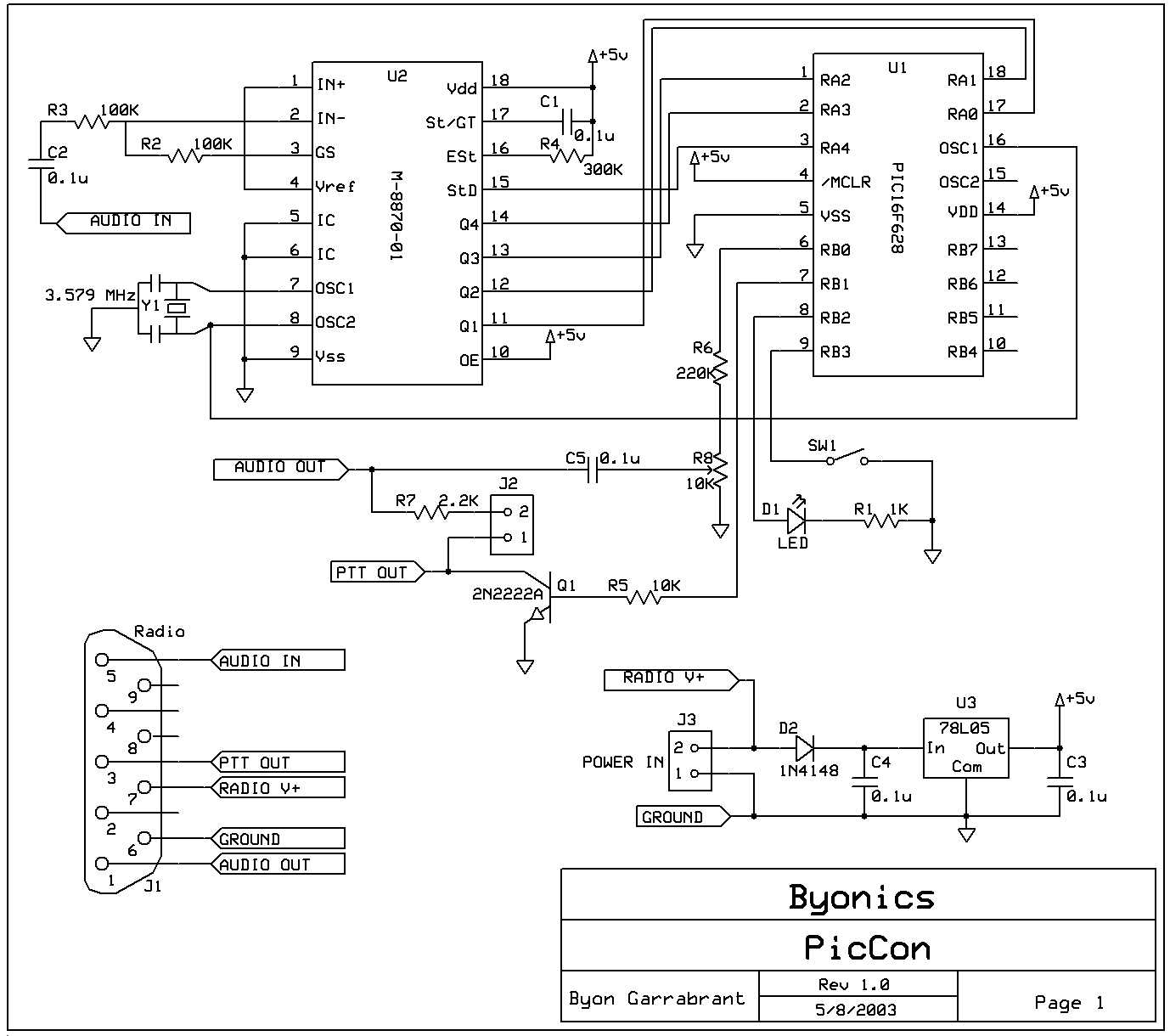

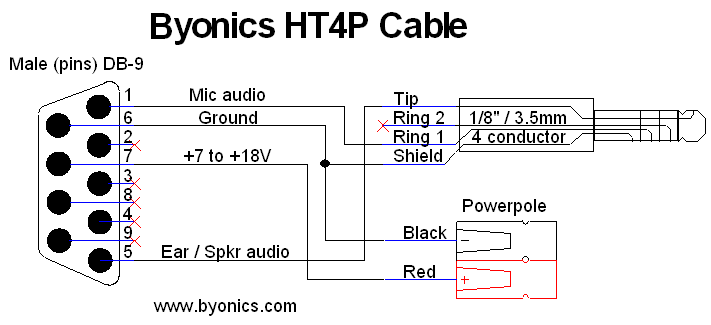

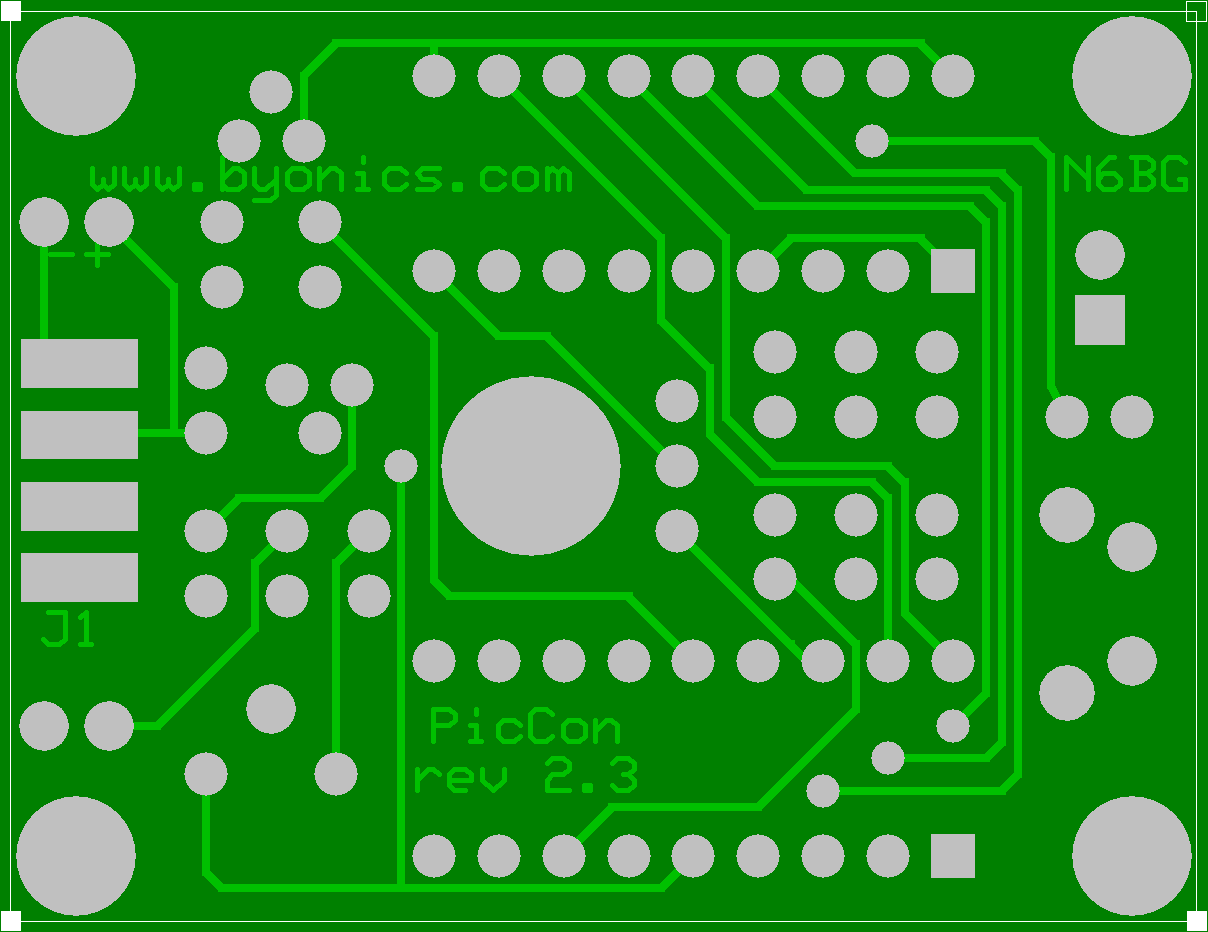

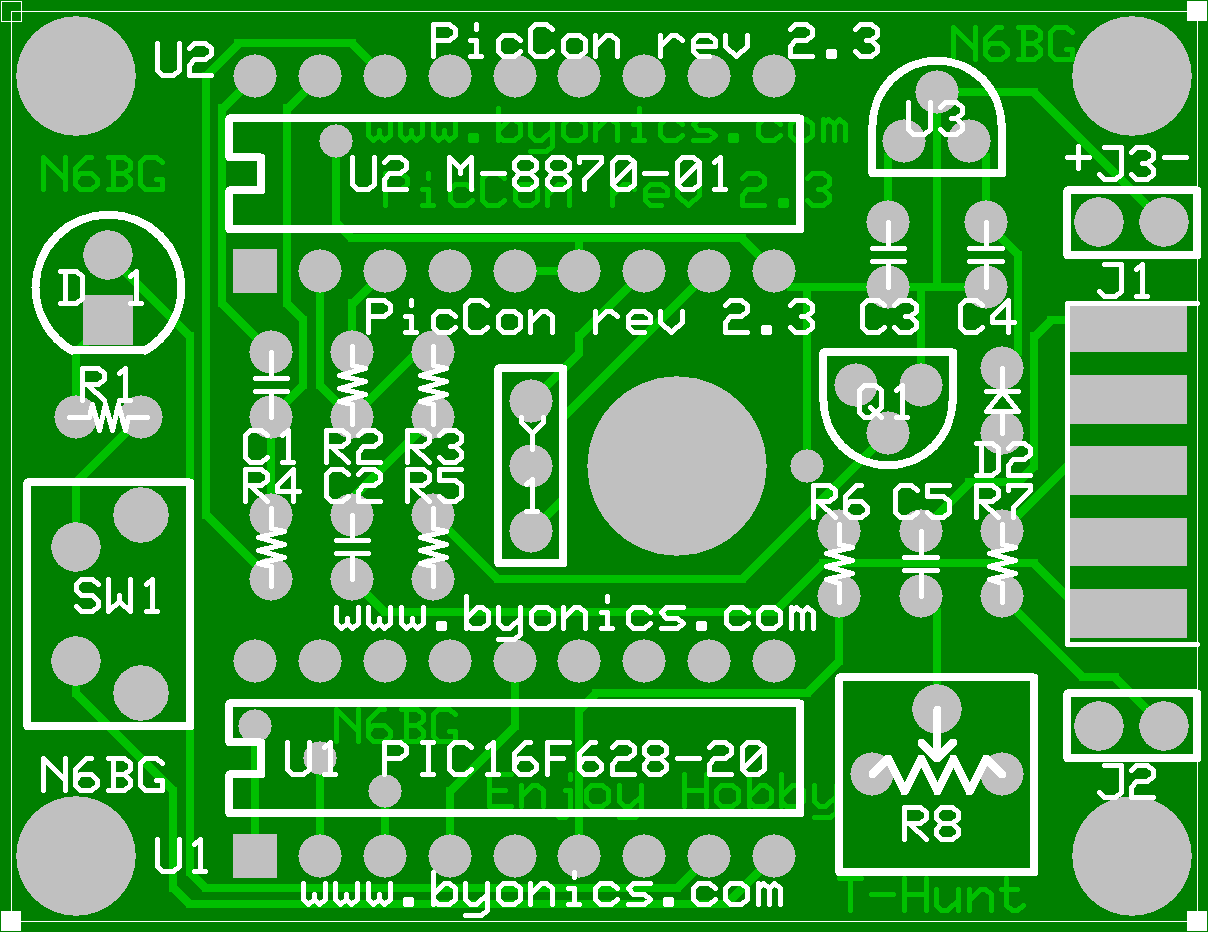

HT4P wiring (PTT on mic audio pin)	piccon_pcb	piccon_pcb_back	piccon_schematic

highest resolution images
