round waterproof connectors:


This looks like the connector that CDE rotors are somewhat standardizing on. It's a 9 pin connector, where
only pins 1-8 are used. It's a HSG inline waterproof connector, AMP brand, sold by TE Connectivity.

MFJ made them for awhile, and are the easiest to find (while they last)

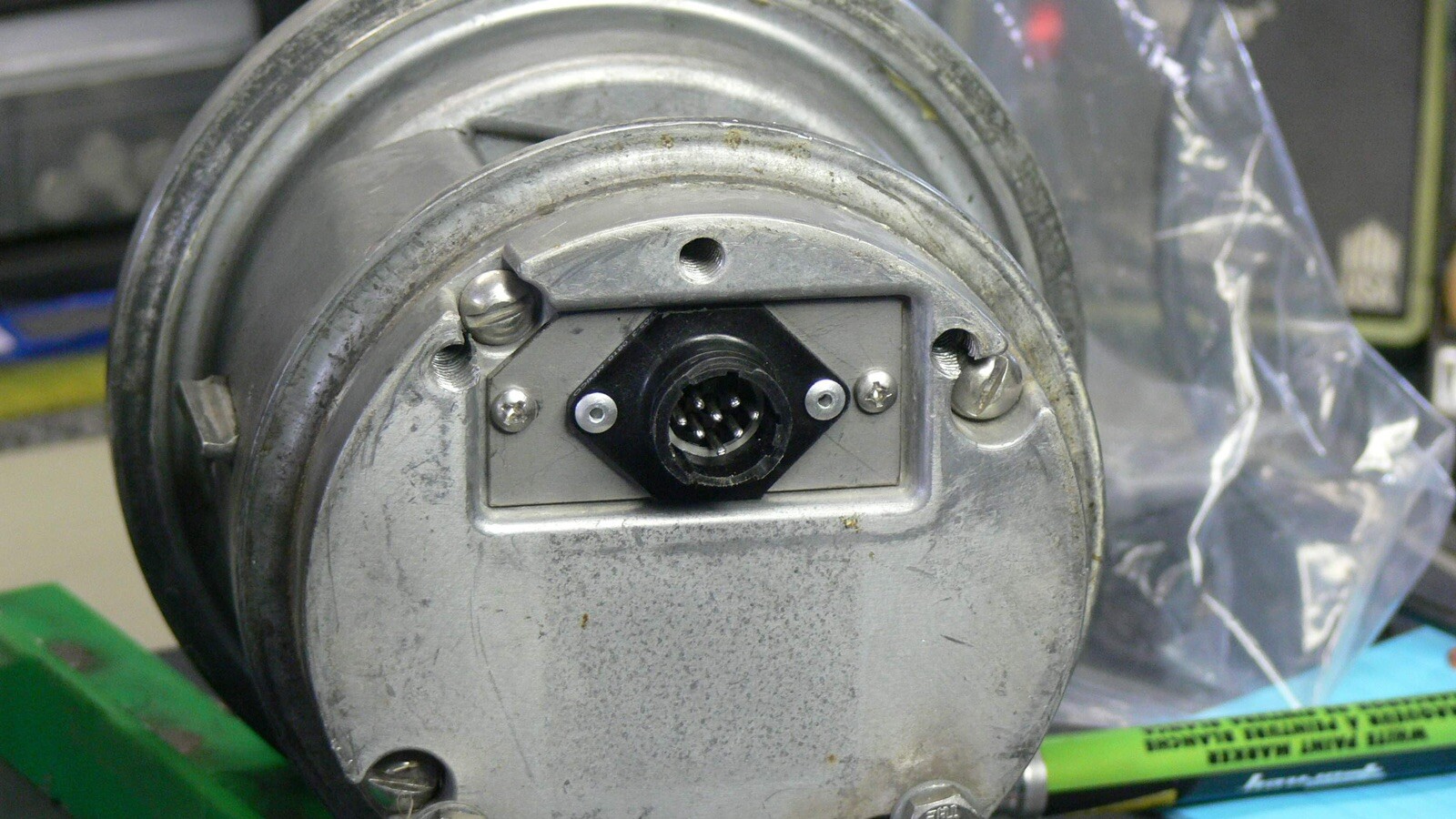

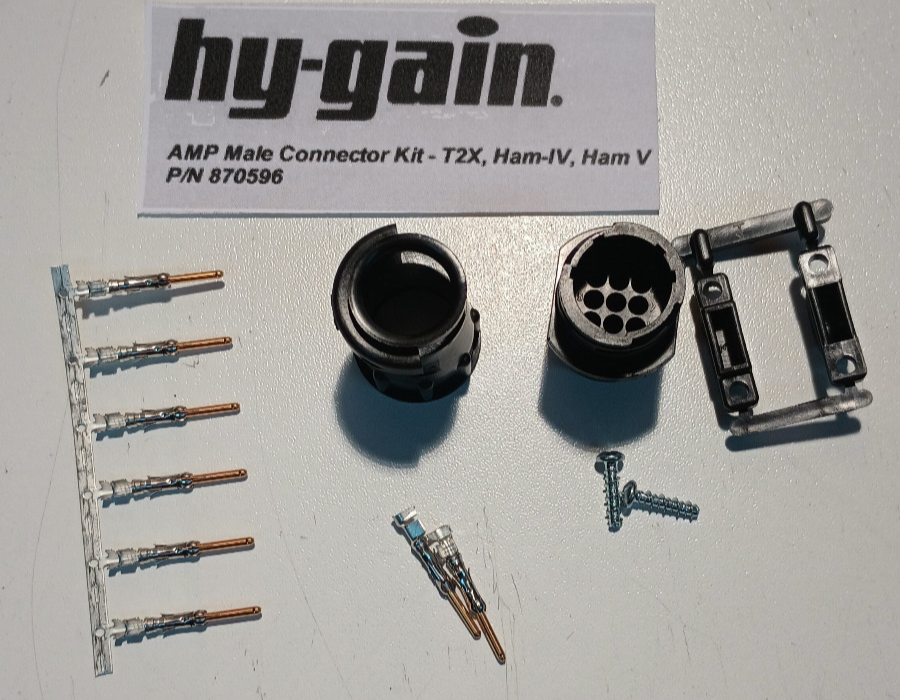

MFJ-870596 male (rotor) cable end connector kit

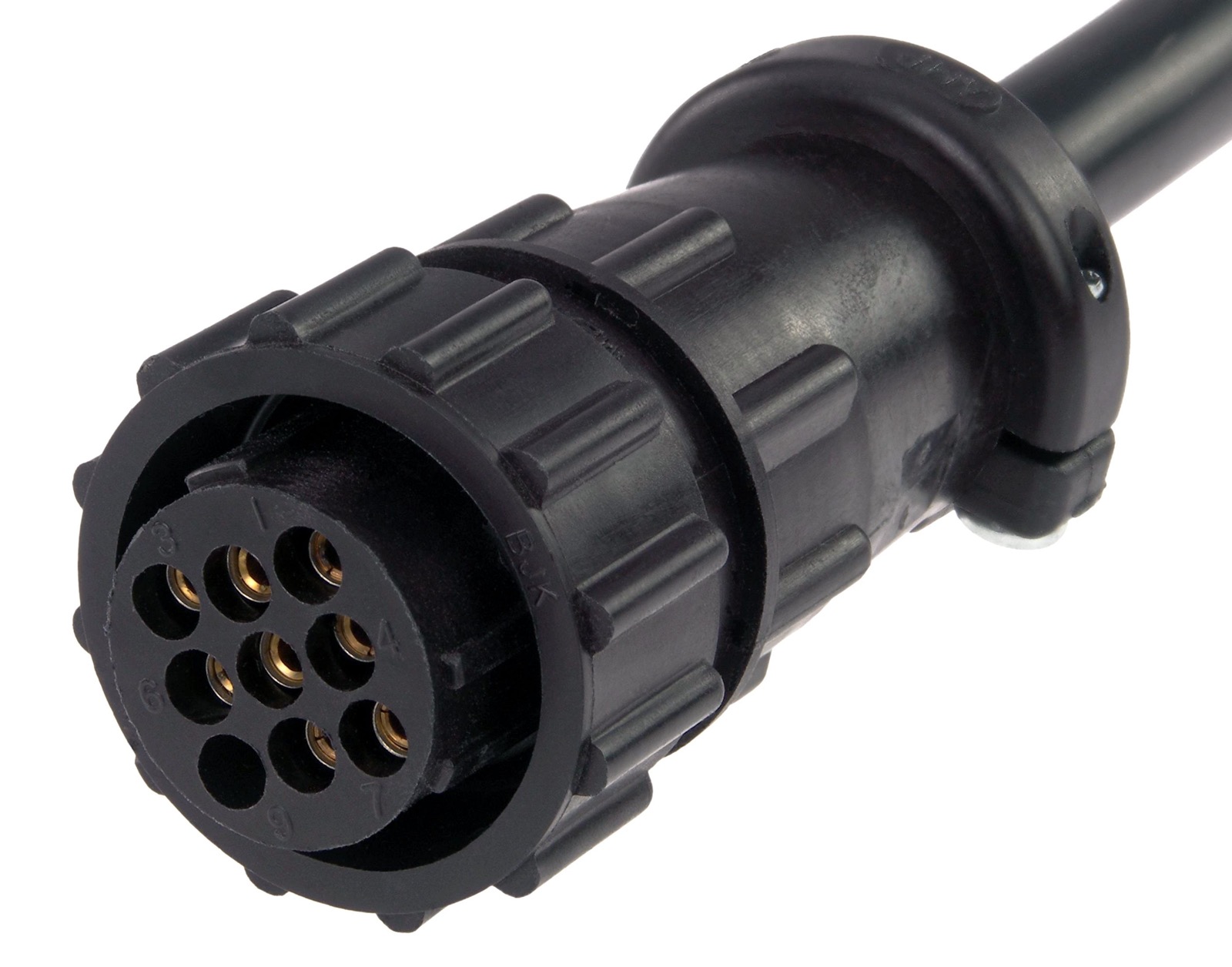

MFJ-870597 female (control) cable end connector kit

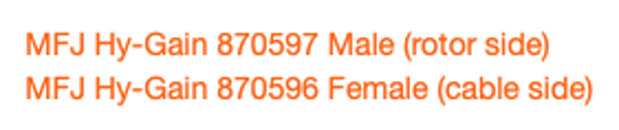

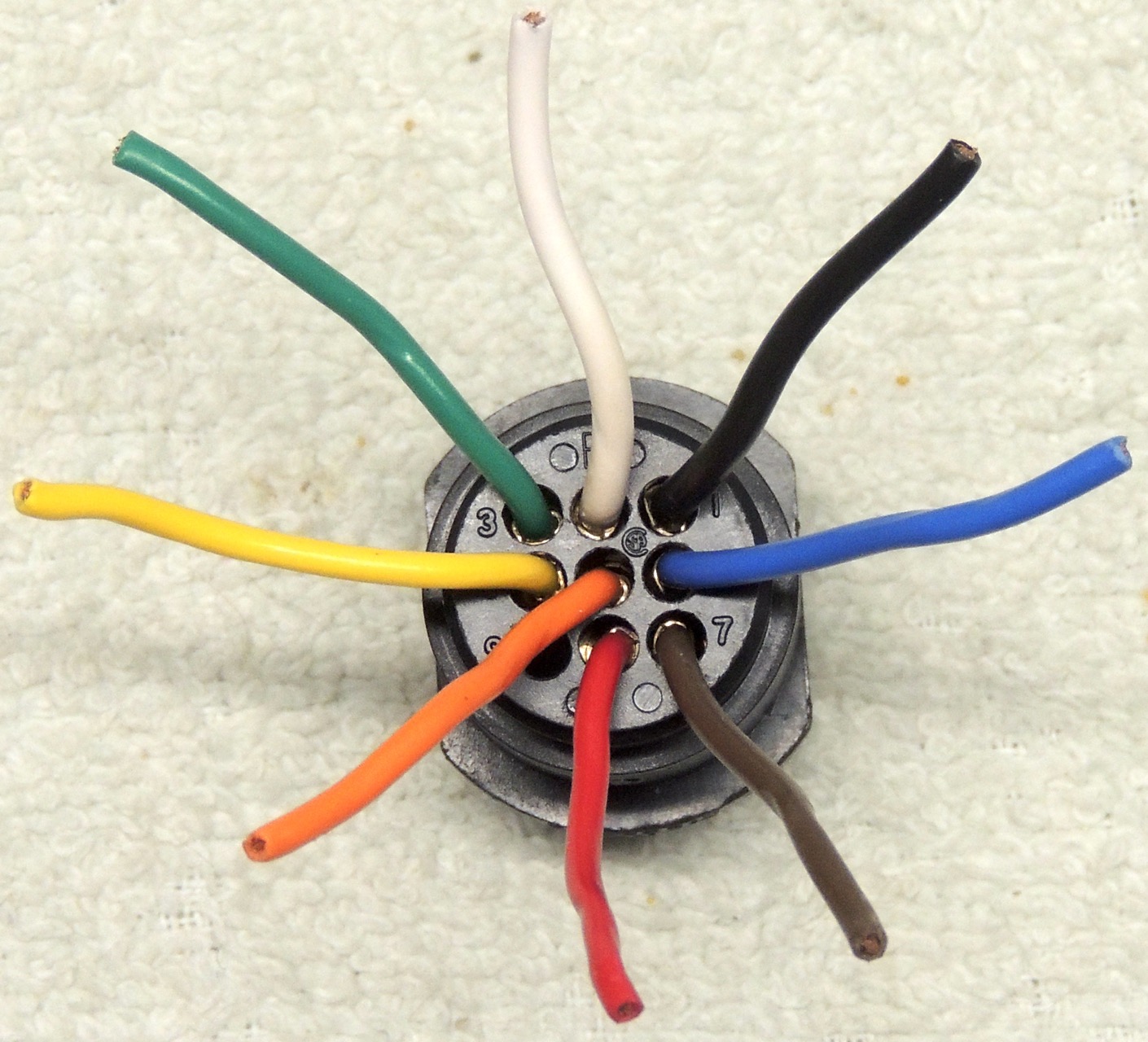

I've verified the color code as the standards for the AMP/MFJ round connector.
Black/White are heavier gauge than the other six wires.



AMP MFJ 870596 ($35 at HamSupply)


AMP MFJ 870597 ($35 at HamSupply)


Connector for HyGain rotors female (e34 at Wimo)


Contact set Hy-Gain T2X (out of stock at DX Supply)


female bulkhead mount (at DigiKey)


MFJ 870596 male kit ($35 at eBay)


MFJ 870597 (search at eBay)

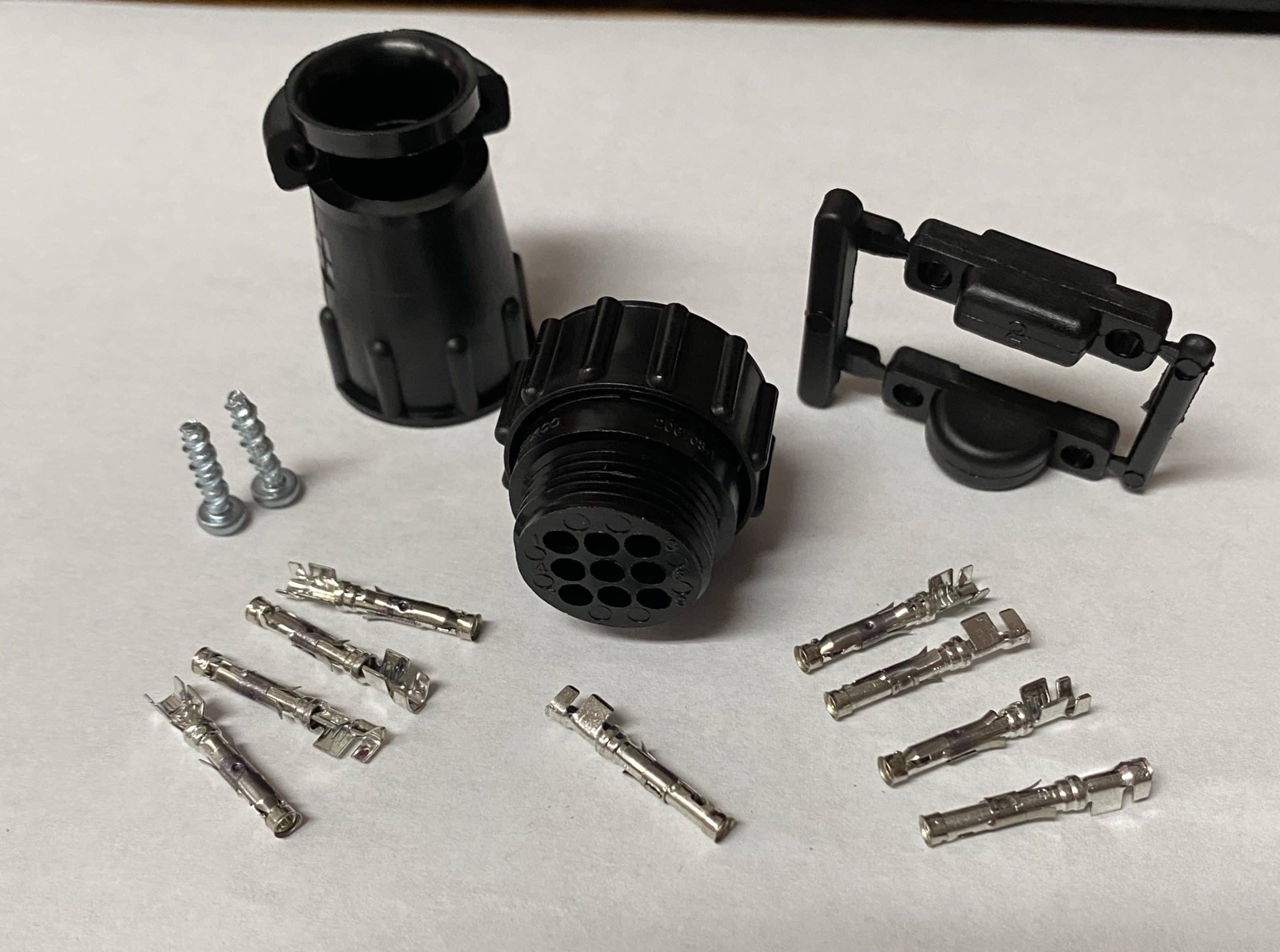

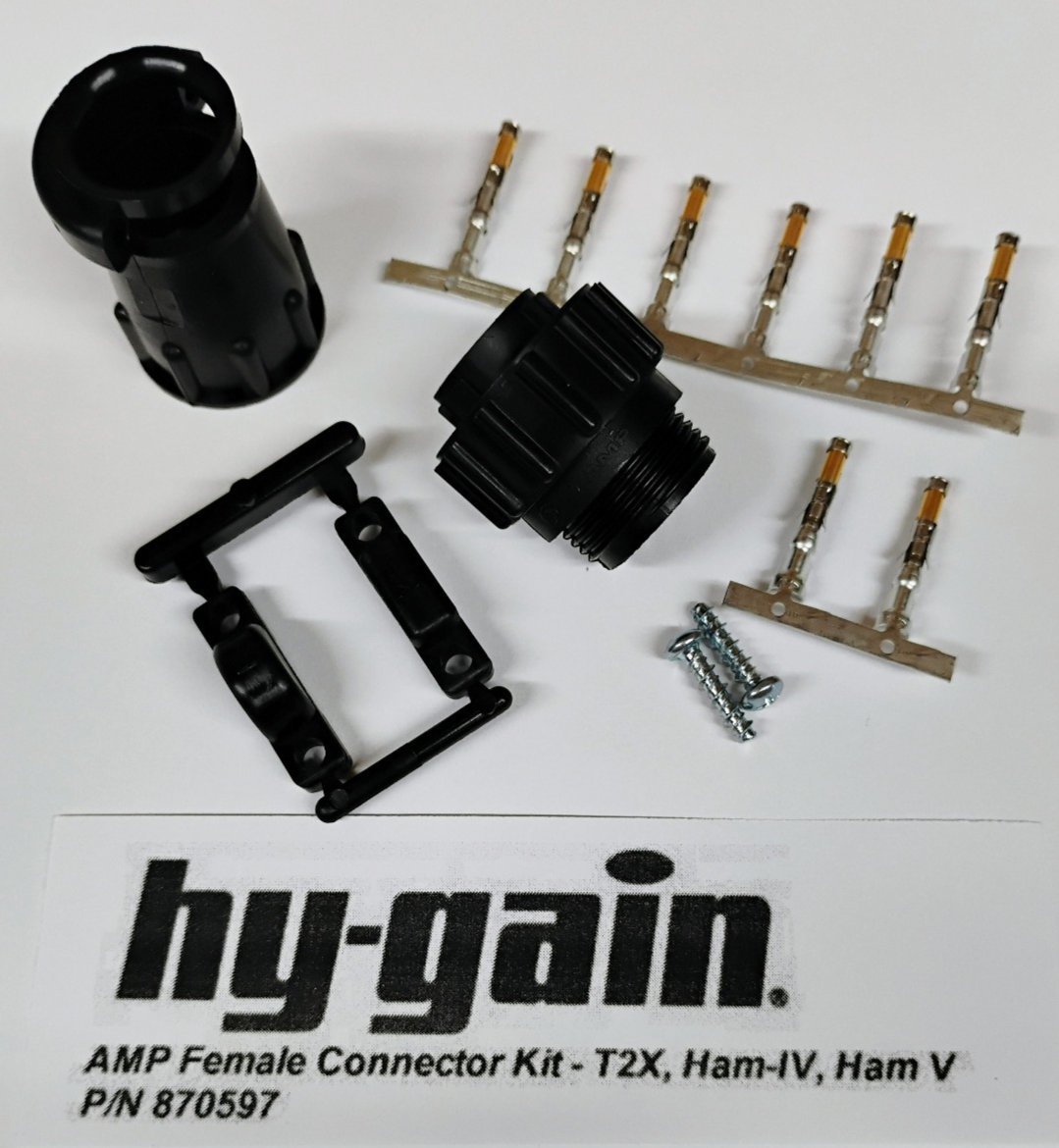

MFJ-870597 female kit ($32 at eBay)


MFJ-870597 female kit ($35 at Wireman)

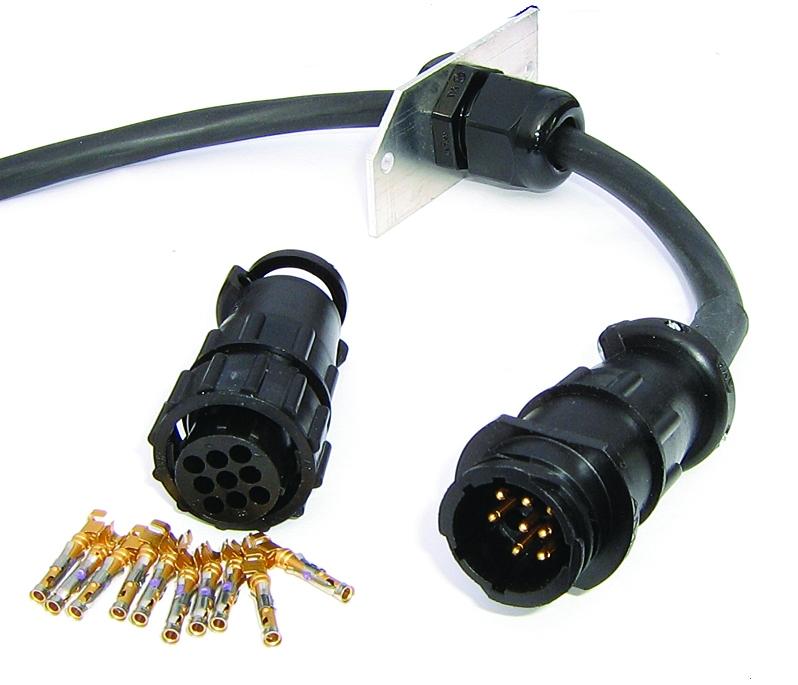

pigtail conversion kit (out of stock at DX Supply)

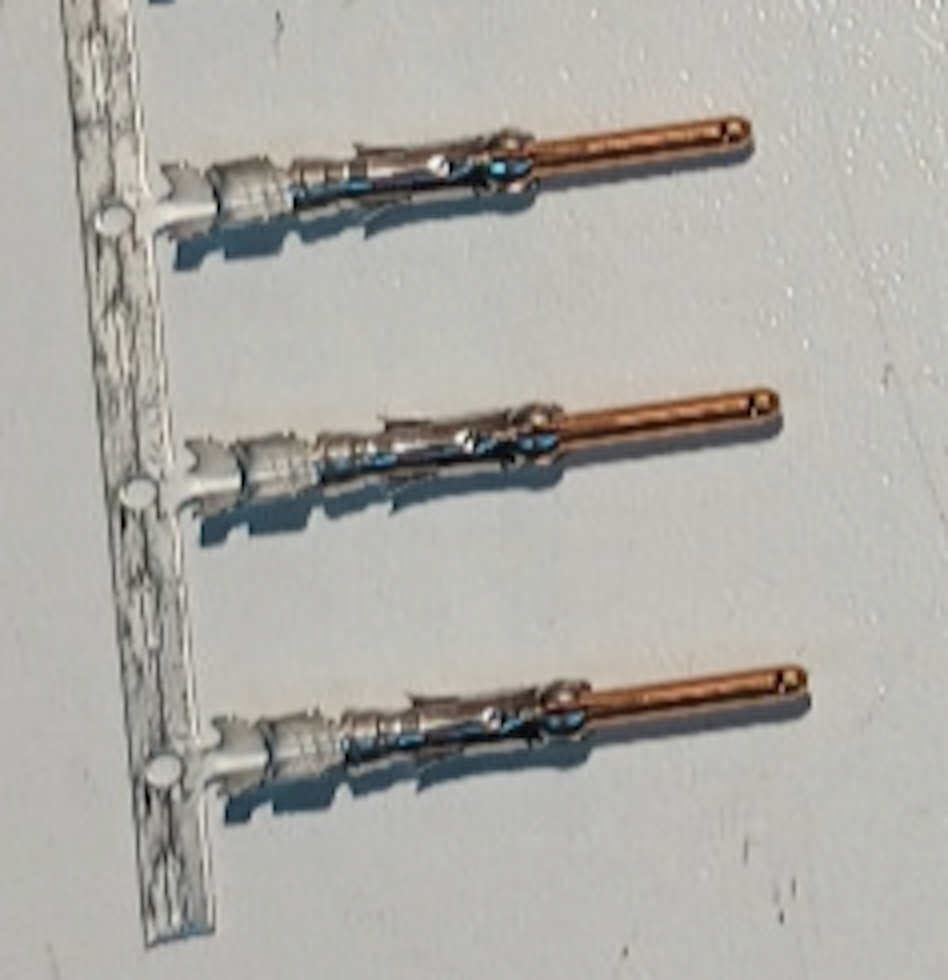

AMP connector standard	AMP MFJ 870597 (male rotor end)	male pins	MFJ-870596 male kit	MFJ-870596 male on rotor	MFJ-870597 female kit
MFJ-870597 female kit2	MFJ-870597 female	pigtail conversion kit
