BP Solar 222-FSR BP Solar 222-FSR:


I picked this panel up in 2025 for $5 as part of a solar education display that our local museum was disposing.

Its a "BP Solar" brand, which looks like they folded in 2011, so it's pretty old. Looks okay though. It's a
pretty small panel, but is weatherproof with a solid frame, and I'd guess it's rated about 30w.

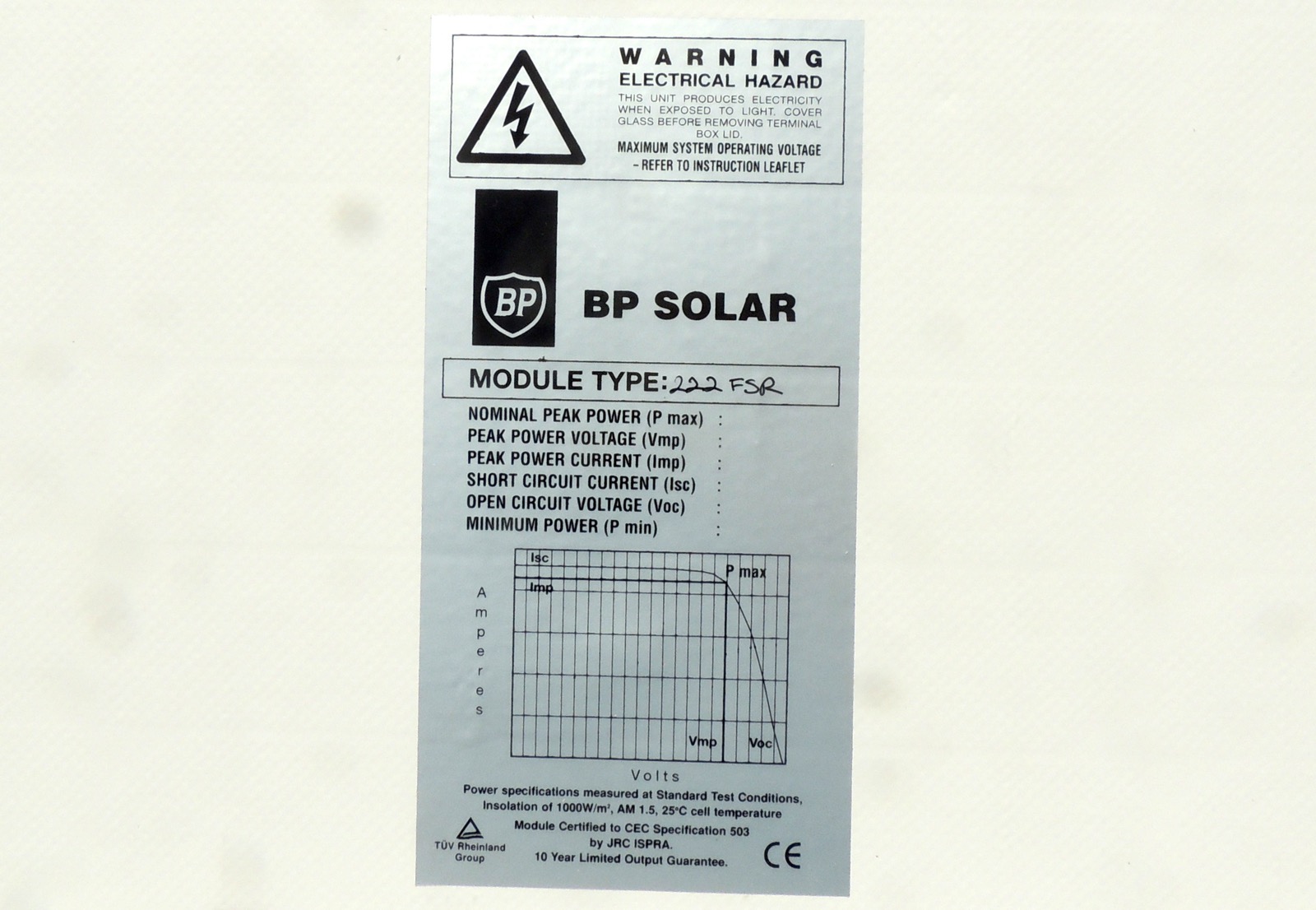

It measures 21"w x 17.5"h x 1.75"d. The generic template on the back (with the hand-written model number)
suggests this was a demo or maybe a blem, sold at a discount for demonstrational purposes rather than energy

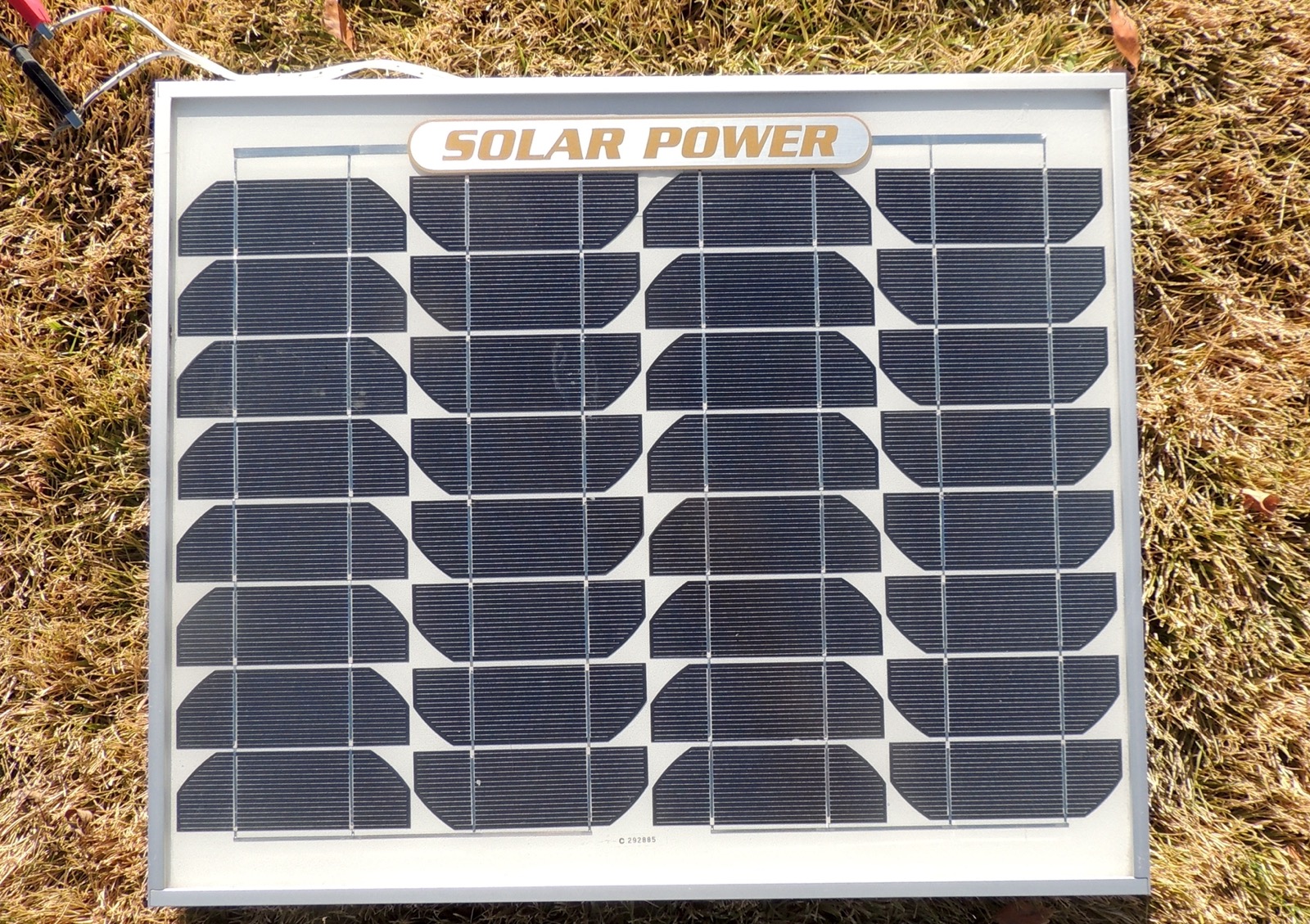

production. The "Solar Power" label on the front was probably added for the display.

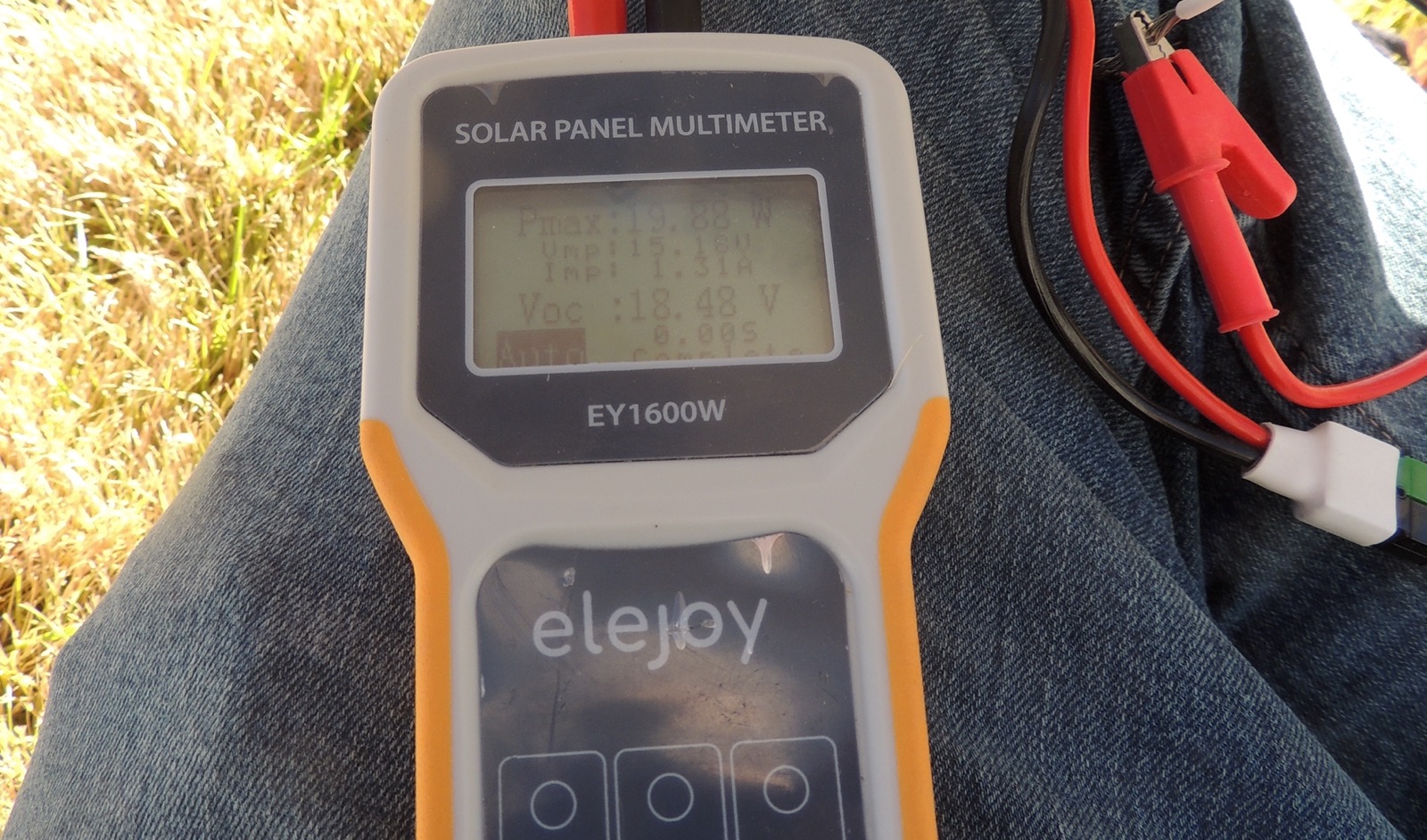

I connected it to my solar tester and got the following specs: (Nov 23, 2pm)

  Pmax: 19.88w
  Vmpp: 15.18v
  Impp:  1.31a
  Voc:  18.48v




BP20 solar SX-320 (similar).pdf


  back label
  front view
  panel analysis closeup
  panel analysis Nov 23 2pm
