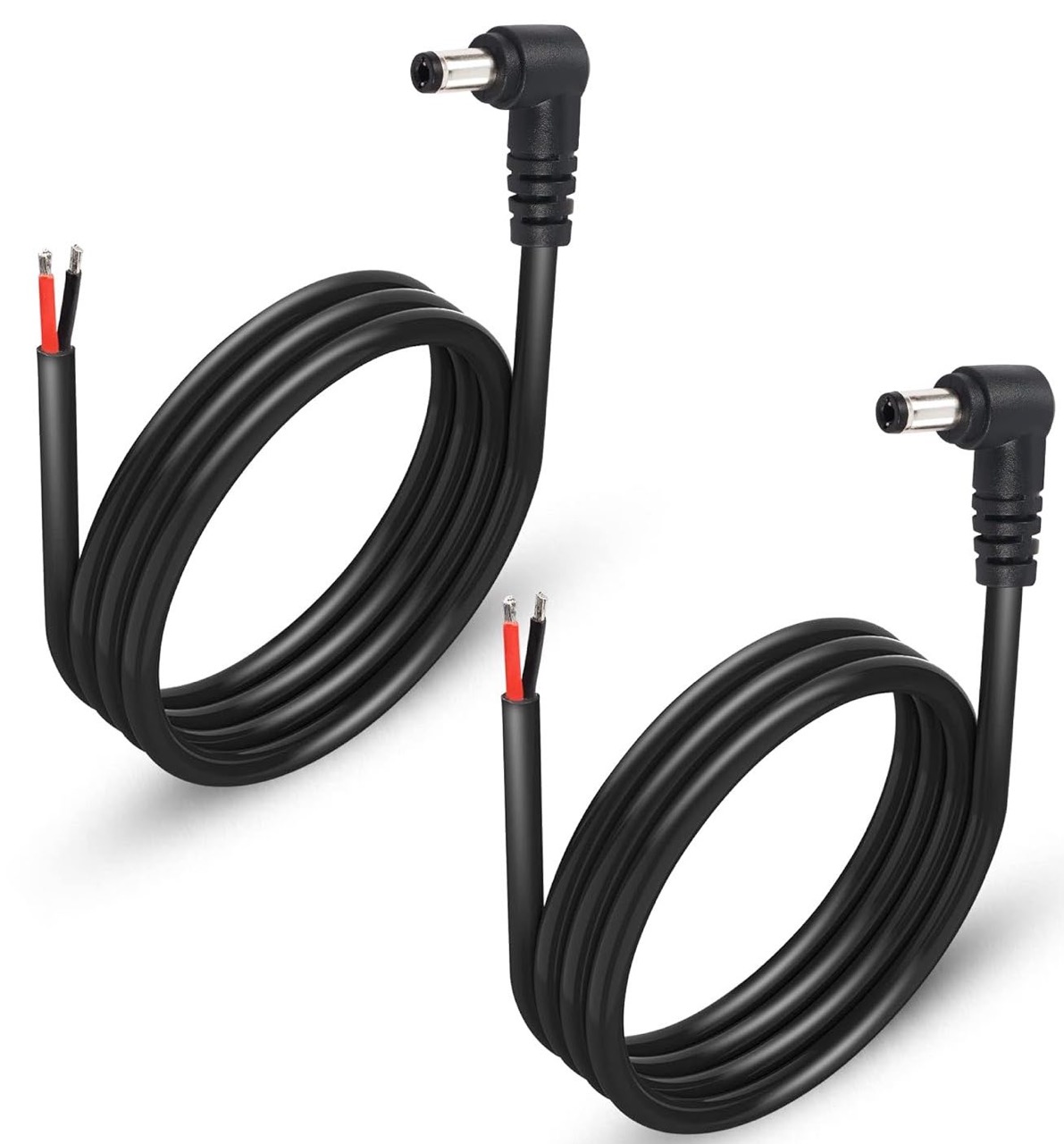

barrel pigtail:

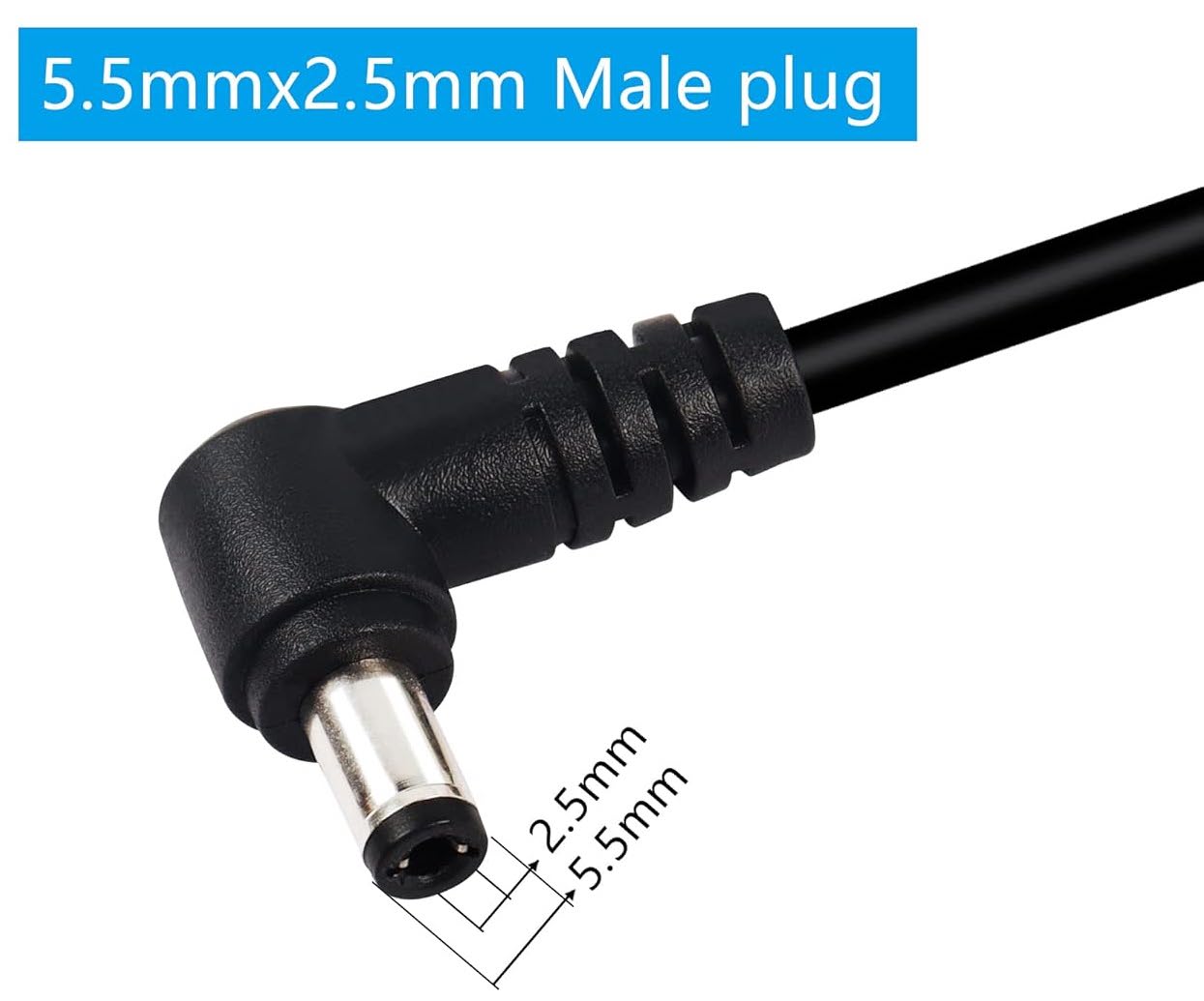

Barrel connectors come in a wide variety of widths and also pin sizes. For 12v, 5.5mm OD / 2.5mm ID is the
most common, although 2.0mm ID is also seen frequently. The thinner 3.5mm OD are also becoming common though,
probably due to their smaller size.



3.5mm barrels


5.5mm barrels
