LM35 temp sensor:




LM35 is a cheap little temp sensor in a TO-92 package. Its three wires makes it look identical to a common
small transistor. It has an internal sensor with calibrated DC output. Range is -55 to +150 degrees C, with
10 millivolts for each degree. Also has a very broad power supply range.

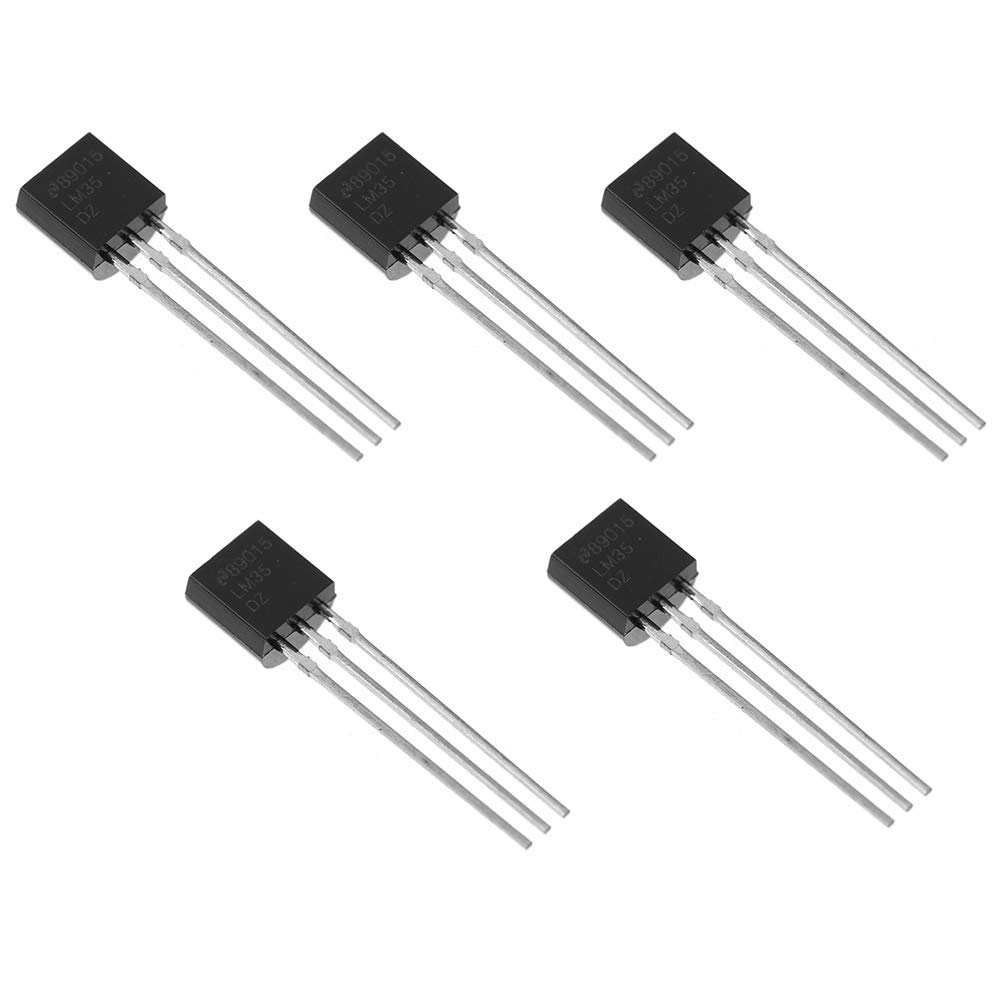

LM35 (5pcs for $10 at Amazon)


LM35 datasheet.pdf (1345 KB)

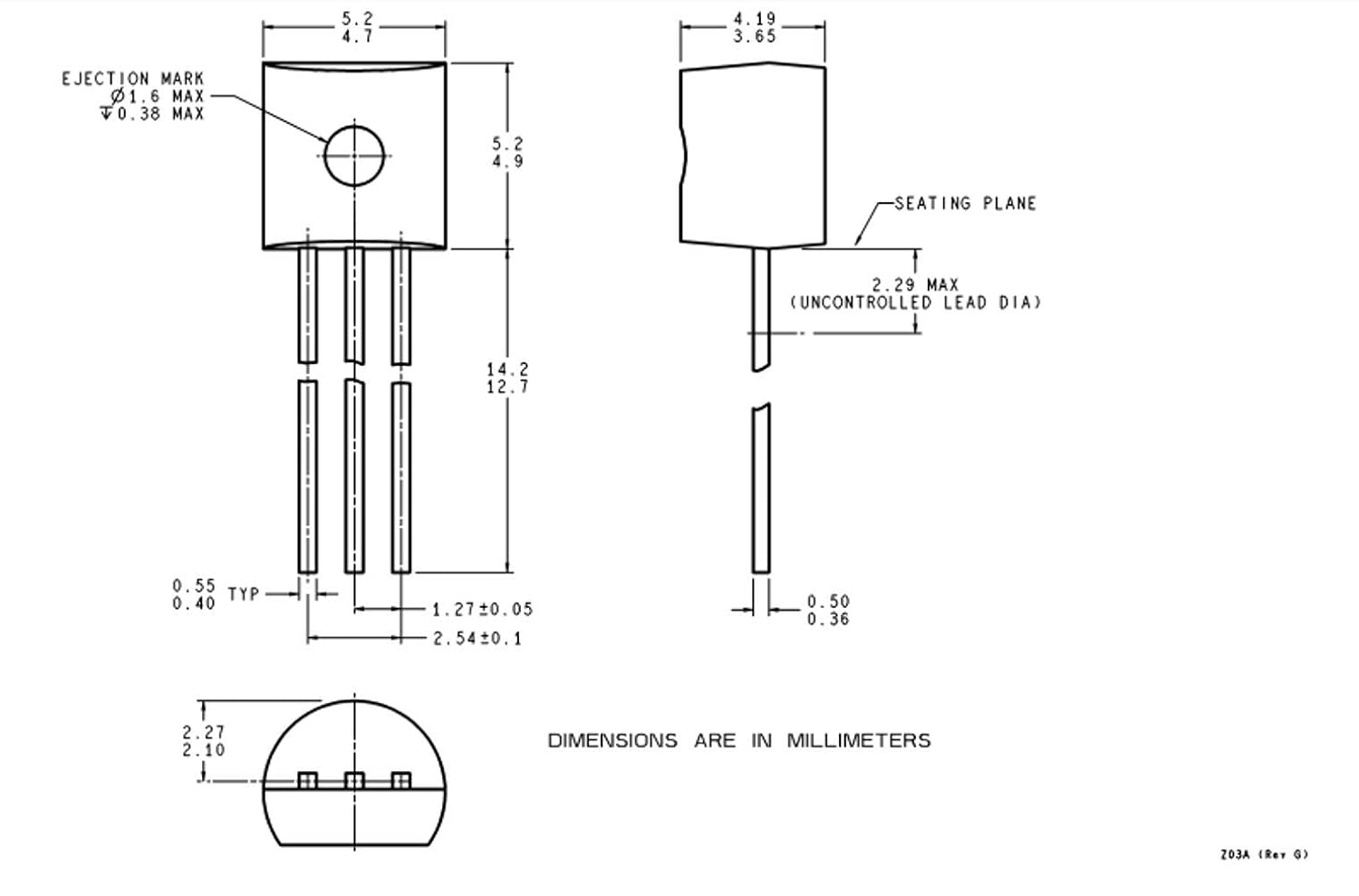

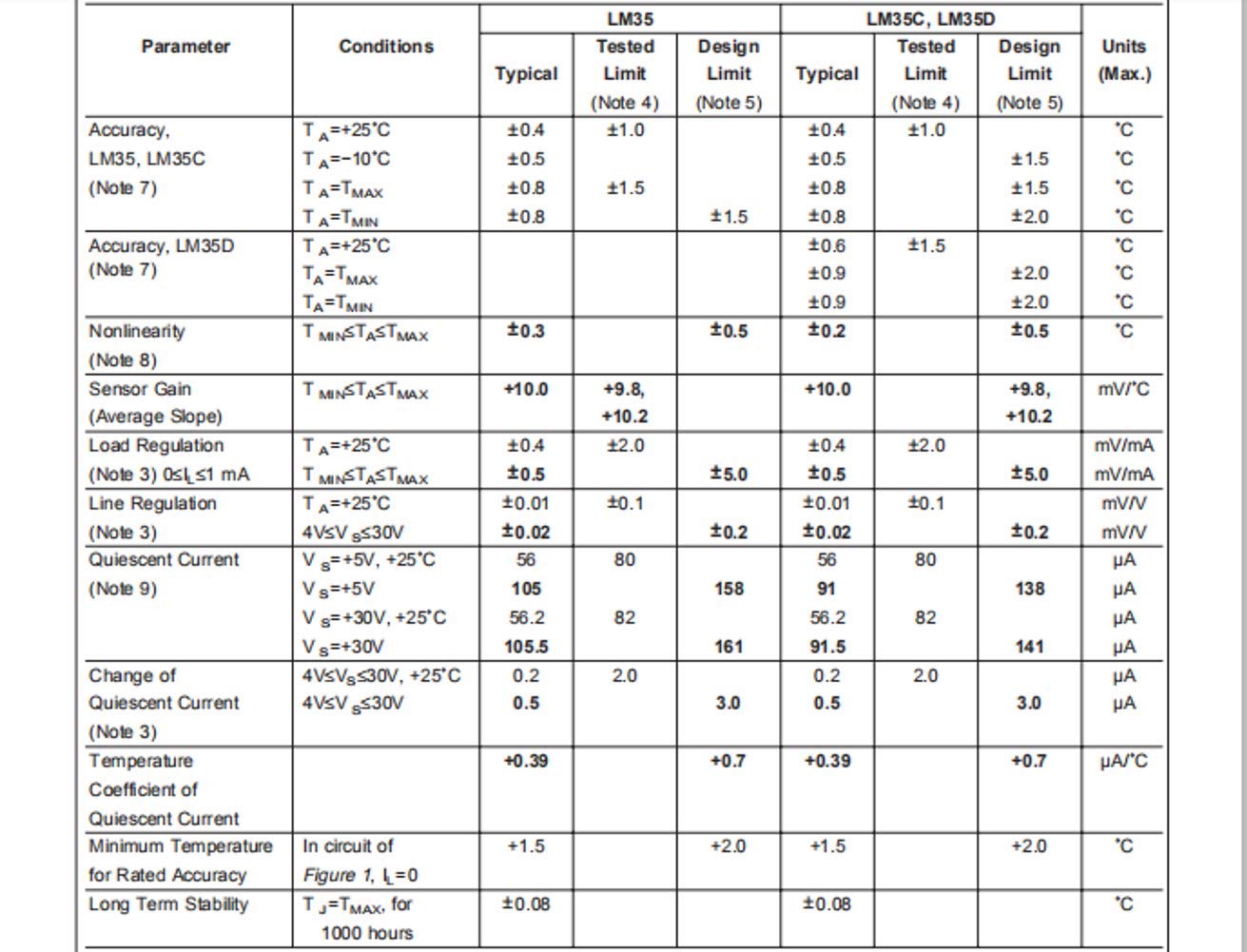

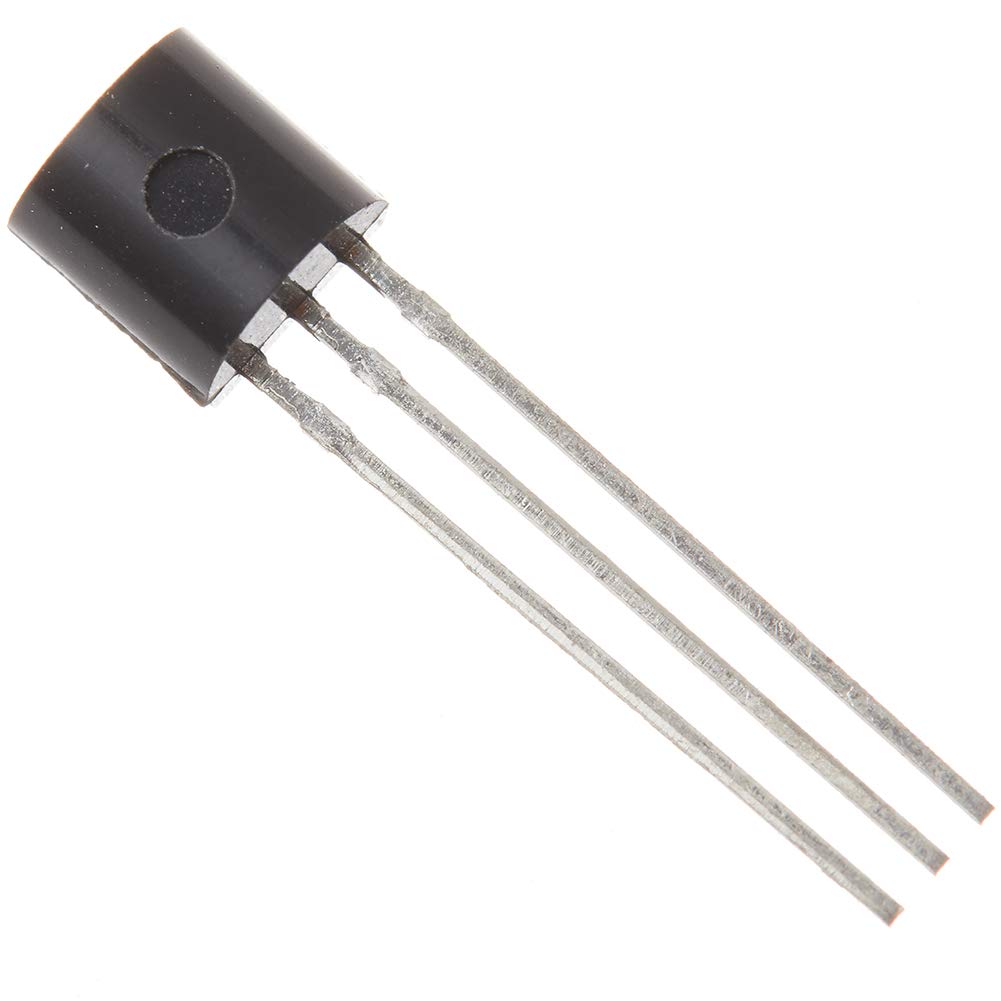

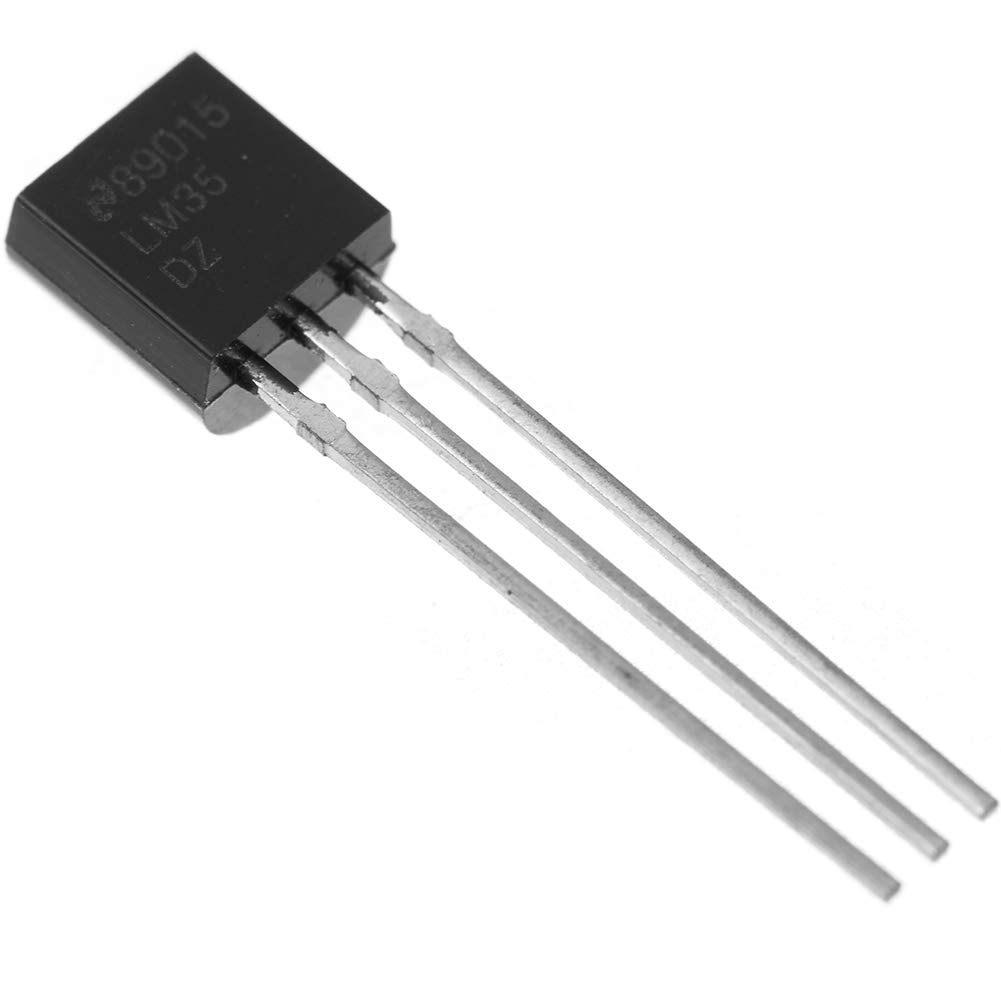

back	dimensions	front	LM35 5pcs	specs
