back to constructing my own

1 case, heat sink, and fan:

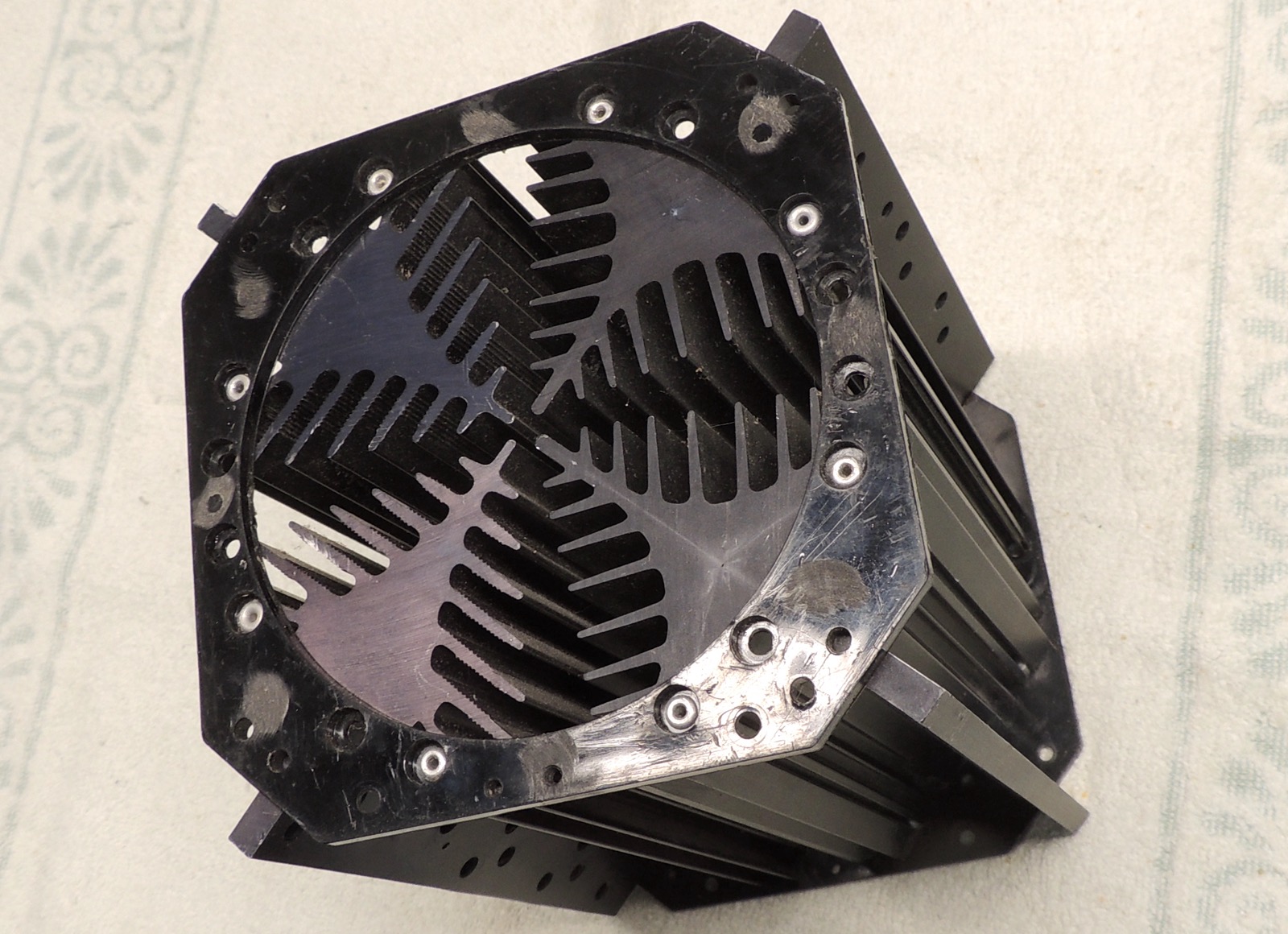

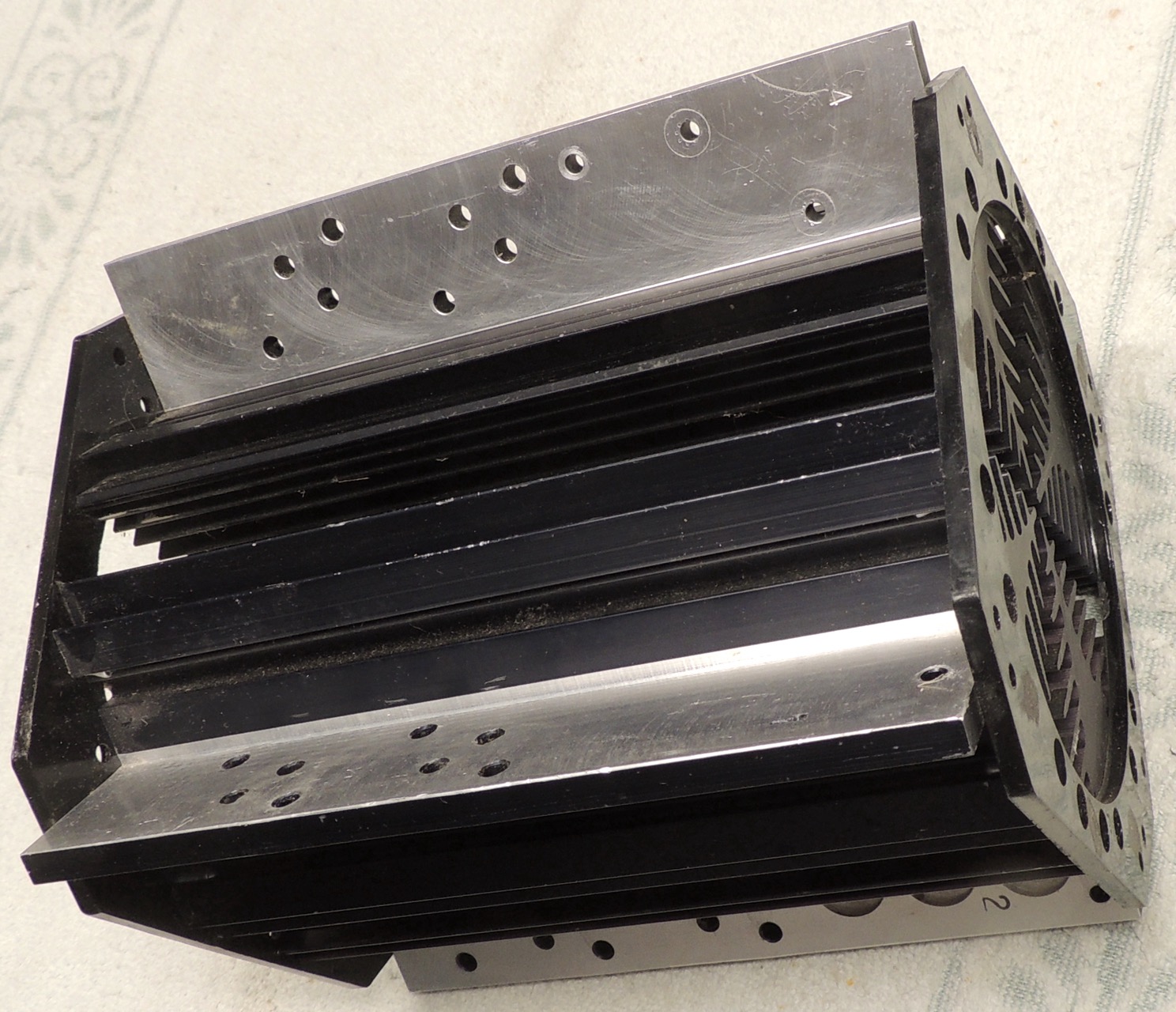

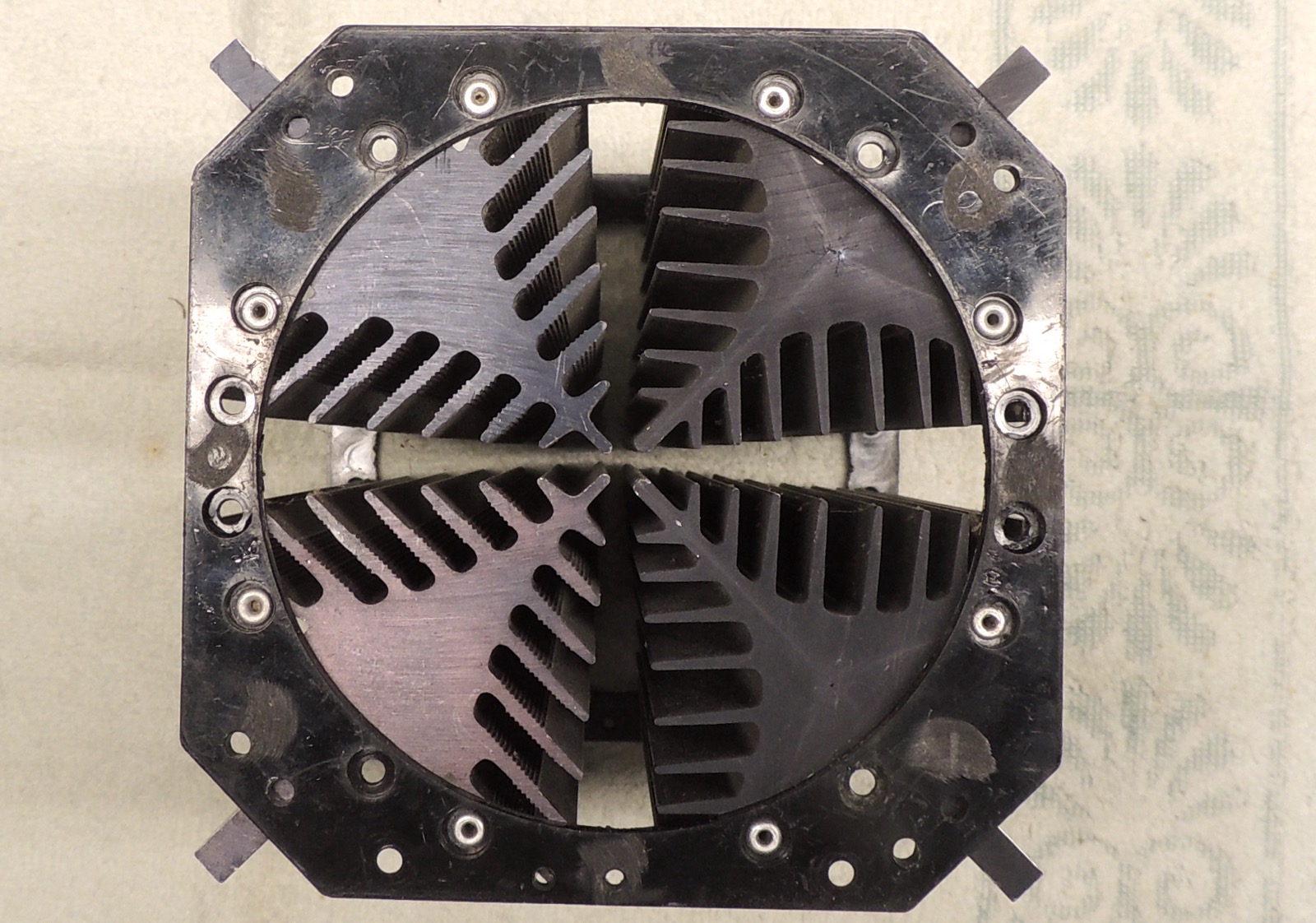

I found a compact heat sink at a hamfest awhile ago, and I'm going to try to fit it inside the case of an old

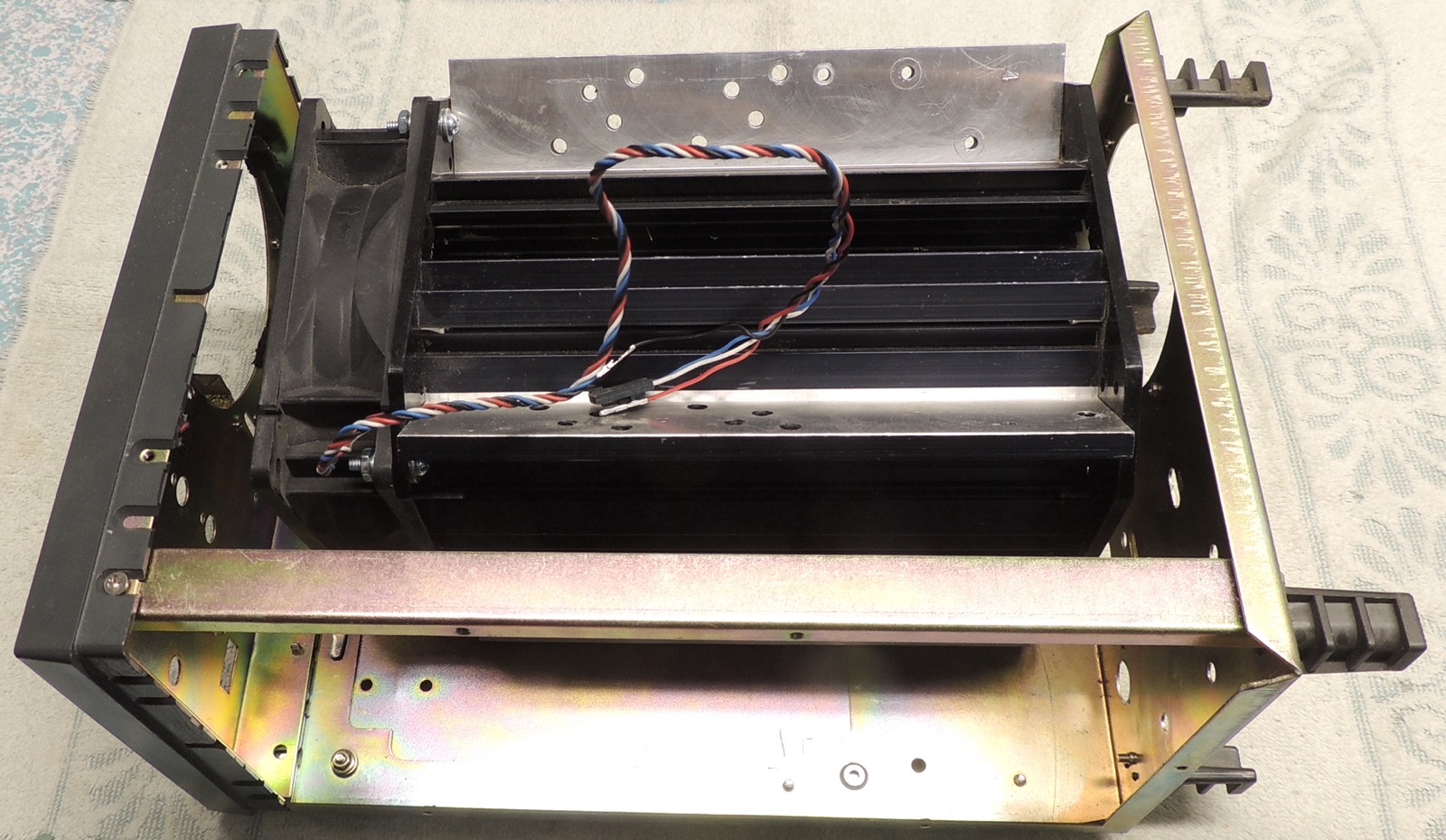

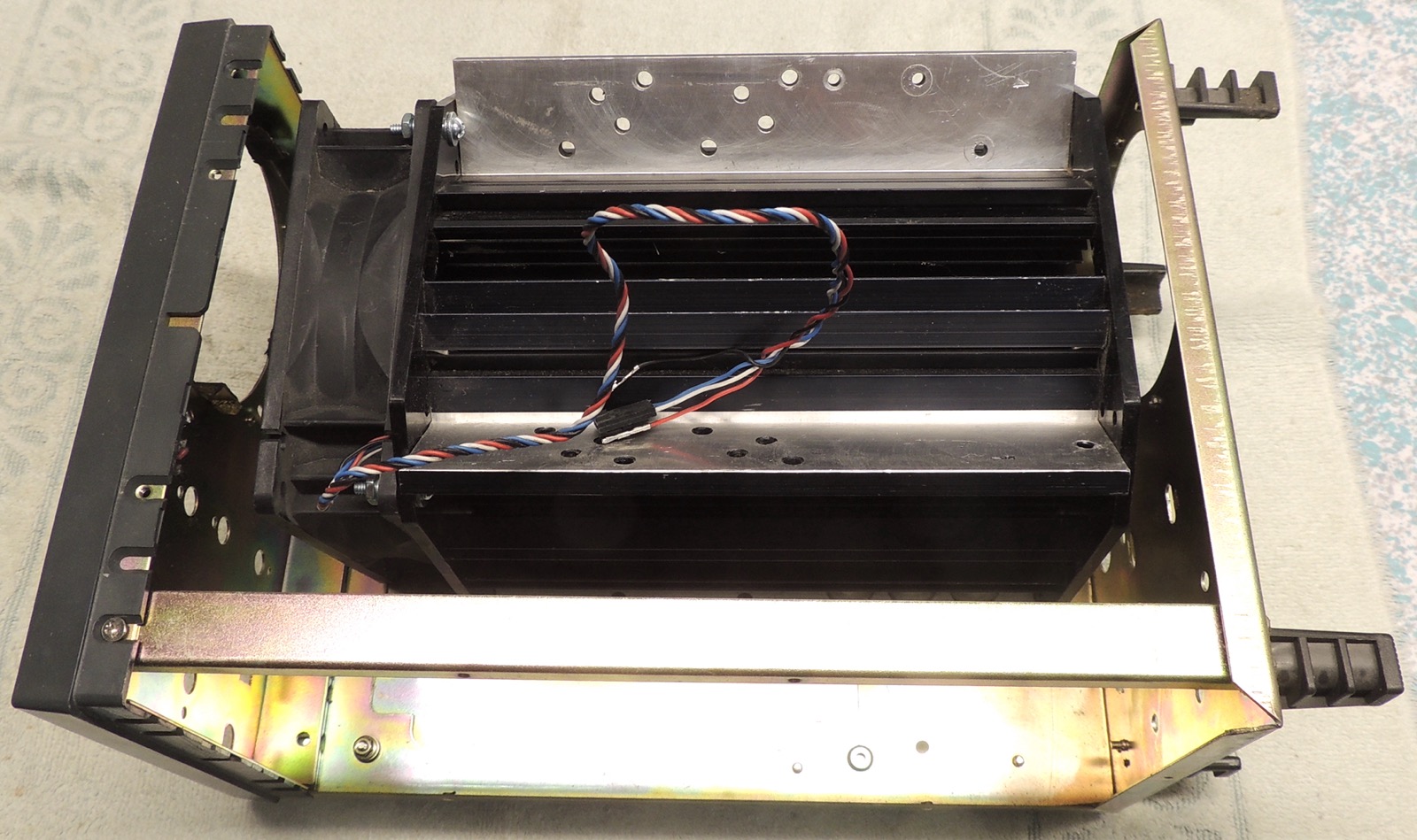

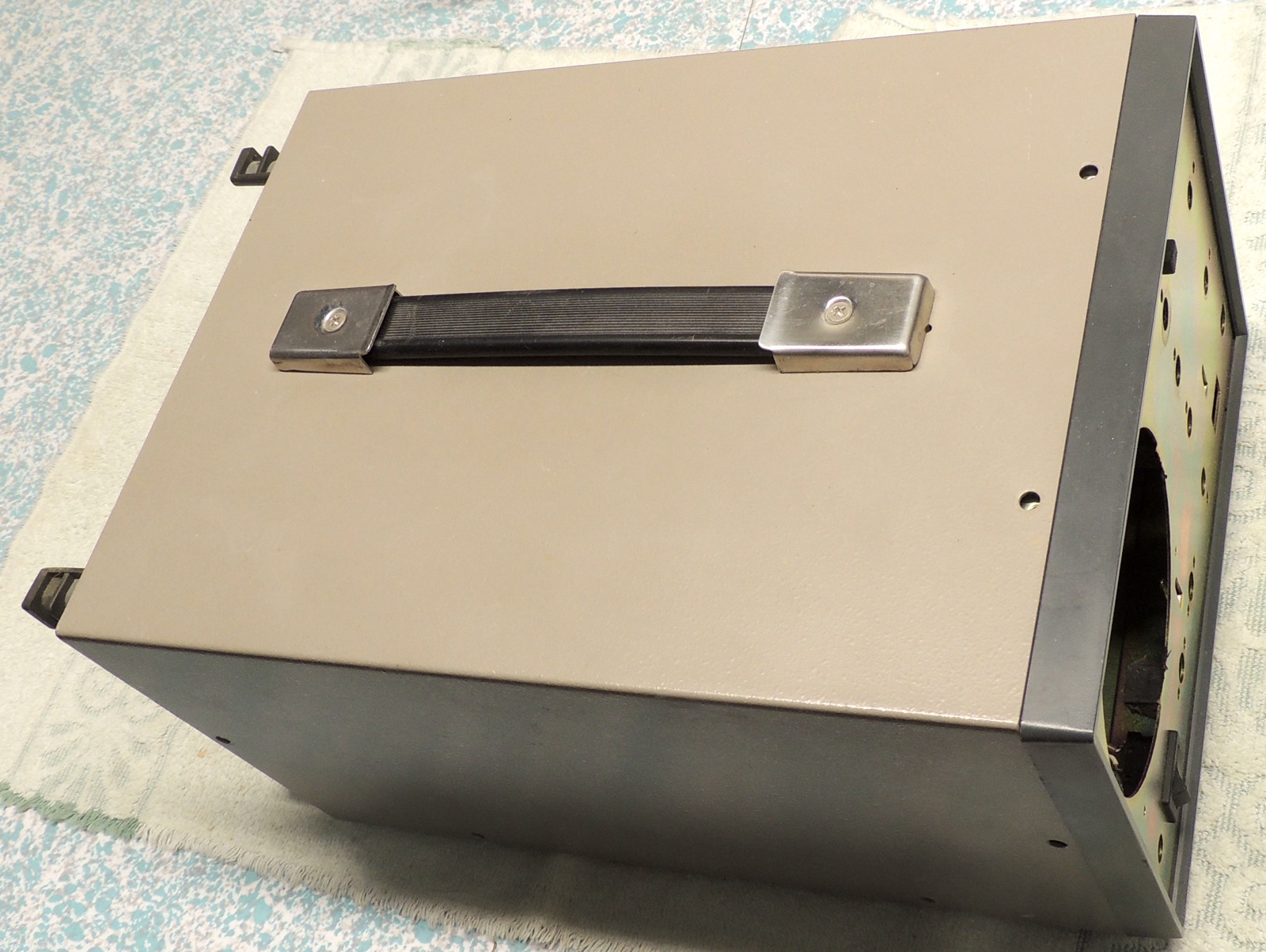

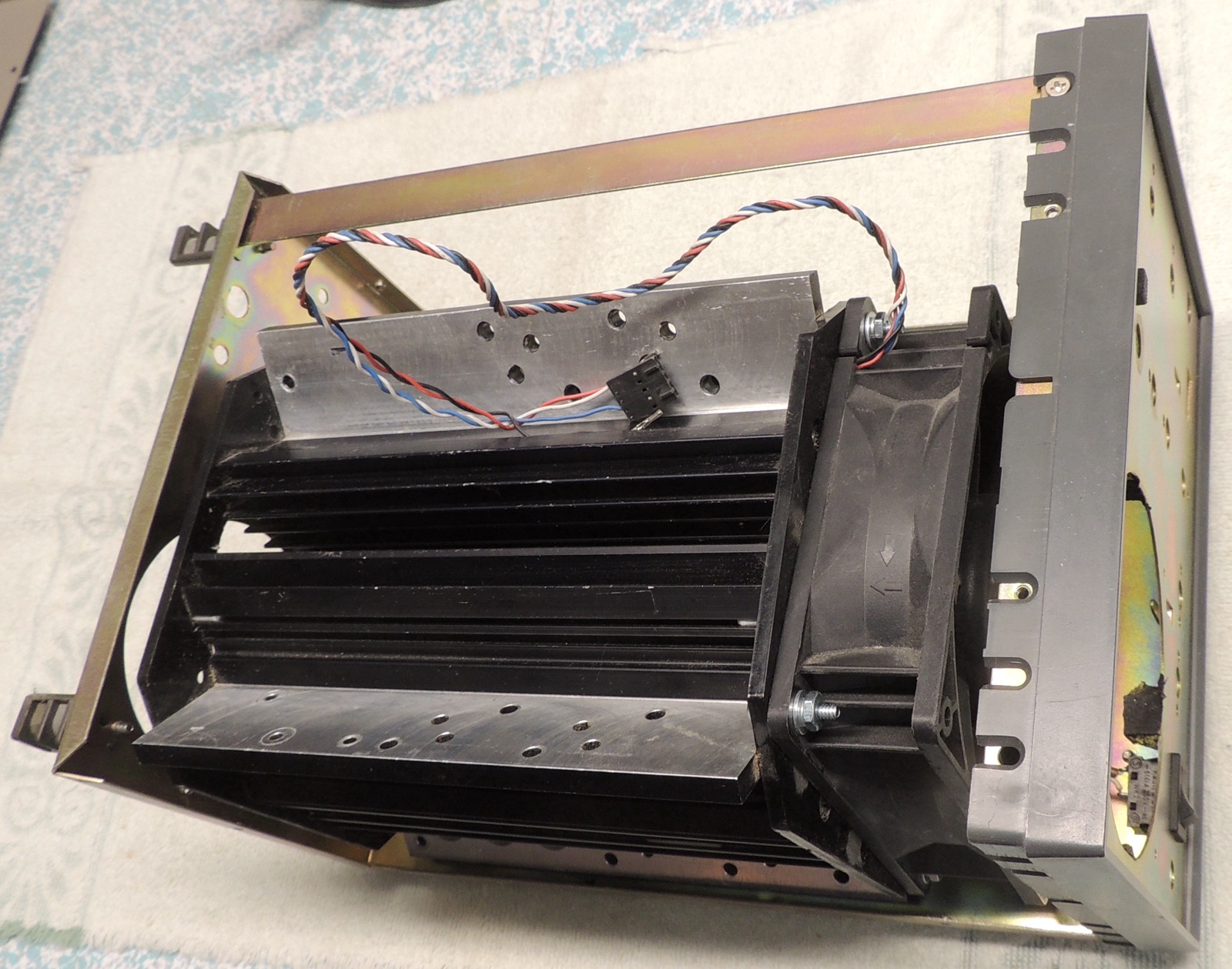

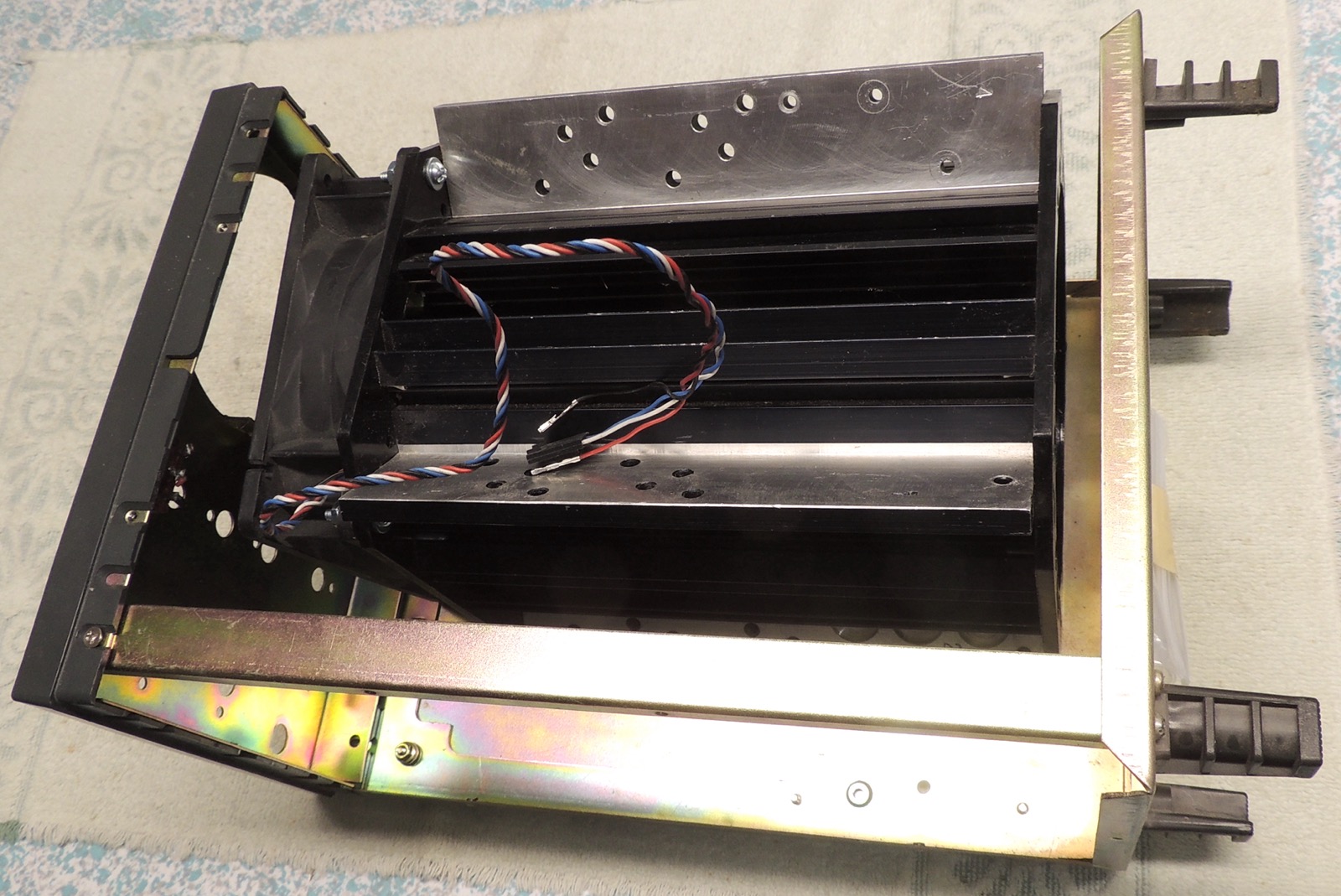

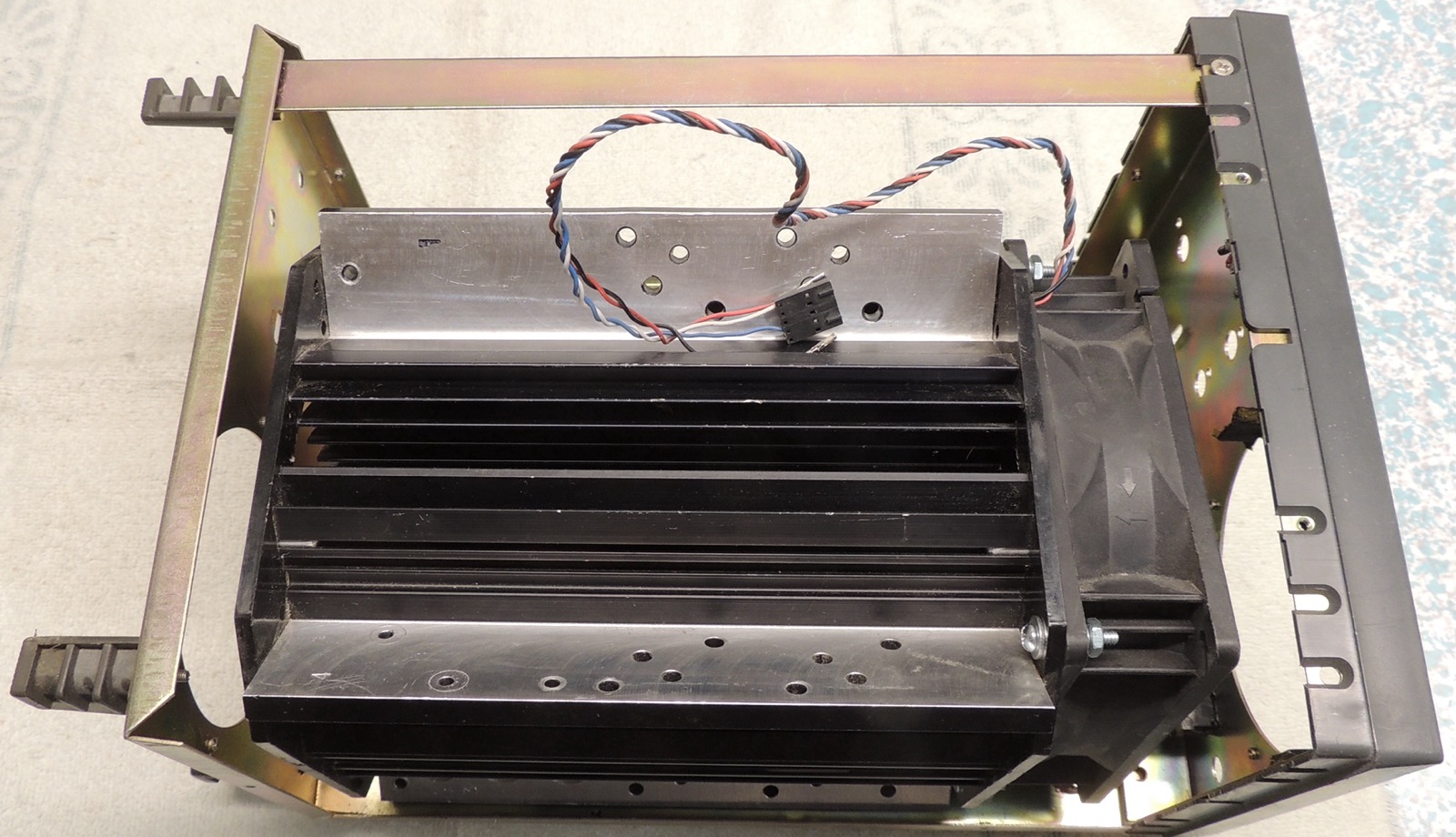

portable oscilloscope. I've got the case gutted and am fit-testing it (along with fan) and it's looking good.

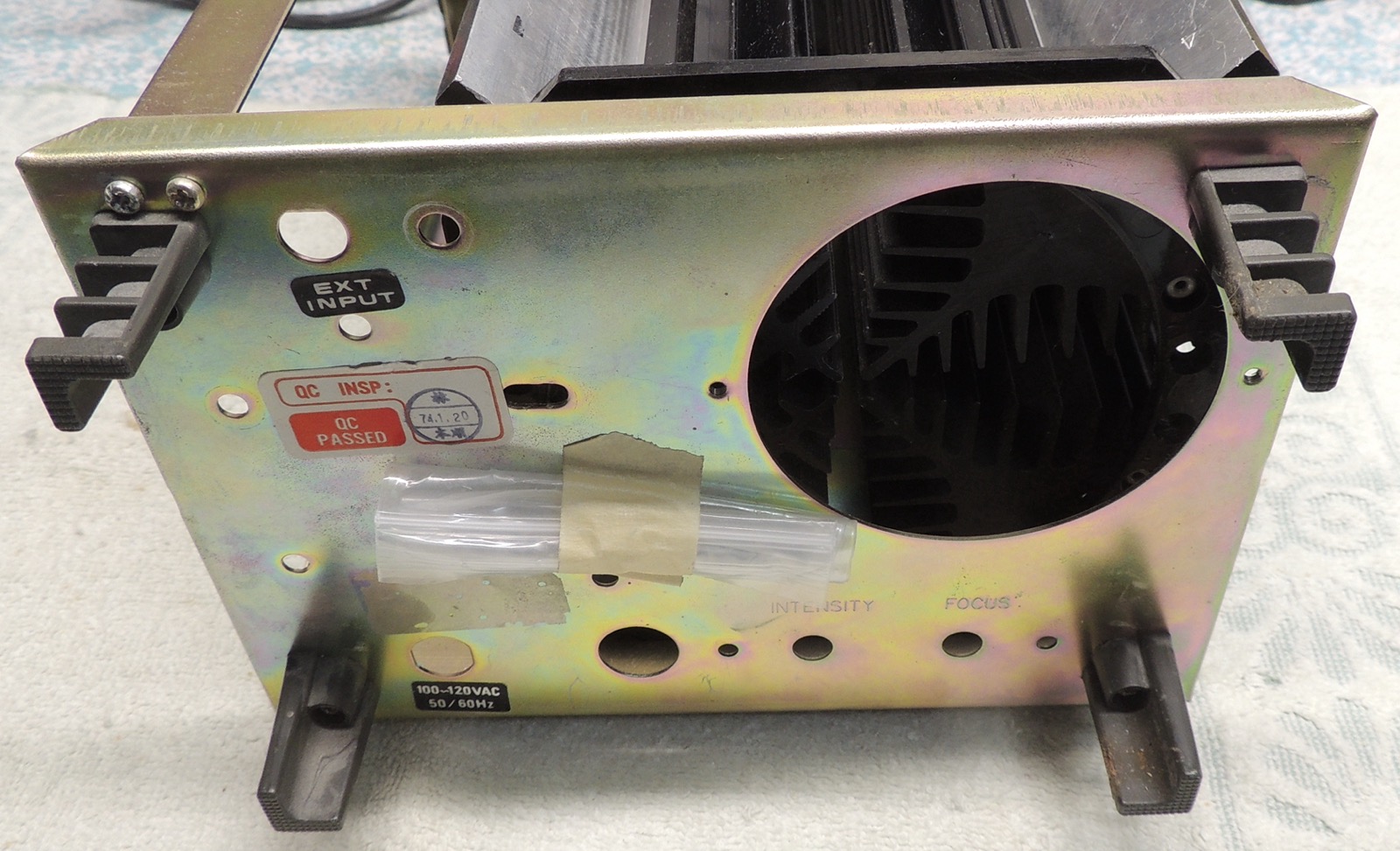

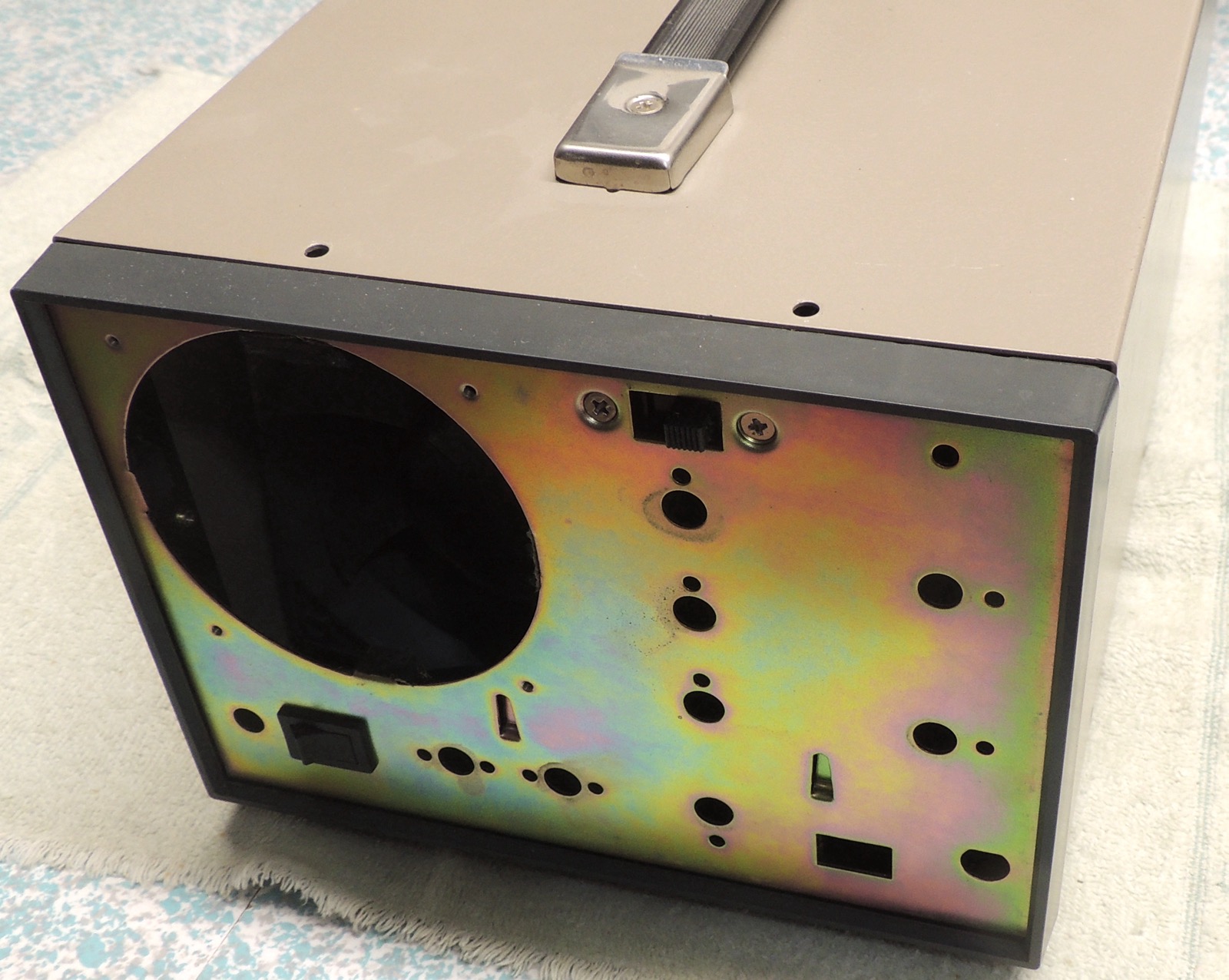

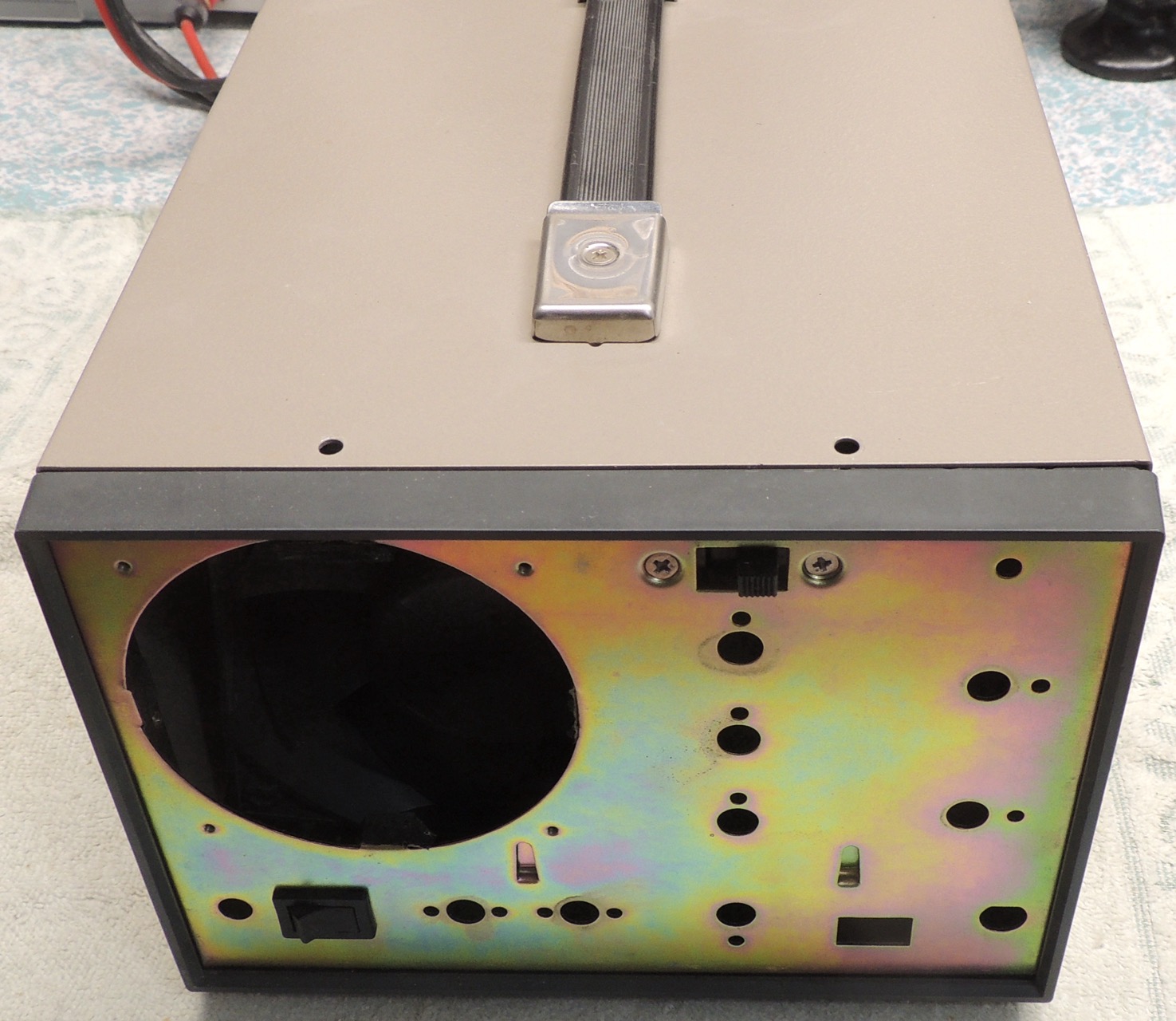

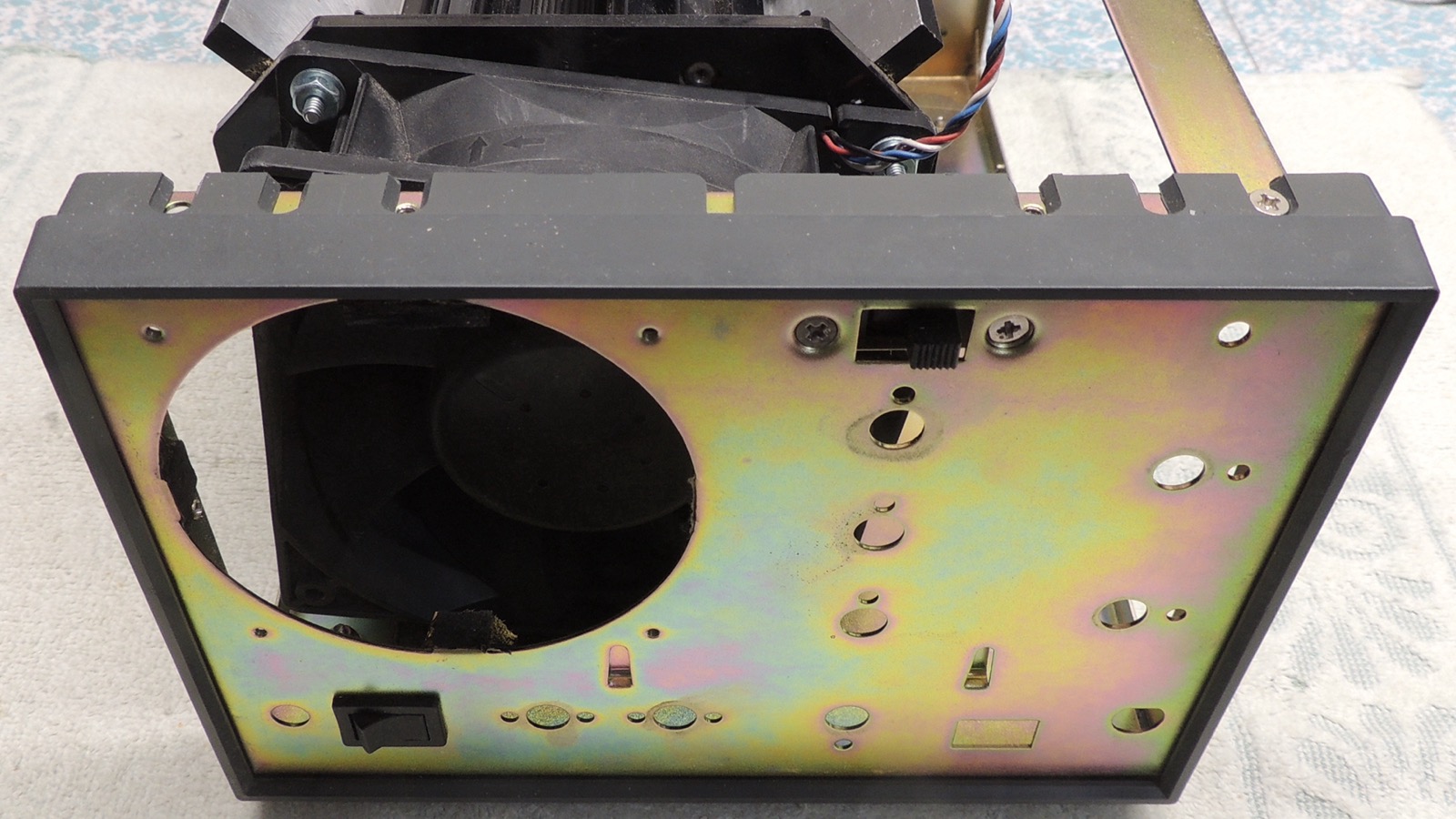

The round holes in the front and back are for the scope face and rear access hatch for the scope. I'll need
to enlarge them a bit for better airflow, but this is just a fit-test.
